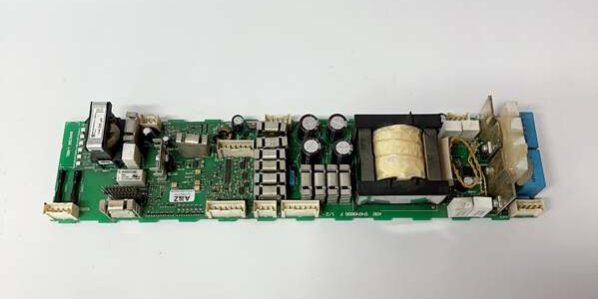

Product Core Brief
- Model: DSMB-01C
- Brand: ABB
- Series: DCS800 DC Drive Spare Parts
- Core Function: Generates precise thyristor trigger pulses and processes drive digital/analog feedback signals.
- Product Type: Drive Trigger & Control PCB Board
- Key Specs: 24 V DC backplane supply | 8 digital input + 8 digital output | 500 V galvanic isolation Condition: New Original (New Surplus)
Product Introduction
The ABB is a core control PCB built exclusively for ABB DCS800 series DC motor drive cabinets. It delivers timed firing pulses to the unit’s power thyristor stack.Well, technically it shares rack mounting dimensions with DSDX451, yet the ABB integrates built-in signal conditioning absent on simpler interface boards. Its internal pulse timing accuracy holds ±0.2 µs under full 100 % drive load.
Key Technical Specifications
| Parameter | Value |
|---|---|
| ABB Part Code | 64691929 () |
| Primary Application | DCS800 DC variable speed drive |
| Supply Voltage | 24 V DC (18–30 V wide input range) |
| Typical Power Draw | 8 W maximum with all signal ports active |
| Digital I/O Count | 8 DI / 8 DO logic channels |
| Galvanic Isolation Rating | 500 V AC between power and signal circuits |
| Trigger Pulse Precision | ±0.2 µs timing error at rated operating load |
| Operating Temperature | -25 °C to +70 °C continuous operation |
| Storage Temperature | -40 °C to +85 °C non-operating |
| Enclosure Protection | IP20 when fully seated in drive cabinet slot |
| Physical Dimensions | 120 mm × 100 mm × 60 mm |
| Unit Net Weight | 0.95 kg |
| Critical Connectors | X1 ribbon signal header, fiber optic communication port |
| Supported Drive Software | DriveWindow 2.5 and newer firmware builds |
Quality Control Process
- Incoming Verification: Match each board serial number to ABB factory spare part manifests to filter counterfeit stock. Full visual sweep checks for cracked PCB traces, corroded header pins, or melted solder joints (—minor factory conformal coating blemishes do not trigger rejection).
- Live Functional Test: Install the board inside a calibrated test drive rack, feed regulated 24 V backplane power, and run power-on self-test. Complete fiber optic comms handshake with DriveWindow software, then execute a 24-hour loaded motor test with hourly thermal logging.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to validate isolation resistance; all signal circuits must read above 10 MΩ. Confirm cabinet ground lug continuity with a Fluke 115 digital multimeter.
- Firmware Verification: Read and log the onboard firmware revision via DriveWindow, capture high-resolution photos of gain/reset potentiometer positions for field calibration reference.
- Final QC & Packaging: Clean ribbon header pins with isopropyl alcohol, seal the board inside a shielding anti-static bag, and attach a dated QC Passed sticker with assigned test technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: drives running firmware v1.9 or older cannot decode trigger signal data from newer ABB firmware v3.3. Upgrade drive software or source legacy revision hardware.
- DIP Switch / Jumper Misconfiguration: Factory potentiometer default gain settings do not match field-tuned drive parameters; misaligned reset/gain pots create motor speed overshoot during load shifts.
- Terminal / Cable Incompatibility: X1 ribbon cable pinouts differ between ABB and DSDX451 replacement boards. Route fiber optic cable slack to avoid physical strain on fragile Toslink ports.
- Power Supply Mismatch: Calculate total cabinet load including fan, display, and auxiliary boards then add 20 % power headroom to the 24 V PSU. Undervoltage supply distorts thyristor trigger timing entirely.
- ESD Damage: Static discharge risk spikes below 30 % relative humidity in dry plant facilities. Always deploy an anti-static mat before board extraction; bare contact on trigger circuits destroys pulse generation logic instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → : Direct — Exact pin, trigger, and fiber comms drop-in replacement
- → DSDX451 : Needs Adaptation — Lacks thyristor pulse hardware, full signal rewiring required
- → DP820 : Incompatible — Pulse counter I/O hardware cannot generate power firing pulses
- → DO910 : Incompatible — Digital output module has no drive control logic
Benchmarks
- Trigger cycle resolution: 0.2 µs (simulated 100 % DC motor load)
- Comms throughput: 5 Mbit/s (fiber optic internal drive bus)
