Product Core Brief

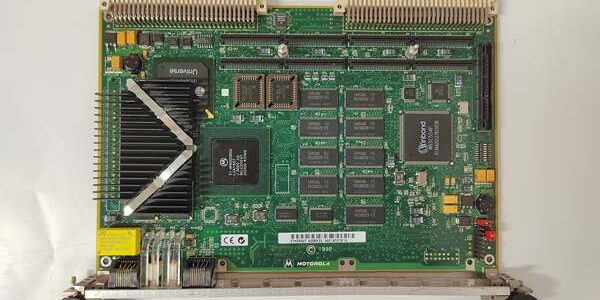

• Model: MVME2434 (MVME2400 series flagship PowerPC VME SBC, variants: -1 / -3)
• Brand: Motorola Computer Group (later NXP / Emerson Embedded)
• Series: 6U VME64 Single Board Computer for mission-critical real-time embedded control, widely deployed as master system CPU for LAM TCP9400 / Kiyo 300mm plasma etch cluster tools
• Core Function: Acts as top-level system master controller; executes wafer etch recipe sequencing, synchronizes VIOP motion/analog I/O boards, processes MFC gas & thermal sensor telemetry, hosts tool HMI communication, manages VME backplane interrupts and DMA data transfer, runs real-time process control OS (VxWorks) for semiconductor fab equipment.
• Product Type: Standard 6U Eurocard VME64x dual P1/P2 rear connector printed circuit board, passive copper heat sink, dual PMC mezzanine expansion slots, front-panel industrial I/O ports
• Key Specs: MPC750 PowerPC CPU (233/350/400/450MHz) | 32–512MB ECC SDRAM | Dual PMC PCI expansion | VME64 master/slave DMA | <5μs deterministic interrupt latency
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock reserved for installed LAM 300mm etch tool fleets and industrial VME automation systems.

Key Technical Specifications

Core Compute

• Processor: Motorola MPC750 PowerPC RISC, multiple speed grades (350MHz / 400MHz most common for semiconductor tools)
• Cache: 32KB L1 Instruction + 32KB L1 Data; 1MB dedicated backside L2 cache
• Memory: Onboard ECC-protected SDRAM, factory config 32/64/128/256/512MB; ECC detects/corrects single-bit memory errors to avoid recipe corruption
• Non-Volatile Storage: Up to 8MB onboard Flash for PPCBug firmware + OS boot image; 8KB battery-backed NVRAM + RTC for recipe offsets & calibration data storage

Bus Architecture

• VME Interface: Full VME64 / VME64x A16/A24/A32 addressing, D8/D16/D32/D64 data, master/slave DMA burst up to 80MB/s, full VME system controller capability
• PCI Expansion: Two independent 32-bit PMC (PCI Mezzanine Card) slots for custom analog, serial, fiber, or motion I/O expansion

Integrated I/O Interfaces

• Ethernet: Single 10/100BASE-TX isolated RJ45 front panel port (32-bit DMA for high-speed fab host communication)
• Serial: 1 debug RS232 console port + dual multi-mode RS232/422/485 serial channels for MFC/node board Modbus telemetry
• Storage: Integrated SCSI-2 DMA controller for local recipe disk storage
• Auxiliary: Centronics parallel port, six 32-bit programmable timers + hardware watchdog fail-safe timer

Electrical & Environmental

• Power Input: Standard VME backplane +5V / ±12VDC; typical power draw 15–20W full load
• Operating Temp: Commercial grade 0°C ~ +70°C (fab cabinet standard); industrial extended -40°C ~ +85°C variant available
• Isolation & EMI: Multi-layer segmented ground planes, ferrite filtering to suppress 13.56MHz chamber plasma RF interference
• Mechanical: 6U VME Eurocard form factor, dual ejector latches, passive heat sink (no fan to eliminate fab particulate contamination risk)
• Reliability: MTBF ≥95,000 hours under continuous 24/7 high-volume fab 24/7 operation; conformal coating optional for harsh chemical cabinet environments
• Compliance: CE, UL, SEMI S2 certified for front-end semiconductor wafer processing equipment

Product Introduction

MOTOROLA is the standard master VME single board computer integrated into all LAM TCP9400 and Kiyo 300mm plasma etch cluster tools, serving as the central compute hub coordinating all chamber subsystems: wafer transfer robot motion (VIOP III boards), ESC index stage control, gas MFC distribution, thermal RTD monitoring, and safety interlock logic.

Its core differentiator is PowerPC real-time deterministic processing, ECC error-correcting memory, and dual PMC expansion for custom fab I/O add-ons. Generic replacement VME SBCs lack ECC memory and optimized VME DMA timing, leading to recipe memory corruption, motion synchronization jitter, and wafer batch scrap under high plasma RF noise conditions. The board supports controlled hot-swap service without full chamber vacuum/RF shutdown during scheduled preventive maintenance cycles.

Firmware & Software Compatibility

• Supported Real-Time OS: VxWorks (primary for LAM etch tools), pSOS+, LynxOS, QNX, Linux embedded
• Onboard Firmware: PPCBug diagnostic/boot monitor (factory pre-flashed on onboard Flash); supports VME memory mapping, PMC configuration, full board self-test diagnostics
• LAM Tool Software Match: Compatible with Lam PCS v6.0 ~ v8.4 (TCP9400 / Kiyo etch platforms); PCS v8.6+ newer tool software requires updated MVME2400 series CPU variants
• Upgrade Risk Note: Downgrading tool PCS below v6.0 breaks VME handshake communication with VIOP motion and gas I/O subboards; always match SBC firmware revision to chamber software release before PM replacement work
• OEM Firmware Access: Motorola/NXP restricted official PPCBug firmware distribution to certified fab service partners post-2023; full backup of chamber recipe & calibration NVRAM data is mandatory prior to board swap

Frequently Asked Questions

1. Can I remove the master CPU while the etch chamber remains pressurized and RF generators active?VME buffered bus logic prevents permanent backplane I/O damage during hot-swap, but fully vent chamber vacuum, disable all 13.56MHz RF power supplies, and engage cabinet safety lockouts before extraction. Live plasma RF noise corrupts NVRAM-stored recipe calibration offsets and motion axis tuning data. Always complete a full chamber parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement for this legacy VME master board?Motorola/NXP discontinued production, limited New Surplus factory stock is retained for semiconductor fab aftermarkets. Third-party refurbished units often use uncertified generic memory ICs and skip full 13.56MHz RF noise thermal cycling validation; refurbished boards require a full 48-hour VME backplane load + recipe runtime bench test before production chamber installation.
3. Will swapping the erase saved chamber recipes, motion axis profiles or MFC calibration offsets?All critical process tuning data, wafer motion trajectories, gas interlock thresholds and sensor scaling tables reside in the board’s battery-backed NVRAM flash. Complete a full chamber parameter export backup via the tool HMI before replacement to restore calibration data if VME communication handshake errors occur post-install.
4. What warranty coverage applies to New Surplus OEM vs refurbished units?New Surplus original factory stock carries a 12-month full functional warranty matching Motorola’s original industrial spare specification. Refurbished aftermarket assemblies only carry 3–6 month limited coverage; aged memory ICs and flash storage create mid-run memory corruption risk that scraps full wafer production batches.
5. Why is original New Surplus hardware higher cost than aftermarket refurbished substitutes?Original factory units retain factory-calibrated VME DMA timing tolerances, zero operating-hour thermal fatigue on PowerPC core & memory semiconductors, and full traceability to Motorola’s industrial component validation batches. Refurbished boards reuse aged PCBs, generic replacement memory chips, and skip plasma RF interference environmental cycling testing; hidden memory drift and bus timing defects lead to unplanned chamber downtime with far higher wafer scrap overhead than the upfront spare cost difference.
6. What cross-compatibility exists between and other MVME2400 series boards (MVME2432 / MVME2433)?MVME2432 / MVME2433 are lower-spec cut-down variants with reduced memory capacity and single PMC slot; they cannot act as full system master controllers for TCP9400/Kiyo etch tools due to limited VME DMA bandwidth and missing dual PMC expansion. Direct cross-replacement of with smaller series boards requires full chamber software reconfiguration and all motion/gas sensor re-calibration.
7. What routine maintenance interval applies to this master VME SBC in high-volume 24/7 fabs?Execute full PPCBug self-test, VME backplane DMA integrity, and NVRAM data validation every 6 months during chamber PM cycles. Replace the complete unit after 40,000 operating hours; onboard ECC memory and flash storage develop bit-error drift under continuous cabinet heat and long-term plasma RF exposure, degrading long-term etch process repeatability and wafer CD uniformity consistency.
