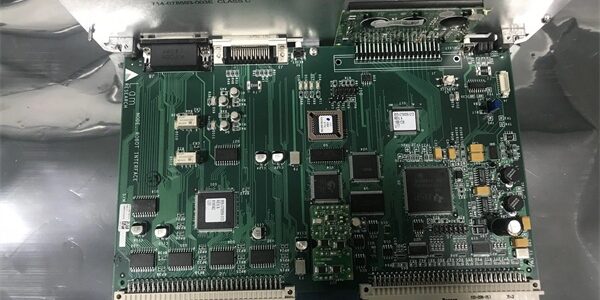

Product Core Brief

• Model: 810-068158-014 (Revision 014, predecessor to updated Rev 015 unit)
• Brand: LAM Research
• Series: Chamber Analog Signal Conditioning & Conversion Module for legacy 200/300mm plasma etch platforms
• Core Function: Convert raw chamber pressure, temperature, RF bias transducer signals to calibrated digital telemetry, execute closed-loop analog trimming, and transmit process data to the tool master VME SBC via RS485 Modbus RTU.
• Product Type: Compact front panel-mount analog I/O controller module
• Key Specs: Dual-range 0–10V / 4–20mA isolated analog I/O | Modbus RTU RS485 communication | ±0.1% full-scale input linearity
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock retained for older installed etch chamber fleets.

Key Technical Specifications

• Supported analog input ranges: 0–10 VDC voltage, 4–20 mA loop current
• Analog input conversion accuracy: ±0.1% FS (voltage); ±0.2% FS (4–20mA)
• Analog output precision: ±0.3% full scale for closed-loop trim setpoint drives
• Fixed signal sampling speed: 10 Hz per active measurement channel
• Communication bus: RS485 Modbus RTU, adjustable baud rate 9600–115200 bps with built-in CRC error correction
• Operating supply: 24 VDC industrial logic power, max 18 W continuous power draw under full channel load
• Channel isolation rating: 1500 VAC reinforced isolation separating field sensor wiring and internal logic circuits
• Mechanical mounting: Front panel mount with 100 mm center hole spacing; DIN rail adapter sold separately as accessory
• Operating ambient range: 10°C to +45°C inside process cabinet; storage range -20°C to +60°C, 8–85% RH non-condensing
• Vibration tolerance: ≤0.15 g (10–2000 Hz) for standard fab cabinet mounting
• Enclosure rating: IP50 dust-resistant plastic housing, no liquid ingress protection
• Recommended mounting fastener torque: 0.6–1.0 N·m for chassis mounting screws
• Compliance: CE, UL, SEMI S2 safety standard certified for front-end semiconductor processing equipment

Product Introduction

LAM 810-068158-014 conditions low-level analog transducer signals from pressure, temperature, and RF bias sensors on legacy Lam plasma etch chamber hardware. It linearizes uncalibrated raw sensor outputs and packages standardized telemetry for serial Modbus transmission to the rack’s master single board computer.

Its core differentiator is galvanic per-channel isolation paired with fixed synchronous 10 Hz sampling timing. Unisolated generic substitute hardware picks up high-amplitude plasma RF interference that generates erratic process value drift, degrading wafer etch CD uniformity and reducing production yield. The unit can operate standalone or parallel with chamber multiplexer submodules to expand available sensor input channel capacity.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Process Control Software (PCS): v4.5 through v7.6; PCS v7.8 and newer releases drop native Modbus register handshake compatibility with this older revision hardware.
• Recommended onboard firmware revision: Factory flashed Rev 014 build; the newer Rev 015 variant fixes sampling timing jitter present in this unit’s native firmware.
• Upgrade risk warning: Downgrading tool master SBC firmware below v7.1.0 breaks bidirectional Modbus polling with the unit. Match host controller and analog module firmware release families before chamber preventive maintenance.
• Firmware storage location: Onboard small non-volatile flash memory integrated on the module PCB. Export all sensor trim offsets and scaling tables via the tool HMI before executing any firmware flash operation.
• OEM constraint: Lam Research locked official firmware file distribution exclusively to certified fab service partners after 2023; validate local firmware archive files before field installation to avoid communication handshake failures.

Frequently Asked Questions

1. Can I remove the analog module while the process chamber stays pressurized and RF power remains active?Modbus bus buffering prevents full tool loss of sensor telemetry data, but isolate all field analog sensor wiring and disable chamber RF power supplies before extraction. Live plasma RF noise generates transient bus interference that corrupts sensor trim calibration offsets stored on the unit’s internal flash memory. Always complete a full parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement given this hardware is a legacy chamber spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncalibrated generic signal op-amps and skip full RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require a full 48-hour thermal load bench calibration before installation into production etch chambers.
3. Will swapping this analog unit erase chamber sensor scaling or analog trim parameters?All transducer range mapping and closed-loop trim offsets reside on the module’s onboard flash memory. Complete a full sensor calibration backup via the tool HMI before any swap to restore scaling values if Modbus communication handshake errors occur after installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket modules ship with only a 3–6 month limited warranty, as aged analog conditioning ICs create unquantified risk of mid-run process signal drift that scraps production wafer batches.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated analog channel tolerances, zero operating hour thermal fatigue, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement op-amps, and skip full plasma RF interference cycling testing; hidden signal linearity defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
6. What is the cross-compatibility difference between 810-068158-014 and the updated Rev 015 model?This Rev 014 unit uses older Modbus register mapping and unoptimized sampling timing that creates minor pressure sensor trending jitter under heavy RF chamber load. The Rev 015 variant resolves this timing glitch and supports newer PCS v7.8+ software; direct cross-replacement of Rev 014 with Rev 015 requires a full re-calibration of all connected analog sensor loops.
7. What routine maintenance schedule applies to this signal conditioning unit in high-volume production fabs?Execute full analog channel linearity calibration every 6 months during scheduled chamber PM cycles. Replace the complete unit after 40,000 operating hours, as onboard signal conversion ICs develop gain drift under continuous cabinet heat and plasma RF exposure that degrades long-term etch process repeatability.
