Product Core Brief

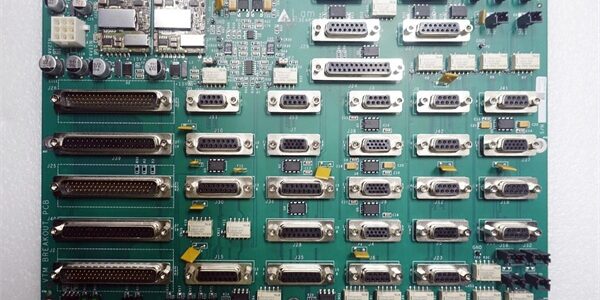

- Model: 810-072907-005 (Revision 005; Jetstream gas box main motherboard, complement to 810-072906-005 auxiliary interface board)
- Brand: LAM Research
- Series: Jetstream Gas Box Master Motherboard PCBA for legacy 200/300mm plasma etch processing platforms
- Core Function: Acts as central gas cabinet master controller; orchestrates Modbus RTU communication with banked MFCs, drives all gas isolation solenoids, monitors manifold pressure safety interlocks, and routes aggregated gas telemetry to the tool’s VME master SBC during wafer etch recipe execution.
- Product Type: 3U vertical rack-mount gas cabinet master printed circuit board assembly
- Key Specs: Dual isolated RS485 Modbus busses | 12-channel 24VDC solenoid drive outputs | <3ms gas safety interlock fault response latency
- Condition: New Original (New Surplus); Legacy OEM spare, limited factory stock reserved for active installed Jetstream gas box etch chamber fleets.
Key Technical Specifications
- Communication bus: Dual galvanically isolated RS485 Modbus RTU ports, baud rate configurable 9600–115200 bps
- Supported peripheral hardware: Analog/digital mass flow controllers, pneumatic gas shutoff solenoids, manifold pressure transducers, purge valve assemblies
- Solenoid drive rating: Per-channel 0.5A sourcing 24VDC output for gas isolation and purge valves
- Signal isolation rating: 1500VAC reinforced isolation separating MFC field wiring, solenoid loads, and internal logic circuits
- Operating supply: Regulated 24VDC industrial cabinet power, maximum 22W continuous power draw under full channel load
- Fault detection latency: <3ms interlock trip response for low gas pressure, valve open/close fault, and manifold overpressure conditions
- Data polling rate: 10Hz synchronous sampling for all connected MFC flow, pressure, and valve status telemetry
- Mechanical mounting: Standard 3U vertical slot dedicated to Jetstream gas box main rack subracks
- Operating ambient range: 10°C to +50°C gas cabinet; storage -40°C to +85°C, non-condensing humidity limits
- EMI mitigation: Multi-stage onboard ferrite filtering and ground plane segmentation to suppress RF plasma interference from adjacent process chamber hardware
- Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, fast short-circuit auto cutoff for solenoid loads
- MTBF rating: ≥90,000 hours under continuous 24/7 high-volume fab production duty cycle
- Compliance: CE, UL, SEMI S2 safety standard certified for front-end semiconductor wafer processing equipment
Product Introduction
LAM 810-072907-005 serves as the primary master control backbone inside Lam Jetstream gas distribution cabinets on legacy plasma etch chamber platforms. It coordinates all mass flow controller setpoint delivery, gas valve actuation sequencing, and safety interlock validation that directly impacts wafer etch uniformity and critical dimension control.
Its core differentiator is expanded 12-channel solenoid drive capacity and faster interlock fault response compared to the auxiliary 810-072906-005 interface board. Unisolated generic substitute motherboards pick up plasma RF noise that triggers false emergency gas shutoff trips, aborting active wafer batches and reducing overall fab throughput. The unit supports controlled hot-swap service without full gas cabinet vent and purge downtime during scheduled preventive maintenance cycles.
Firmware/Software Versions & Upgrade Notes
- Supported Lam Process Control Software (PCS): v6.0 through v8.2; PCS v9.x removes native Modbus register handshake compatibility with this master motherboard hardware.
- Recommended onboard firmware revision: Factory pre-flashed Rev 005 build; older Rev 004 firmware contains MFC flow sampling jitter that creates unstable etch rate uniformity across sequential production wafers.
- Upgrade risk warning: Downgrading tool master VME SBC firmware below v7.2.1 breaks bidirectional setpoint/telemetry polling with the motherboard. Match host controller and gas box master board firmware release families before chamber PM work.
- Firmware storage location: Onboard non-volatile flash memory integrated to the main PCBA. Export all MFC calibration offsets, gas manifold pressure interlock thresholds, and valve timing sequences via the tool HMI before executing any firmware flash operation.
- OEM constraint: Lam Research restricts official firmware file distribution exclusively to certified fab service partners post-2023; validate local firmware archive files before field installation to avoid communication handshake failures.
Frequently Asked Questions
- Can I remove this gas box master motherboard while the gas cabinet remains pressurized and process chamber RF enabled?Modbus bus buffering prevents full loss of gas telemetry data, but fully close all upstream gas supply isolation valves, vent manifold pressure to atmospheric, and disable chamber RF power supplies before extraction. Live high-voltage plasma RF interference generates transient bus noise that corrupts MFC calibration offsets stored on the unit’s onboard flash memory. Always complete a full gas parameter backup via the tool HMI first.
- Can I source a direct drop-in OEM replacement given this hardware is a legacy Jetstream gas cabinet spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncertified generic RS485 transceivers, degraded drive transistors, and omit full RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require 48-hour gas flow bench calibration before production chamber installation.
- Will swapping this master motherboard erase saved MFC calibration offsets or gas interlock trigger limits?All flow scaling tables, MFC trim offsets, gas safety trip thresholds, and valve sequencing timing reside on the motherboard’s internal flash memory. Complete a full gas parameter backup via the tool HMI before any swap to restore calibration data if Modbus handshake communication errors occur post-installation.
- What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged RS485 communication ICs and worn solenoid drive transistors create unquantified risk of mid-run gas flow misregulation that scraps full production wafer batches.
- Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated Modbus channel tolerances, zero operating hour thermal fatigue on drive semiconductors, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement transceivers, and skip full plasma RF interference cycling testing; hidden communication drift and drive circuit degradation defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
- Does this Jetstream gas box master motherboard support all Lam legacy plasma etch chamber gas cabinet layouts?This Revision 005 rack-mount variant only integrates with full-size Jetstream gas subrack assemblies for mid-size 200/300mm etch platforms. Earlier part revisions (810-072907-003 / -004) use mismatched Modbus register mapping and solenoid drive pinouts and cannot be cross-installed without full MFC and valve loop re-calibration. This board cannot replace the smaller auxiliary 810-072906-005 interface card due to different slot signal routing.
- What routine maintenance schedule applies to this gas box master motherboard in high-volume production fabs?Execute full Modbus communication and gas interlock validation every 6 months during scheduled chamber PM cycles. Replace the complete unit after 40,000 operating hours, as onboard signal conditioning and drive ICs develop gain drift under continuous gas cabinet heat and plasma RF exposure that degrades long-term etch process repeatability.
