Product Core Brief
- Model: T8800
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Terminate, fuse, and route 40 discrete 24 VDC safety contact signals between field wiring and T8403 TMR digital input modules via SmartSlot cabling
- Product Type: Field Termination Assembly (FTA) for digital input I/O
- Key Specs: 40 independent input channels | 50 mA per-channel field fusing | SmartSlot TC-501 cable interface | Condition: New Original Surplus

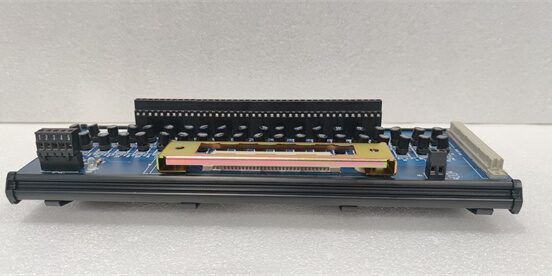

Product Introduction
The ICS Triplex serves as the primary field wiring hub for Trusted TMR discrete input systems, separating live cabinet backplane I/O hardware from field contact wiring to simplify hot-swap maintenance of the T8403 input card. Each channel includes dedicated fusing to isolate shorted field loops without disabling the full 40-point bank.This fused input FTA differs from non-incendive T8801 variants via standard 50 mA overcurrent protection and wider 0–55 °C operating range. OEM reliability data lists an MTBF above 100,000 operating hours at steady 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Total Field Input Channels | 40 discrete digital input points |
| Nominal Field Operating Voltage | 20 VDC to 32 VDC (24 VDC standard safety loops) |
| Per-Channel Overcurrent Protection | 50 mA mini blade fuse, field-side only |
| Backplane Interface | SmartSlot R connector, paired with TC-501 multi-core cable to T8403 I/O moduleRockwell A… |
| Field Wiring Standard | 2-wire volt-free safety contact wiring (E-stop, limit, pressure switches) |
| Total Continuous Power Draw | 5 W maximum fully loaded across all 40 channels |
| Signal Update Latency | 250 ms system-wide input scan matching T8403 module timing |
| Mechanical Mounting | Standard 35 mm horizontal DIN rail installation |
| Operating Ambient Temp | 0 °C to 55 °C; storage -40 °C to 85 °C |
| Safety Certification | IEC 61508 SIL 3, TÜV, UL/cUL, CE, IP20 cabinet-only mounting |
| Physical Dimensions | 335 mm W × 111 mm H × 51 mm D; net weight 0.90 kg |
| Enclosure Protection | Dust-resistant cabinet-only rating, no outdoor mounting approval |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match unit serial numbers to Rockwell OEM batch manifests to reject counterfeit aftermarket hardware. Visually inspect terminal block screw clamps, SmartSlot connector pins, and installed fuse holders for deformation or cracking.
- Live Functional Test: Mount the unit on a DIN rail test bench, connect a 24 VDC Fluke 115 regulated supply and TC-501 cable to a production T8403 module. Run a 24-hour soak cycle with 20 active contact simulators, log channel state integrity hourly.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between field terminals and chassis ground; pass threshold is >10 MΩ. Verify fuse open-circuit fault detection on each channel bank.
- Component Verification: This passive FTA holds no firmware. Inspect each installed 50 mA fuse to confirm OEM part numbers match datasheet specs; photograph terminal layout for site wiring reference records.
- Final QC & Packaging: Insert the assembly into a static-dissipative poly bag. Affix a dated QC Pass sticker listing measured insulation resistance and full soak test duration before pallet storage.
Replacement Pitfall Guide
❗ Module Pairing Mismatch Risk: The only interoperates with digital input cards. Pairing it with analog T8431 modules creates open-circuit channel faults the SIS safety logic cannot suppressRockwell A….❗ Fuse & Terminal Misconfiguration Risk: Factory blank fuses ship pre-installed in unused channels. Leaving blank fuses in active signal loops cuts contact signal paths and triggers persistent open-circuit alarms.❗ Cable Shield Grounding Incompatibility Risk: The FTA chassis ground lug ties to cabinet protective earth. Grounding field cable shields at both the and field safety switch creates ground loops that inject 2–8 V noise into discrete signal lines.❗ Power Supply Headroom Miscalculation Risk: A fully loaded draws 5 W at 24 VDC. Size cabinet power supplies with 20% overhead; underrated supplies drop voltage below 20 VDC and trigger SIL3 safe-state interlocks.❗ ESD Damage Risk: SmartSlot gold contacts stay unshielded when the TC-501 cable is disconnected. Use a grounded anti-static mat during cable swaps in low-humidity cabinet environments; static discharge erodes connector plating and generates intermittent channel dropouts.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- (40-Ch TMR Digital Input Module) → : Direct Replacement — Native TC-501 SmartSlot mechanical and electrical matching, zero wiring rework
- T8801 (40-Ch Non-Incendive Digital Input FTA) → : Needs Adaptation — DIN rail footprint identical, per-channel fusing and hazardous area ratings differ; full field loop revalidation required
- T8451 (Digital Output Module) → : Incompatible — Output signal conditioning circuits cannot process discrete 24 VDC input contact loops
Benchmarks
- Full 40-channel input scan latency: 250 ms (40 active sink contact loops, 24 VDC nominal supply)
- Isolation breakdown resistance: >10 MΩ between field terminals and chassis ground (500 V Megger test)
- Continuous power draw: 4.1 W average under full 40-channel 10 mA contact loop load
