Product Core Brief
- Model: T9402
- Brand: ICS Triplex (Rockwell Automation)
- Series: AADvance TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Capture 16 galvanically isolated 24 VDC discrete safety contact signals, support dual redundant signal paths for SIL3 ESD and fire & gas SIS logic
- Product Type: Backplane-mount dual-redundant digital input I/O module
- Key Specs: 16 isolated DI channels | Dual signal path architecture | 0.924 ms minimum scan cycle | Native mating with T9802 dual termination assembly | Condition: New Original Surplus
Product Introduction

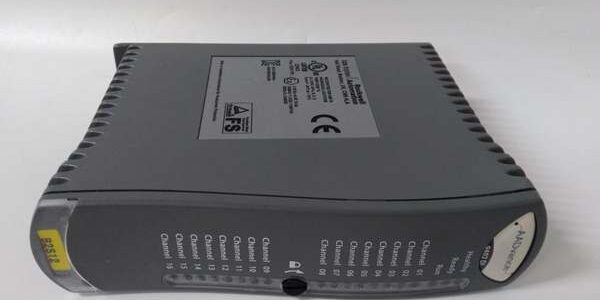

The ICS Triplex is a single-slot dual-redundant digital input card built for AADvance safety chassis, acquiring discrete limit switch and E-stop signals to feed voting logic on the T9110 TMR processor. It pairs exclusively with the T9802 dual field termination assembly to separate cabinet backplane wiring from live safety field cabling.This module differentiates from simplex T9401 hardware via dual isolated signal lanes and extended -40 °C cold-start operating capability. OEM reliability testing records an MTBF of 121,000 operating hours at a steady 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Total Discrete Input Channels | 16 fully isolated channels, dual redundant signal architecture |
| System Backplane Supply | 18 VDC to 32 VDC nominal 24 VDC dual redundant rack power |
| Nominal Field Operating Voltage | 0 VDC to 30 VDC; logic ON threshold >15 VDC, OFF threshold <5 VDC |
| Per-Channel Loop Monitoring Current | 4 mA steady-state for open/short circuit fault detection |
| Configurable Global Scan Cycles | 0.924 ms / 1.676 ms / 2.453 ms selectable via Workbench software |
| Channel Isolation Rating | 1500 VAC dielectric withstand between field loops and backplane |
| Matching Termination Assembly | T9802 dual redundant digital input TIA wiring base |
| Hot-Swap Support | Live rack replacement without triggering SIS safe-state logic |
| Operating Ambient Temp | -40 °C to +70 °C; storage -40 °C to +85 °C |
| Safety Certification | IEC 61508 SIL 3, TÜV AK6, UL/cUL, CE, FM Class I Div 2 Groups A/B/C/D |
| Physical Dimensions | 166 mm L × 42 mm W × 118 mm D; net weight 0.25 kg |
| Onboard Diagnostics | Per-channel LED status, continuous open/short circuit fault flagging |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial numbers against Rockwell OEM batch manifests to reject counterfeit aftermarket copies. Visually inspect rear backplane gold edge pins for bending, front panel channel LED lenses for scratches, and enclosure heat fins for deformation.
- Live Functional Test: Insert module into an AADvance test chassis paired with a Fluke 115 regulated 24 VDC supply and matched T9802 termination assembly. Run a 24-hour soak cycle with simulated safety contact resistive loads, log minimum scan cycle latency and fault diagnostic trigger thresholds hourly.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between each isolated channel bank and chassis ground; pass threshold is >10 MΩ. Verify open-circuit and short-circuit fault detection across all 16 points.
- Firmware Verification: Read and record I/O firmware build number via AADvance Workbench configuration software; photograph front-panel bus termination jumper positions for site wiring reference records.
- Final QC & Packaging: Place module inside static-dissipative poly bag. Affix dated QC Pass sticker listing measured insulation resistance and total soak test runtime before palletized warehouse storage.
Replacement Pitfall Guide
❗ Firmware Mismatch Risk: The firmware v7.2+ cannot hot-swap with chassis running v6.8 or older without full SIS logic recompile and channel threshold revalidation. Unmatched firmware triggers persistent dual-path signal mismatch critical safety faults.❗ Termination Assembly Mismatch Risk: This dual-redundant module only operates with T9802 dual TIAs. Mating it with simplex T9801 termination bases creates missing redundant signal paths and permanent SIS fault alarms.❗ Cable Shield Grounding Incompatibility Risk: The chassis ground lug bonds to cabinet protective earth. Grounding field digital cable shields at both the TIA and safety switch creates ground loops that inject low-frequency noise and false open-circuit diagnostic flags.❗ Power Supply Headroom Miscalculation Risk: A fully loaded draws 3.8 W steady-state at 24 VDC. Size cabinet power supplies with 20% overhead; underrated racks drop voltage below 18 VDC and lock all discrete input points into offline safe-state logic.❗ ESD Damage Risk: Exposed rear backplane edge pins remain unprotected during hot-swap removal. Use a grounded anti-static mat in low-humidity cabinet spaces; static discharge scratches plating and generates intermittent channel dropout faults.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- T9110 (AADvance TMR Safety CPU) → : Native Compatible — Direct backplane bus communication, no signal adapter hardware required
- (Dual Redundant Digital Input TIA) → : Direct Replacement — Mechanical lock and dual signal pinout matching, zero field wiring rework
- T8110B (Trusted Series TMR CPU) → : Incompatible — Trusted proprietary backplane bus cannot interpret AADvance I/O communication protocol
Benchmarks
- Full 16-channel discrete input state scan latency: 0.924 ms (simulated safety contact loads, 24 VDC nominal rack supply)
- Channel-to-chassis isolation resistance: >10 MΩ per isolated bank (500 V Megger dielectric withstand test)
- Continuous power consumption: 3.2 W average under full 16-channel 4 mA discrete input load
