Component Snapshot At-a-Glance
- Model: 3503E
- Alt. P/N: No factory designated cross replacement part number
- Product Series: Triconex Tricon V9/V10/V11 TMR SIL3 SIS safety rack platform
- Hardware Type: Rack mount triple redundant 32-point digital input (DI) module, grouped 8-ch per common return bank
- Key Feature: 3500VAC group-to-backplane isolation + per-channel continuous self-test diagnostics
- Primary Field Use: Collect 24V wet/dry discrete switch signals for ESD interlock, BMS permissive and fire&gas limit switch monitoring inside SIS cabinets
Triconex 3503E
Hard-Numbers: Technical Specifications
- Channel Count: 32 digital input channels; split into four independent 8-channel common groups
- Supported Input Range: 20–42.5VDC nominal, 20–42.5VAC 47–63Hz alternating input compatible
- Isolation Rating: 3500VAC dielectric isolation between field group and backplane TMR circuitry
- Operating Temperature: -40°C ~ +70°C continuous cabinet run; -40°C ~ +85°C non-operational storage
- Backplane Power Draw: 6.1W typical operating draw from Tricon rack backplane bus
- Response Latency: ≤2ms raw input detection before internal TMR voting process
- Terminal Matching: Designed to pair with dedicated Tricon DI termination boards via multi-pin ribbon harness
- Certification: IEC61508 SIL3, UL Class I Div2 hazardous location approval
- Unit Weight: 4.0kg per complete module assembly
- Humidity Spec: 5%–95%RH non-condensing ambient cabinet environment only
The Real-World Problem It Solves
Scattered single-channel DI cards bloat cabinet rack space and force messy parallel wiring bundles for large interlock banks. Ungrouped field returns create cross-group ground loops that trigger random spurious SIS trip conditions mid-production run.
Where you’ll typically find it:
- Crude refinery FCC unit SIS racks for reactor high/low flow shutdown switch monitoring
- Coal-fired power plant boiler BMS cabinets for burner air/fuel permissive contact collection
- Onshore natural gas plant compressor shelter ESD racks for suction/discharge trip interlock wiring
Grouped common bus layout cuts field wiring count in half and reduces loop induced noise during annual SIS proof testing.
Hardware Architecture & Under-the-Hood Logic
Three fully independent isolated PCB processing lanes built into single module chassis; no shared signal trace across TMR legs, each channel feeds all three redundant sampling circuits prior to 2oo3 hardware voting.
- 24V AC/DC dry/wet contact signal routes from paired termination board via ribbon cable into module front header pins.
- Every incoming channel splits equally to three separate opto-isolated input detection circuits for parallel state reading.
- Onboard hardware comparator executes fixed 2-out-of-3 voting to filter transient field surge and single-TMR-lane component drift faults.
- Validated binary channel status gets packaged onto proprietary Tricon backplane bus toward rack CPU safety logic processing.
- Per-channel dual-color LED lights green for closed valid contact; red illuminates to flag open/shorted field wiring logged inside TriStation diagnostics.
- Embedded cyclic self-test cycles each input periodically to catch stuck-high/stuck-low channel degradation without process downtime.

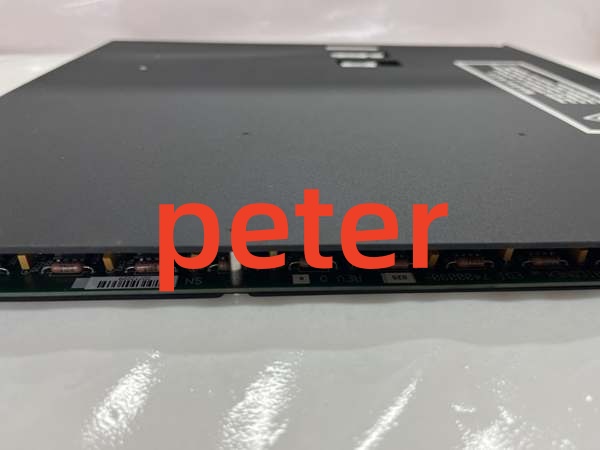

Triconex 3503E
Field Service Pitfalls: What Rookies Get Wrong
Cross-Busing Different 8CH Common Groups Into Single Field 24V SourceNew tech ties separate 8-channel group common returns onto identical 24VDC field feed. Load imbalance pushes stray current across isolation barriers, causing adjacent group channels to flicker random open/closed status.
- Quick Fix: Isolate each of four 8CH group common to independent field power source; never cross group return wiring on 3503E terminations.
Improper System Scan Timing Causing Intermittent Channel ChatterField engineer downloads overly fast 25ms controller scan rate, leaving insufficient bandwidth for module onboard self-test cycles. Channels toggle false TRUE/FALSE randomly without actual field switch movement.
- Field Rule: Lock minimum base scan at 50ms for all racks populated with 3503E; confirm free scan headroom ≥20% post-download.
Hot-Pulling Module Mid-Rack Powered Without LOTO LockoutMaintenance crew extracts or inserts live 3503E with rack energized. Bent backplane gold pins short internal TMR lanes, forcing permanent module FAULT requiring factory component repair.
- Quick Fix: Drop slot dedicated power fuse before module swap; visually inspect backplane pin alignment pre-installation.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
