Component Snapshot At-a-Glance
- Model: 3532E
- Alt. P/N: No cross-reference factory alternate part number
- Product Series: Triconex Tricon V9/V10 SIL3 TMR SIS rack platform
- Hardware Type: Rack-mounted triple redundant non-grouped digital input module, 32 fully isolated discrete channels
- Key Feature: Zero shared common return per channel; no onboard open-wire diagnostic circuitry vs premium 3502E counterpart
- Primary Field Use: Collect 48V AC/DC valve position feedback and secondary limit switch contacts within process SIS and ITCC control cabinets

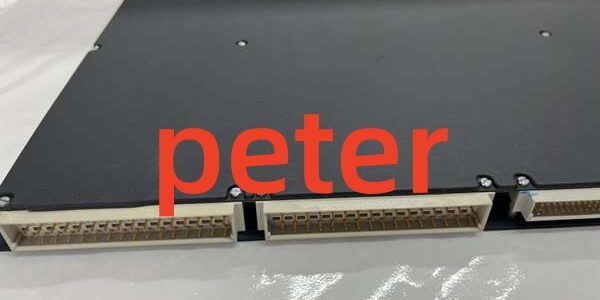

Triconex 3503E
Hard-Numbers: Technical Specifications
- Supported Input Voltage: 42~56VDC / 42~56VAC 50/60Hz dry/wet discrete contact input
- Channel Count: 32 fully independent input channels, no grouped common bus terminals
- Isolation Rating: 1500VAC dielectric isolation per single channel to backplane bus
- Operating Temperature: -40°C ~ +70°C continuous cabinet runtime; -40°C ~ +85°C storage range
- Backplane Power Draw: 5.3W nominal steady-state consumption from Tricon rack backplane
- Input Response Latency: ≤8ms raw contact detection before internal 2oo3 hardware voting
- Matching Termination Hardware: Dedicated ribbon-cable wired terminal baseboards for field wiring termination
- Safety Certification: IEC61508 SIL3, UL Class I Div2 hazardous location rated
- Unit Physical Weight: 1.48kg per fully assembled rack module
- Ambient Humidity Rating: 5%~95%RH non-condensing cabinet operating environment only
The Real-World Problem It Solves
Grouped common DI cards force bulk field cable bundling that creates cross-circuit leakage and random false contact closure tags on secondary equipment feedback loops. Oversizing premium diagnostic-enabled cards for low-criticality valve feedback inflates on-site spare part inventory cost unnecessarily.
Where you’ll typically find it:
- Natural gas compressor station ESD racks collecting compressor blowdown valve limit switch feedback signals
- Refinery hydrotreater auxiliary SIS cabinets for isolation valve open/closed position discrete inputs
- Air separation plant ITCC racks monitoring anti-surge valve secondary mechanical limit contacts
Single-channel isolated layout cuts cross-talk occurrences and reduces spare stock overhead for non-critical SIS feedback loops.
Hardware Architecture & Under-the-Hood Logic
Passive opto-isolated TMR PCB design with no onboard local microcontroller; three fully separated sampling circuits run parallel on distinct PCB traces to isolate single-component faults away from remaining redundant lanes.
- Field 48V AC/DC contact signals route from paired termination board via multi-pin ribbon into module front header pins per individual channel.
- Every incoming input splits evenly to three standalone optocoupler sampling legs for separate voltage threshold measurement across all TMR paths.
- Onboard fixed hardware comparator executes 2-out-of-3 voting to filter transient cabinet EMI and single-leg component drift failures.
- Validated binary channel status transmits over proprietary Tricon backplane bus to rack main CPU for safety logic evaluation.
- Front-panel channel LEDs illuminate green for valid closed contact state; red triggers for overvoltage or shorted field wiring conditions.
- No embedded cyclic open-wire diagnostics; floating empty channels receive no built-in fault alert from module firmware.

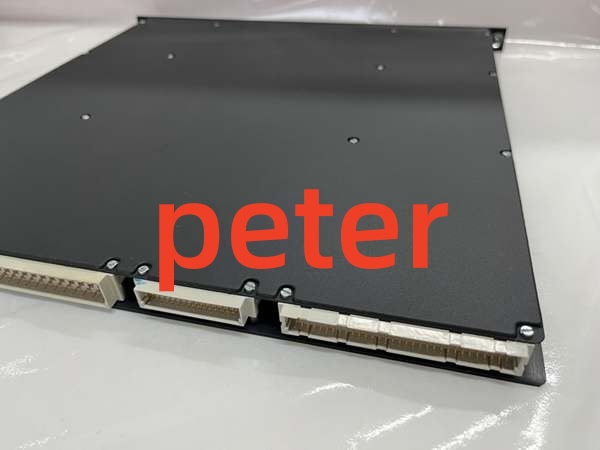

Triconex 3503E
Field Service Pitfalls: What Rookies Get Wrong
Mixing 24V and 48V Field Supply Circuits on Adjacent TerminalsNew technicians land 24VDC field wiring next to 48V channels on matching termination boards. Voltage differential creates capacitive cross-feed that randomly toggles open/closed tags across nearby input points.
- Quick Fix: Separate 24V and 48V wiring onto distinct terminal strips; never route differing nominal voltage feeds alongside one another for this module family.
Leaving Unused Channel Terminals Open and UnterminatedMaintenance leaves spare 3532E channel terminals floating empty without load resistors. Induced cabinet stray EMI creates intermittent random channel closure false positives during ambient temperature swings.
- Field Rule: Fit 470Ω 10W bleeder resistors across all unused input terminals to suppress floating voltage pickup.
Hot Module Insertion While Host Rack Remains EnergizedField crew swaps faulty 3532E live under powered rack conditions without LOTO procedures. Bent backplane gold pins short individual TMR lanes and lock entire module into permanent FAULT status.
- Quick Fix: De-energize target rack slot power before module removal or installation; inspect backplane pin integrity visually prior to seating new hardware.
