Product Core Brief

• Model: -S63
• Brand: YOKOGAWA
• Series: Yokogawa SDV144 Safety Digital Input Module
• Core Function: 16-channel, 24 V DC, module-isolated digital input module for Yokogawa safety and FIO I/O applications, accepting no-voltage contact or 24 V DC status signals.
• Product Type: Safety Digital Input Module
• Key Specs: 16 isolated channels | 24 V DC input | Signal cable interface adapter connection | Non-explosion-proof type | ISA G3 conformal coating | Compatible with CENTUM VP FIO and ProSafe-RS safety I/O
• Condition: New Original / New Surplus
• Status: Limited availability; confirm suffix, revision, terminal base, and I/O rack compatibility before ordering

Key Technical Specifications

• Product type: Yokogawa SDV144 safety digital input module
• Model code:
• System compatibility: Yokogawa CENTUM VP FIO and ProSafe-RS safety I/O architectures
• Input type: Digital input, no-voltage contact / 24 V DC
• Channels: 16 independent input channels
• Input voltage: 24 V DC
• Isolation: Module isolation between field inputs and system side
• Suffix meaning: “S6” = standard non-explosion-proof type with signal cable interface adapter; “3” = ISA G3 conformal coating, 20 to 70 °C
• Connection: Signal cable interface adapter; typically paired with compatible Yokogawa terminal base or signal cable
• Typical applications: SIS/DCS digital input, interlock status monitoring, permissive signals, valve/switch status feedback, maintenance spares, and plant turnaround replacement
• Handling: ESD-sensitive I/O module; verify suffix, slot position, terminal base, and wiring before installation



Product Introduction

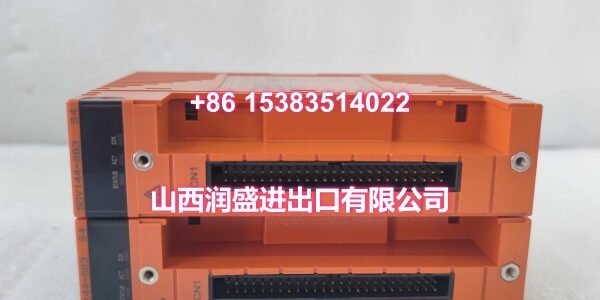

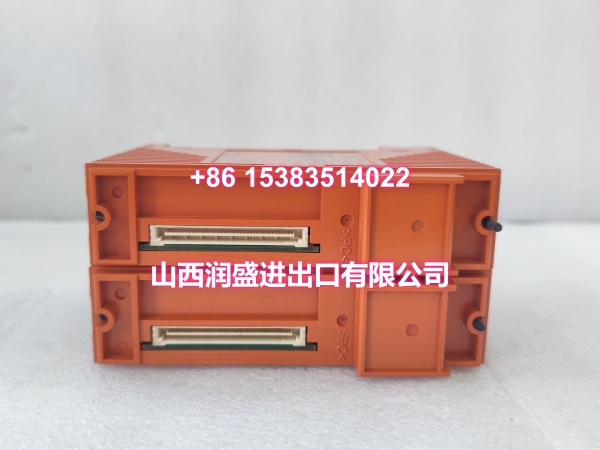

The SDV144-S63 is a Yokogawa SDV144-series safety digital input module used to acquire discrete field status signals in Yokogawa CENTUM VP FIO and ProSafe-RS safety I/O applications. Each module provides 16 digital input channels with module isolation, helping prevent field-side disturbances from affecting the controller.

The suffix “-S63” identifies this as a standard, non-explosion-proof module using a signal cable interface adapter, with ISA G3 conformal coating for enhanced environmental protection. This makes it suitable for process industries where corrosion resistance and long-term reliability are important.

For system integrators and maintenance teams, the SDV144-S63 is primarily used as a replacement or spare module in existing Yokogawa DCS/SIS installations. Because suffix variants such as -S53, -S63, -SE3, and -SF3 differ in connection type and environmental rating, the exact suffix must match the original installed unit.

QA & Inspection SOP

Each unit is inspected before release:

1. Nameplate verification: Confirm model reads SDV144-S63 and record style, revision, and serial number.
2. Visual inspection: Check housing, connectors, terminals, and PCB for damage, corrosion, or burn marks.
3. Connector check: Inspect backplane and signal cable interface for bent pins, looseness, or oxidation.
4. Insulation check: Verify no visible short circuits between input terminals, connectors, and ground.
5. Label check: Confirm channel labels, slot ID, and wiring tags match the original module.
6. Power-on test: If testable, install in a compatible rack and verify normal module indication.
7. Channel check: Confirm digital input status response for representative channels under safe test conditions.
8. Packaging: Protect connectors and terminals with anti-static packaging.

Full functional validation requires installation in the correct Yokogawa FIO or safety I/O rack with authorized engineering access.

Installation Pitfalls & Guide

❗ Confirm the exact suffix. SDV144-S63 uses a signal cable interface adapter. Do not substitute with SDV144-S53, SDV144-SE3, or SDV144-SF3 without verification, as connection type and environmental rating may differ.

❗ Verify I/O rack compatibility. SDV144 modules are used in CENTUM VP FIO and ProSafe-RS safety I/O units. Ensure the target rack supports this module type.

❗ Match terminal base and signal cable. The “-S63” variant typically requires the correct signal cable interface and terminal base. Mismatched cabling will prevent proper field wiring.

❗ Check redundancy configuration. If the original input was dual-redundant, both channels and modules must match in configuration and wiring.

❗ Follow SIS/DCS maintenance procedures. Digital input replacement in safety loops must follow lockout/tagout, bypass management, and management-of-change procedures.

Installation steps:

1. Pre-install: Record the original module model, suffix, slot position, terminal base, and wiring labels.
2. Isolate power: De-energize the I/O rack or follow approved online replacement procedures.
3. Install: Seat the SDV144-S63 firmly in the correct I/O slot.
4. Connect: Reconnect the signal cable and terminal base according to the original wiring diagram.
5. Power-up: Restore power and check module status indicators.
6. Verify: Confirm correct digital input status, diagnostic alarms, and safety loop behavior through authorized engineering tools.

Technical FAQ

What isAWA ?
It is a Yokogawa SDV144-series 16-channel, 24 V DC, module-isolated safety digital input module.

What does the “-S63” suffix mean?
“S6” indicates a standard non-explosion-proof module with signal cable interface adapter; “3” indicates ISA G3 conformal coating and 20 to 70 °C operating range.

Can it replace -S53?
Not directly. SDV144-S53 uses clamp terminal blocks or MIL cable, while SDV144-S63 uses a signal cable interface adapter. The wiring method must match the existing installation.

Which systems is it compatible with?
It is used in Yokogawa CENTUM VP FIO and ProSafe-RS safety I/O applications.

What should I check before ordering?
Confirm the full model code SDV144-S63, revision, terminal base/signal cable type, slot position, redundancy requirement, and compatible I/O rack. A nameplate photo is the most reliable way to confirm compatibility.
