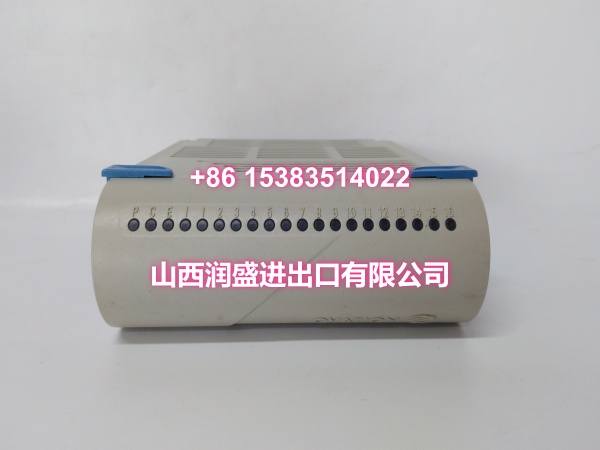

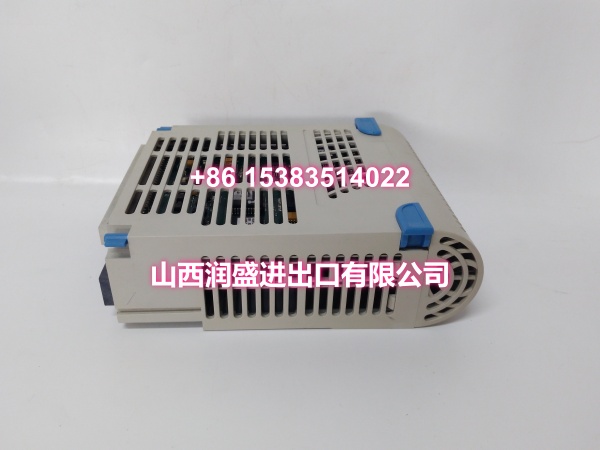

Product Core Brief
- Model: 5X00070G03
- Brand: WESTINGHOUSE
- Series: Ovation DCS
- Core Function: Analog output module for the Westinghouse Ovation distributed control system, converting controller digital commands into analog signals for field actuators.
- Product Type: DCS Analog Output Module
- Key Specs: Ovation system | Analog output | 0-20mA / 4-20mA family | Rack-mounted electronic module
- Condition: New Surplus / Tested
Key Technical Specifications
- Part Number: 5X00070G03
- System Platform: Westinghouse Ovation DCS
- Module Type: Analog output electronic module
- Output Signal: Typically 0-20mA or 4-20mA (subject to confirmation from physical label)
- Resolution: Up to 16-bit DAC (specification varies by revision; confirm from label)
- Channel Count: Typically 8 or 16 channels (confirm from label)
- Mounting: Ovation system rack / backplane slot
- Compatible System: Westinghouse Ovation DCS controllers and I/O racks
- Origin: USA
- Condition: Surplus / Tested
- Note: Public documentation for 5X00070G03 is limited. Exact channel count, signal range, and diagnostic features must be confirmed from the physical module label before installation.
Product Introduction (No Fluff)
The 5X00070G03 is an analog output module for the Westinghouse Ovation distributed control system. It converts digital output commands from the Ovation controller into analog current or voltage signals that drive field devices such as control valves, variable frequency drives, and process instruments.
For Ovation systems still in service, a verified analog output card is a high-priority spare. A failed AO channel can freeze a control valve at its last position, and having a tested replacement available cuts recovery time significantly.
QA & Testing SOP (Dynamic & Transparent)
Analog output modules are validated channel-by-channel because a single failed DAC or output stage can corrupt an entire control loop:
- Label verification: Confirm the full part number 5X00070G03, revision, and any sub-designation. Ovation 5X-series modules have similar-looking part numbers across different I/O types.
- Visual inspection: Check the housing, terminal connector, backplane edge connector, PCB, and LEDs for corrosion, rework, burn marks, or counterfeit indicators.
- Connector inspection: Examine the backplane pins and field terminal connector for bent pins, oxidation, or poor contact.
- Bench power-up test: Install in a compatible Ovation test rack and verify module initialization with no fault indicators.
- Channel-by-channel output test: Command each output channel and measure the analog signal with a calibrated multimeter to confirm correct range, accuracy, and linearity.
- ESD-safe packaging: After testing, seal the unit in anti-static shielding with moisture barrier protection for shipment.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Confirm the exact module type before swapping. The Ovation 5X-series includes analog input, analog output, digital I/O, and communication modules. 5X00070G03 is listed as an analog output module, but verify the physical label matches the failed unit.
❗ Match the output signal range. If the original module is configured for 4-20mA and the replacement is set to 0-20mA (or vice versa), the control loop will be offset. Check any configuration switches or software settings.
❗ Verify field wiring polarity and loop power. Reversed wiring or incorrect loop power supply can cause zero output or erratic readings even with a healthy module.
❗ Check the backplane slot assignment. Ovation modules may be assigned to specific slots. Installing an AO module in the wrong slot can prevent the controller from recognizing it.
Replacement steps:
- Pre-install: Photograph the existing label, record slot position, channel assignments, and output range settings.
- Removal: Place affected loops in manual mode if possible, then power down or isolate the rack per site procedure, release the module, and withdraw it straight from the slot.
- Install: Inspect the backplane connector, align the new module, seat it firmly, and reconnect field wiring with correct polarity.
- Power-on test: Restore power, verify LED status, and confirm each output channel responds correctly from the controller.
Technical FAQ
What is the 5X00070G03? It is a Westinghouse Ovation-series analog output module used to convert controller digital commands into analog signals for field devices.
What signal range does it support? Ovation AO modules typically support 0-20mA or 4-20mA ranges, but the exact range and channel count should be confirmed from the physical label.
Can I substitute it with another Ovation AO module? Not automatically. Ovation modules must match the original function, slot type, and configuration. Always verify the part number and revision before replacing.
Is this module still available from Westinghouse? The Westinghouse Ovation platform is a legacy system. New OEM stock may be limited, so surplus and tested units are commonly used for maintenance.
What warranty applies to surplus units? Warranty terms vary by supplier. Some industrial surplus suppliers offer up to 2 years on tested parts, while others provide 12 months. Confirm exact terms before purchasing.
