Product Core Brief

• Model: 5X00106G01
• Brand: WESTINGHOUSE / Emerson Ovation
• Series: Emerson Ovation HART High-Performance Analog Input Electronics Module
• Core Function: 8-channel HART high-performance analog input electronics module for the Emerson Ovation DCS, acquiring analog process signals and supporting HART device communication for diagnostics and configuration.
• Product Type: HART Analog Input Electronics Module
• Key Specs: 8 analog input channels | HART high-performance | Ovation EMOD | System-powered | Used with compatible Ovation terminal/characteristic modules
• Condition: New Original / New Surplus
• Status: Limited availability; confirm full part number, revision, input type, terminal base, and HART configuration before ordering

Key Technical Specifications

• Product type: Ovation HART high-performance analog input electronics module
• Part number: 5X00106G01
• System platform: Emerson Ovation DCS, originally developed from Westinghouse DCS technology
• Channel count: 8 analog input channels
• Input type: Analog input with HART communication support; exact signal range depends on paired terminal/characteristic module and system configuration
• Resolution: Up to 14-bit ADC reported in spare-parts listings; confirm against official Emerson documentation
• Accuracy: Approximately ±0.1% of full scale reported in spare-parts listings; verify from module nameplate or Ovation hardware manual
• Power: Backplane-powered from compatible Ovation I/O rack
• Mounting: Installed in compatible Ovation I/O rack with matching terminal/characteristic module
• Typical applications: Ovation DCS maintenance spares, HART device integration, analog loop replacement, plant turnaround support, and legacy Ovation system upgrades
• Handling: ESD-sensitive analog/HART module; verify part number, revision, slot, terminal base, and field wiring before installation

Note: Emerson documentation identifies 5X00106G01 as an Ovation 8-channel HART high-performance analog input electronics module. Some spare-parts listings describe it as a 16-channel digital input module, but this conflicts with Emerson’s own reference and should not be treated as confirmed. Always verify against the installed module nameplate and Ovation hardware manual.



Product Introduction

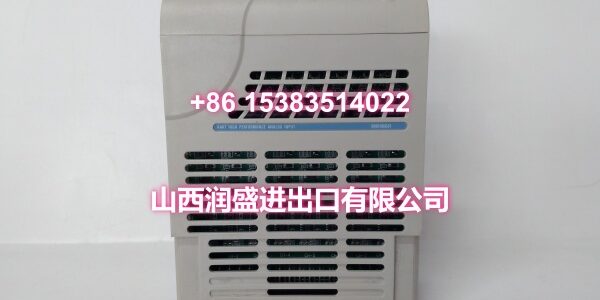

The 5X00106G01 is an Emerson Ovation HART high-performance analog input electronics module used in Ovation DCS installations. It provides 8 analog input channels with HART communication capability, allowing the system to acquire process signals while also reading device status, diagnostics, and configuration data from HART-enabled field instruments.

Ovation is a distributed control system originally developed by Westinghouse and now produced by Emerson for power generation, water/wastewater, and other process industries. The 5X00106G01 is typically used as a maintenance spare or replacement module in existing Ovation systems where HART analog input channels must be maintained without changing the existing I/O architecture.

Because Ovation analog input channels depend on both the electronics module and the paired terminal/characteristic module, replacement must be verified against the original installed configuration.



QA & Inspection SOP

Each unit is inspected before release:

1. Nameplate verification: Confirm part number 5X00106G01 and record revision, style, and serial number.
2. Visual inspection: Check housing, connectors, terminals, and PCB for damage, corrosion, or burn marks.
3. Connector check: Inspect backplane and terminal-side connectors for bent pins, looseness, or oxidation.
4. Insulation check: Verify no visible short circuits between input terminals, connectors, and ground.
5. Label check: Confirm slot ID, loop tags, and wiring labels match the original module.
6. Power-on test: If testable, install in a compatible Ovation rack and verify normal module indication.
7. Input/HART check: Apply safe test signals and verify channel readings and HART communication through authorized engineering tools.
8. Packaging: Protect connectors and terminals with anti-static packaging.

Full functional validation requires installation in a compatible Ovation I/O rack with authorized configuration access.

Installation Pitfalls & Guide

❗ Confirm the exact module type. 5X00106G01 is documented by Emerson as an 8-channel HART high-performance analog input electronics module. Do not substitute with non-HART AI modules, AO modules, or DI modules.

❗ Verify paired terminal/characteristic module. Ovation analog input channels require a matching terminal/characteristic module. Mismatched pairs may cause incorrect readings, wiring incompatibility, or loss of HART communication.

❗ Check HART configuration. HART functionality depends on system configuration, loop wiring, and field device compatibility.

❗ Confirm slot and scaling. The module slot, point configuration, engineering units, and alarm limits must match the existing Ovation database.

❗ Follow plant change procedures. Analog input replacement in control, monitoring, or protection loops should follow approved maintenance and management-of-change procedures.

Installation steps:

1. Pre-install: Record the original module part number, revision, slot position, terminal base, and loop wiring labels.
2. Isolate power: De-energize the I/O rack or follow approved online replacement procedures.
3. Install: Seat the 5X00106G01 firmly in the correct Ovation I/O slot.
4. Connect: Reconnect the terminal/characteristic module and field wiring according to the original diagram.
5. Power-up: Restore power and check module status indicators.
6. Verify: Confirm correct analog readings, HART device communication, scaling, alarms, and control loop behavior through authorized engineering tools.



Technical FAQ

What is WESTINGHOUSE 5X00106G01?
It is an Emerson Ovation 8-channel HART high-performance analog input electronics module.

Which system does it belong to?
It belongs to the Emerson Ovation DCS, originally developed from Westinghouse DCS technology.

Does it support HART?
Yes. It is documented as a HART high-performance analog input module, supporting HART device communication for diagnostics and configuration.

Why do some listings call it a DI module?
Some spare-parts listings describe 5X00106G01 as a 16-channel digital input module, but this conflicts with Emerson’s own reference. Always verify against the installed module nameplate and official Ovation documentation.

What should I check before ordering?
Confirm the full part number 5X00106G01, revision, input type, paired terminal/characteristic module, slot position, loop wiring, and HART configuration. A nameplate photo is the most reliable way to verify compatibility.
