Product Core Brief

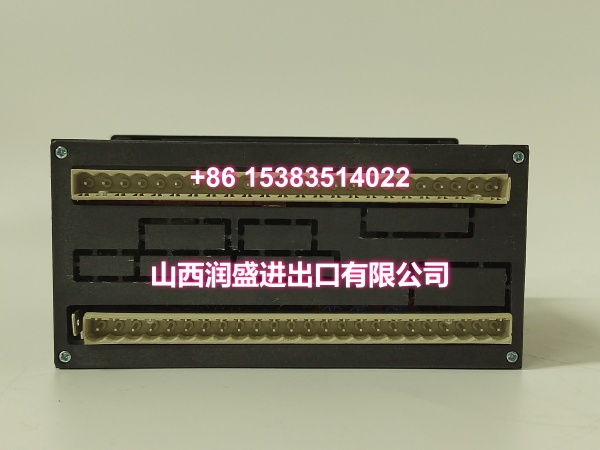

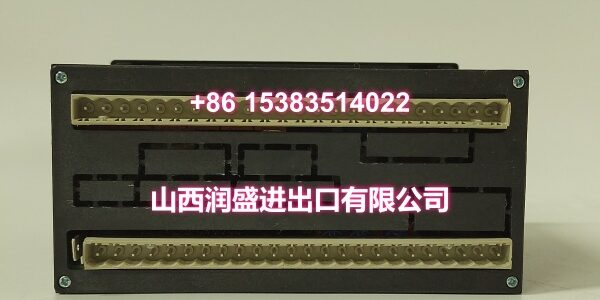

- Model: 8440-1706
- Brand: WOODWARD
- Series: SPM-D11 / LSXR Synchronizer & Load Sharing Module
- Core Function: Automatic synchronizer and load sharing controller for generator paralleling — matching frequency, phase angle, and voltage before breaker closure, then supporting kW/kvar load distribution after synchronization.
- Product Type: Synchronizer Module / Generator Paralleling Controller
- Key Specs: Automatic phase / voltage / frequency matching | Slip-frequency synchronization | Dead-bus closing | kW/kvar load sharing | Power factor control | Two-line LCD display | Panel-mount form factor
- Condition: New Original / New Surplus
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 8440-1706 |
| Manufacturer | WOODWARD, Inc. (Fort Collins, CO, USA) |
| Product Family | SPM-D11 / LSXR synchronizer and load sharing module |
| Primary Application | Generator synchronizing, breaker closing control, and parallel load sharing |
| Synchronization Functions | Phase matching, slip-frequency control, voltage matching, dead-bus close |
| Load Sharing | kW/kvar sharing, power factor control, soft unload, isolated operation |
| Operator Interface | Two-line LCD display with diagnostics and alarm indication |
| Mounting | Standard panel-mount module (SPM-D11 family; confirm exact dimensions per revision) |
| Communication | May support Modbus or serial/Ethernet depending on revision and integration |
| Typical Systems | Industrial generator sets, cogeneration plants, marine power systems, multi-unit paralleling |
Note: Public listings for 8440-1706 sometimes mix it with 505E turbine controllers or easYgen platforms. The 8440-1706 is most consistently documented as an SPM-D11 synchronizer/load sharing module. Power supply, I/O mapping, communication options, and firmware revision must be confirmed against the installed unit nameplate or Woodward documentation.
Product Introduction (No Fluff)
The 8440-1706 is a Woodward synchronizer and load sharing module, commonly referenced in the SPM-D11 / LSXR family. It is used in generator paralleling applications where a breaker must be closed only after frequency, phase angle, and voltage are properly matched — and where the generator must then share real and reactive load with other units or the grid.
Unlike a turbine governor, this module does not directly drive fuel valves or steam actuators. Instead, it coordinates with the speed governor and voltage regulator: it issues raise/lower commands to match the incoming generator to the bus, permits breaker closure within safe windows, and then participates in kW/kvar load distribution after synchronization.
From a system-integration perspective, the 8440-1706 is typically found in multi-generator plants, cogeneration systems, marine switchboards, and industrial power systems that require automatic paralleling, load sharing, power factor control, and dead-bus closing capability. For maintenance teams, it serves as a replacement module for existing SPM-D11 / LSXR installations where synchronizing performance has degraded or the module has failed.
QA & Testing SOP (Dynamic & Transparent)
Synchronizer modules are difficult to verify without proper test infrastructure because their core function depends on live bus conditions. Here is how we verify them:
- Visual & anti-counterfeit inspection — Confirm part number 8440-1706, revision label, serial number, and housing condition. Check for cracked displays, damaged connectors, or signs of overheating.
- Connector and terminal inspection — Examine all wiring terminals and backplane connectors for oxidation, loose pins, or burn marks.
- Power-up test — Apply rated supply voltage per the unit nameplate. Confirm normal boot, display initialization, and absence of fault alarms.
- Display and menu verification — Navigate the operator interface. Confirm the LCD shows readable diagnostics, alarms, and configuration pages.
- Configuration integrity check — Review synchronizing windows, slip-frequency limits, voltage matching limits, dead-bus settings, and load sharing parameters. Flag any unit with missing or corrupted settings.
- I/O and communication check — Verify breaker control outputs, raise/lower command outputs, and any serial/Ethernet communication if supported by the revision.
- Packaging — ESD-bagged, connectors capped, foam-padded, and shipped in impact-resistant boxing.
Tools: Rated power supply, multimeter, breaker control simulator, and a compatible synchronizer test set where available. Full synchronization validation should be performed during supervised commissioning.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ This is not a turbine governor. The 8440-1706 does not directly control fuel or steam valves. It sends raise/lower signals to the governor and AVR. Installing it as a standalone speed controller will not work.
❗ Confirm the revision and firmware. Woodward 8440-series part numbers can span different hardware revisions. Always match the installed unit label before ordering.
❗ Verify PT and breaker wiring. Incorrect potential transformer phasing, reversed polarity, or miswired breaker auxiliary contacts can cause false synchronization or failure to close.
❗ Do not bypass synchronizing windows. Narrow windows improve safety but may prevent closure; wide windows risk mechanical and electrical stress. Settings must match the plant’s protection philosophy.
❗ Commission under supervised conditions. After replacement, verify phase rotation, voltage matching, slip-frequency behavior, breaker close permission, and load sharing response before returning to parallel operation.
Replacement steps:
- Isolate the generator breaker and control power. Document all wiring and configuration settings.
- Photograph terminal assignments, parameter pages, and nameplate data.
- Remove the faulty module. Inspect connectors and PT/breaker wiring.
- Install the replacement. Restore power, reload verified configuration, and perform supervised synchronization testing.
Technical FAQ
Can you offer price flexibility for bulk or repeat orders? Yes. Pricing depends on condition, revision, configuration status, and quantity. We can discuss volume pricing for critical spares packages.
What warranty do you provide? Warranty terms vary by condition and source. New original units carry manufacturer-backed coverage where applicable; new surplus units carry our tested-unit warranty. Terms are confirmed before shipment.
Is this directly compatible with my existing synchronizer panel? In most cases, yes — the 8440-1706 is an SPM-D11 / LSXR synchronizer module. However, you must confirm the revision, I/O mapping, and configuration match your installed system.
Can this replace other SPM-D11 modules? Potentially, but not automatically. You must match the application (synchronizer vs. load sharing vs. combined function), I/O configuration, and firmware revision.
Is this model still available or obsolete? The SPM-D11 / LSXR platform remains referenced in many installed-base generator paralleling systems. Individual module availability depends on revision and regional stock. For critical multi-generator plants, keeping a tested spare on site is strongly recommended.
