Component Snapshot At-a-Glance

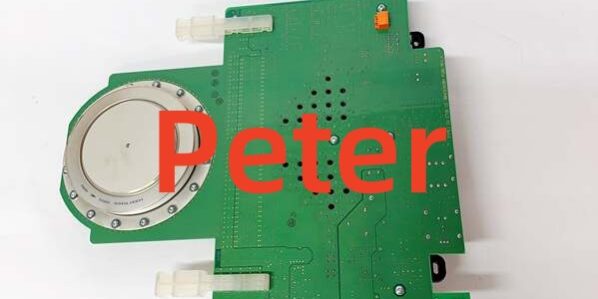

- Model: ABB 5SHY4045L0004
- Alt. P/N: 3BHB021400R0002
- Product Series: ABB 5SHY HiPak IGCT Family
- Hardware Type: Press-pack Integrated Gate-Commutated Thyristor (IGCT)
- Key Feature: 4.5kV / 4500A rating with integrated freewheeling diode
- Primary Field Use: High-power switching for grid stabilization, renewable converters, and MV drives.
Hard-Numbers: Technical Specifications
- Blocking Voltage: 4500 V rated, 9000 V peak
- Continuous Current: 4500 A nominal
- Surge Current: 60 kA (1 cycle)
- Operating Temperature: -40°C to 125°C (junction)
- Isolation Rating: 5000 V AC (1-minute withstand)
- Gate Interface: Fiber-optic, 24 V DC supply
- On-State Voltage: ≤1.7 V @ 4500 A
- Turn-Off Time: ≤100 µs
- Cooling: Liquid water cooling (primary); air cooling limited to <30% load
- Weight: 6.8 kg
- Dimensions: 240 × 130 × 80 mm
The Real-World Problem It Solves
Discrete thyristor stacks need external snubbers, add cabinet bulk, and suffer high stray inductance. Standard IGBTs can’t hit 4.5kV / 4.5kA ratings for transmission-scale power conversion.
Where you’ll typically find it:
- HVDC Light and MMC converters for long-distance power transmission
- Static Var Compensators (SVC) and STATCOMs for grid voltage regulation
- 10MW+ wind farm and solar plant grid-tie inverters
This single-package IGCT cuts part count, shrinks cabinet size, and slashes loop inductance for cleaner, faster switching.
Hardware Architecture & Under-the-Hood Logic
Press-pack (disc-type) construction; IGCT and anti-parallel diode share a single hermetically sealed housing. Fiber-optic gate drive eliminates EMI from high-voltage switching.
- Optical ON pulse triggers internal gate unit; IGCT latches ON.
- Load current flows through IGCT anode-to-cathode.
- Commutation reverses current; integrated freewheeling diode conducts.
- Optical OFF pulse applies negative gate bias; IGCT blocks within 100µs.
- Internal NTC thermistor monitors junction temp for overtrip.
- Press-pack pressure ensures uniform thermal contact and vibration resistance.
Field Service Pitfalls: What Rookies Get Wrong
Running Full Load on Air CoolingTechs skip water cooling, use only heat sinks. Junction temp spikes, thermal runaway, immediate failure.
- Field Rule: Water cooling mandatory for >30% load; maintain inlet <40°C, flow >10 L/min.
Inadequate Pressure on Press-PackToo little pressure causes poor thermal contact and hot spots; too much cracks the ceramic housing.
- Quick Fix: Torque clamping bolts to 80 Nm; recheck after 24h thermal cycling.
Mixing 5SHY and 5SHX Modules in ParallelDifferent gate characteristics and Vf create current imbalance; one module overheats and fails.
- Field Rule: Only parallel identical 5SHY4045L0004 units; match revision numbers.
