Component Snapshot At-a-Glance

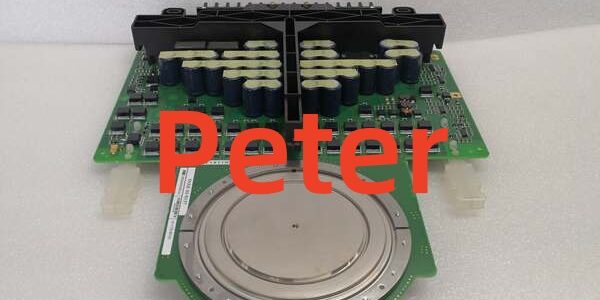

- Model: ABB 5SHY3545L0009
- Alt. P/N: 3BHB013085R0001, GVC750BE101
- Product Series: ABB 5SHY HiPak IGCT Family
- Hardware Type: Press-pack Integrated Gate-Commutated Thyristor (IGCT)
- Key Feature: 4.5kV / 3500A with integrated freewheeling diode, low stray inductance
- Primary Field Use: Medium-voltage drives, grid stabilization, and renewable energy converters.
Hard-Numbers: Technical Specifications
- Blocking Voltage: 4500 V rated, 9000 V peak
- Continuous Current: 3500 A nominal
- Surge Current: 6000 A (10 ms)
- Operating Temperature: -40°C to 125°C (junction)
- Isolation Rating: 12 kV AC (1-minute withstand)
- Gate Interface: Fiber-optic, 24 V DC gate supply
- On-State Voltage: ≤1.9 V @ 3500 A
- Turn-Off Time: <3 µs
- Cooling: Liquid water cooling (mandatory for >50% load)
- Weight: 5.3 kg
- Dimensions: 240 × 180 × 65 mm
The Real-World Problem It Solves
Discrete thyristor-diode stacks need external snubbers, add cabinet bulk, and suffer high stray inductance. Standard IGBTs can’t hit 4.5kV / 3.5kA ratings for transmission-scale power conversion.
Where you’ll typically find it:
- ACS6000 medium-voltage drives for mining mills and large conveyors
- STATCOMs and SVCs for grid voltage regulation and reactive power compensation
- HVDC Light and MMC converters for wind farm grid tie and long-distance transmission
This single-package IGCT cuts part count, shrinks cabinet size, and slashes loop inductance for cleaner, faster switching.
Hardware Architecture & Under-the-Hood Logic
Press-pack (disc-type) construction; IGCT and anti-parallel diode share a single hermetically sealed housing. Fiber-optic gate drive eliminates EMI from high-voltage switching.
- Optical ON pulse triggers internal gate unit; IGCT latches ON.
- Load current flows through IGCT anode-to-cathode.
- Commutation reverses current; integrated freewheeling diode conducts.
- Optical OFF pulse applies negative gate bias; IGCT blocks within 3µs.
- Internal NTC thermistor monitors junction temp for overtrip protection.
- Press-pack pressure ensures uniform thermal contact and vibration resistance.
Field Service Pitfalls: What Rookies Get Wrong
Running Full Load on Air CoolingTechs skip water cooling, use only heat sinks. Junction temp spikes, thermal runaway, immediate failure.
- Field Rule: Water cooling mandatory for >50% load; maintain inlet <40°C, flow >10 L/min.
Inadequate Clamping Pressure on Press-PackToo little pressure causes poor thermal contact and hot spots; too much cracks the ceramic housing.
- Quick Fix: Torque clamping bolts to 70 Nm; recheck after 24h thermal cycling.
Mixing 5SHY3545L0009 with Other HiPak RevisionsDifferent gate drive characteristics and Vf create current imbalance; one module overheats and fails.
- Field Rule: Only parallel identical 5SHY3545L0009 units; match revision numbers and gate driver firmware.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
