Component Snapshot At-a-Glance

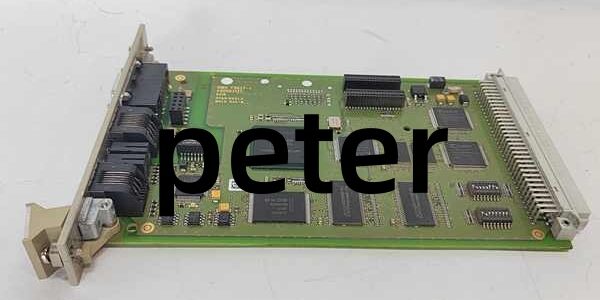

• Model: F8627X
• Alt. P/N: 984862765 factory full order part; F8627 is older base revision, not drop-in cross-compatible on new OS versions
• Product Series: HIMA HIQuad H41q / H51q QMR Safety Instrumented System
• Hardware Type: 4TE DIN rack-mounted HSR/Ethernet safety communication coprocessor, upgraded revision of F8627
• Key Feature: Extended firmware OS compatibility starting from V7.0-7, optimized HSR signal integrity for long cross-cabinet cable runs
• Primary Field Use: Process HSR inter-cabinet safety ring traffic and Modbus TCP/SCADA/HMI data to prevent main QMR CPU scan cycle overrun on large SIL3 ESD systems.

Hard-Numbers: Technical Specifications

• Protocol Support: HIMA HSR synchronous safety ring, Modbus TCP, SNMP, NTP, ELOP II diagnostic bus, SAFEEthernet
• Port Count: 1 x RJ45 10/100Base-TX Ethernet, 1 x RJ12 HSR high-speed serial ring port, internal dual-port RAM X-Bus backplane interface
• Baud/Data Rate: Ethernet 10/100 Mbps auto-negotiate; HSR fixed 2 Mbps synchronous safety bus
• Operating Temperature: -20°C to +60°C operational; -40°C to +85°C storage
• Isolation Rating: 1500VAC galvanic isolation between Ethernet/HSR field ports and QMR safety backplane bus
• Power Draw: 5VDC rack bus max 1A, total module power consumption 5W full load
• Processing Core: 32-bit Motorola MPC860T integrated communication RISC controller
• Memory: 8MB Flash firmware storage, 16MB SDRAM message buffer with expanded fault event log capacity vs F8627
• DIP Switches: Dual front DIP switch banks for module address and HSR ring line termination configuration
• Minimum Supported OS: H41q/H51q OS V7.0-7 (F8627 fails to boot on OS V7.0+ platforms)
• Certifications: IEC 61508 SIL3 TÜV certified, ATEX Zone 2 compatible, GL marine offshore rated, CE Class B EMC
• Hot-Swap Support: Yes, live insertion/removal does not interrupt rack QMR safety logic execution
• Weight: 0.34kg single module unit

The Real-World Problem It Solves

Legacy F8627 modules cannot operate on HIMA OS V7.0 and newer firmware, forcing hardware replacement during system OS upgrades. Original F8627 suffers signal reflection noise on HSR runs longer than 15m, triggering frequent QMR voting mismatch alarms on multi-cabinet offshore racks. Routing all HMI/SCADA traffic through the main QMR CPU stretches scan cycles past SIL3 fixed-cycle limits, triggering safety watchdog timeout faults during high alarm throughput.Where you’ll typically find it:

• Refinery large HIPPS ESD systems with multi-cabinet HSR safety rings running OS V7.0+
• Offshore FPSO distributed fire/gas safety cabinets with long cross-cabinet HSR cable routes
• Fossil power plant boiler BMS and gas turbine SIL3 racks with dual redundant plant LAN HMI connectionsThis upgraded X-revision coprocessor supports modern HIMA operating systems, stabilizes long HSR cable signal performance, and segregates non-safety network load onto dedicated hardware to avoid safety logic cycle violations.

Hardware Architecture & Under-the-Hood Logic

This module runs independent 32-bit communication processing separated from the QMR safety CPU core; enhanced signal conditioning circuitry on HSR transceiver resolves long-cable reflection issues seen on base hardware.

1. QMR main CPU writes SIF states, process values and fault codes to shared dual-port RAM on F8627X every fixed safety scan cycle.
2. MPC860T coprocessor pulls buffered data and independently processes two isolated traffic streams: HSR cross-rack safety ring and external Modbus TCP plant LAN.
3. Upgraded isolated HSR transceiver adds built-in impedance matching to suppress signal reflection on HSR cables exceeding 15m length.
4. Isolated Ethernet PHY chip transmits non-safety SOE/alarm data to plant LAN without cross-contaminating safety backplane noise.
5. Cyclic self-test and hardware watchdog flag port short/open faults and internal processor mismatch to the rack QMR safety CPU.
6. Front panel 6-status LED array displays RUN, Ethernet link, HSR ring activity and internal fault flags for quick cabinet diagnostics without laptop connection.

Field Service Pitfalls: What Rookies Get Wrong

Installing Base Revision Instead Of F8627X On OS V7.0+ Racks

New technicians stock spare hardware and swap it into upgraded OS racks. Legacy lacks required firmware hardware support, module fails to initialize and triggers rack MAJOR FAULT, cutting all cross-cabinet HSR safety data sync.Field Rule: Only deploy F8627X for all H41q/H51q racks running OS V7.0-7 or newer; label spare stock to separate / F8627X part numbers.

Missing HSR Ring Termination DIP Switch Setting

Crews leave DIP termination switches defaulted OFF on end-node F8627X modules. Unterminated HSR ring signals reflect down long offshore cable runs, causing cyclic communication dropouts and persistent QMR voting mismatch faults.Quick Fix: Set DIP termination switch ON for the two physical end nodes of every HSR ring; set OFF for all intermediate rack units.

Dual-End Shield Grounding On HSR/Ethernet Cabling

Field crews ground shield braid at both cabinet and remote junction box for HSR ring cables. Plant ground potential difference injects 50Hz hum that corrupts synchronous safety bus frames and triggers constant FAULT alarms.Field Rule: Use HIMA specified shielded HSR extension cable; terminate shield drain wire solely at the main CPU rack side, cap and insulate remote cabinet cable shield end.
