Component Snapshot At-a-Glance
- Model: Triconex 3510
- Alt. P/N: No direct drop-in OEM cross; upgraded replacement = 3511
- Product Series: Tricon V8/V9 Legacy SIL3 TMR Safety I/O Rack Family
- Hardware Type: Triple Modular Redundant AC coupled pulse input PCB, single slot hot swappable rack mount
- Key Feature: Hardwired AC input front-end blocks DC offset to prevent saturation from stray field DC voltage
- Primary Field Use: Collect low-frequency sine wave pulses from passive magnetic speed pickups for turbine and compressor overspeed safety interlocks

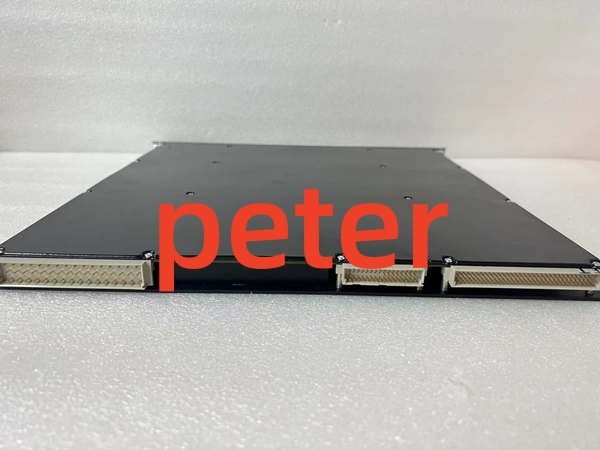

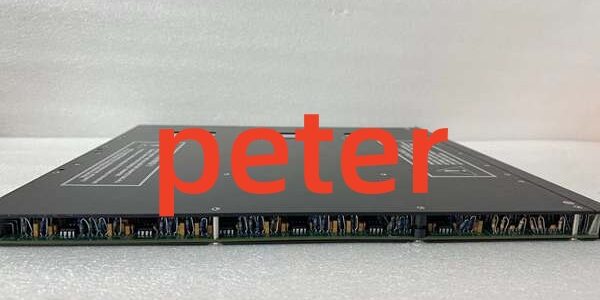

TRICONEX 3511
Hard-Numbers: Technical Specifications
- Protocol Support: Proprietary Tricon TMR backplane bus only, no onboard fieldbus or Ethernet ports
- Port Count: 8 fully isolated differential pulse input channels per single card
- Baud/Data Rate: 20Hz minimum to 20kHz maximum input frequency range, 1μs pulse sampling resolution
- Operating Temperature: 0°C to +60°C continuous rated operation; -40°C to +85°C storage range
- Isolation Rating: 1500VAC reinforced galvanic isolation between field wiring and internal TMR logic circuits
- Power Draw: 760mA typical draw at 5VDC backplane input, ~3.8W total power consumption per module
- Input Trigger Level: Minimum 500mVpp sine wave threshold for valid pulse detection
- Certifications: IEC61508 SIL3, UL Class I Div 2, ATEX Zone 2 hazardous area listing
The Real-World Problem It Solves
Standard discrete DI cards cannot filter DC drift present on passive pickup wiring, triggering random false overspeed trips during large motor startup transients in process facilities. Plant crews previously added external signal conditioners, which created uncertified single point failure paths outside SIL rated safety boundaries.Where you’ll typically find it:
- Refinery steam turbine ESD panels tracking shaft RPM via gear tooth passive magnetic pickups
- Mid-speed reciprocating compressor HIPPS cabinets for overspeed shutdown interlock monitoring
- Coal-fired power plant auxiliary feed pump safety racks for low-frequency pulse flow meter accumulationThis card eliminates external conditioning hardware and keeps all pulse signal processing within certified Tricon safety hardware limits.
Hardware Architecture & Under-the-Hood Logic
This card contains three fully independent processing legs with separate analog front ends, no shared signal paths across TMR cores to limit single component failure impact.
- Incoming sine wave pulses pass through onboard AC blocking capacitors to strip unwanted DC bias before signal splitting.
- Filtered signals divide equally to three discrete isolated amplifier circuits on separate PCB layers.
- Each TMR leg runs standalone pulse counter hardware with independent timing crystals to avoid cross leg clock drift.
- Three raw frequency readings feed internal hardware voter; 2-out-of-3 majority value gets selected for backplane transmission.
- Built-in per-channel diagnostics scan for open wire, short circuit or insufficient signal amplitude, flagging faults via front panel LED and TriStation software logs.

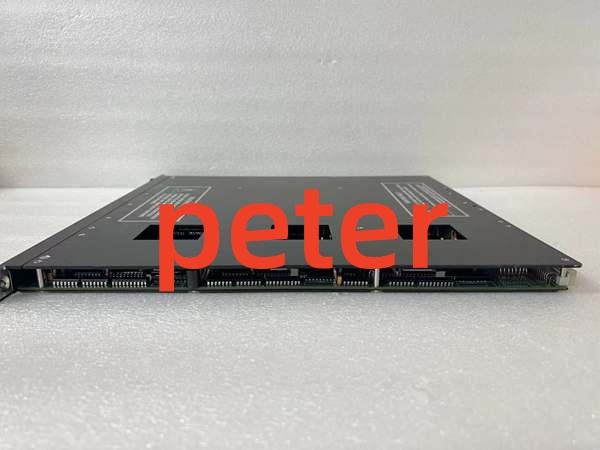

TRICONEX 3511
Field Service Pitfalls: What Rookies Get Wrong
Dual-End Grounded Pickup Shield CablingNew technicians ground cable braid both at cabinet marshalling terminal and field pickup housing, creating ground loop current that injects 50/60Hz noise and erratic RPM spikes.
- Field Rule: Terminate cable shield exclusively at control cabinet ground bar; leave field device end shield insulation intact and floating ungrounded.
Excessive Pickup-To-Gear Air Gap SettingsField crew sets magnetic pickup gap over 1.5mm, dropping generated sine amplitude below 500mVpp minimum trigger and resulting in intermittent missing pulse counts or zeroed speed readings.
- Quick Fix: Set pickup gap between 0.8mm–1.2mm per sensor datasheet; verify AC mV output with handheld multimeter before terminating to 3510 terminals.
Repurposing Standard DI DC Wiring For Pulse Input RunsImprovised wiring with leftover discrete DC cable feeds DC bias directly into AC coupled input stages, saturating front-end circuitry and blanking all channel pulse detection permanently.
- Field Rule: Deploy dedicated shielded twisted pair pulse grade wire exclusively; never reuse existing DI field wiring for 3510 pickup circuits.
