Product Core Brief

• Model: IOC16T — 200-565-000-013 / 200-565-101-013
• Brand: VIBRO / Vibro-Meter
• Series: VM600 Machine Protection & Condition Monitoring System
• Core Function: I/O interface module for the CMC16 condition monitoring card in VM600 racks.
• Product Type: VM600 I/O Expansion Module
• Key Specs: 16 dynamic channels | 4 tachometer channels | CMC16 paired module | VM600 rack-compatible
• Condition: New Surplus

Product Introduction

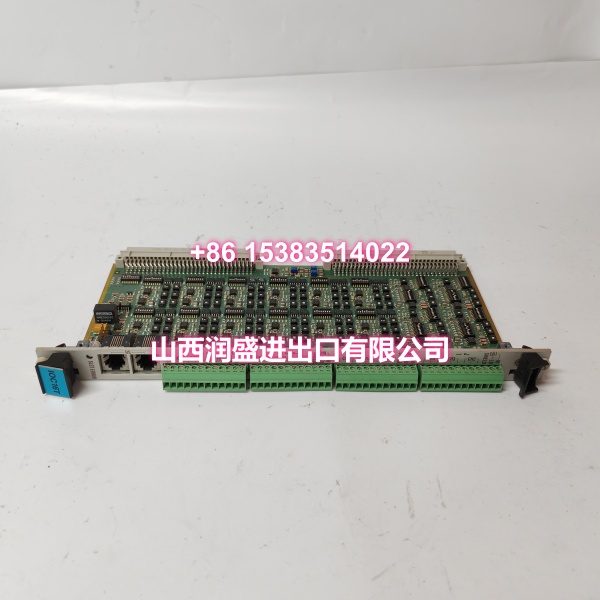

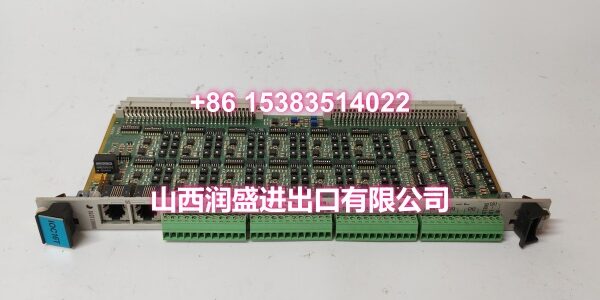

VIBRO VM600 IOC16T is an I/O interface module used with the CMC16 condition monitoring card in Vibro-Meter VM600 racks. It brings 16 dynamic measurement channels and 4 tachometer channels into the condition monitoring system for vibration, speed, and process signal acquisition.

This module is installed as a paired card with the CMC16 and communicates through the VM600 backplane. It is commonly used on turbines, compressors, generators, and other critical rotating equipment where high-density vibration monitoring is required. The two part numbers listed represent revision or configuration variants; always confirm the exact nameplate before installation.

Key Technical Specifications

Note: Exact electrical ratings, input types, and revision differences between 200-565-000-013 and 200-565-101-013 should be confirmed against the official Vibro-Meter datasheet.

Quality Control Process

Each unit starts with a visual inspection of the front panel, connectors, PCB, and rear mating contacts for corrosion, bent pins, or thermal stress. The module is then seated into a compatible VM600 rack behind the associated CMC16 card to verify mechanical fit and paired-card recognition.

Power is applied through the rack supply, and initialization LEDs are checked for proper startup behavior. Dynamic channel integrity is verified with a precision signal source and Fluke multimeter to confirm input response and isolation. Tachometer channels are exercised with simulated speed signals to confirm pulse detection. Backplane communication is tested to ensure the paired CMC16/IOC16T set is recognized by the rack controller. Final packing uses anti-static bags, foam inserts, and sealed cartons to protect the module during shipment.

Replacement Pitfall Guide

❗ Confirm the exact part number and revision. The 200-565-000-013 and 200-565-101-013 variants may differ in firmware, channel configuration, or hardware revision. Swapping without verification can cause missing channels or configuration mismatches.

❗ Verify the CMC16 pairing. The IOC16T is not a standalone module—it must be paired with the correct CMC16 card in the VM600 rack. Installing it behind the wrong processing card will prevent proper channel mapping.

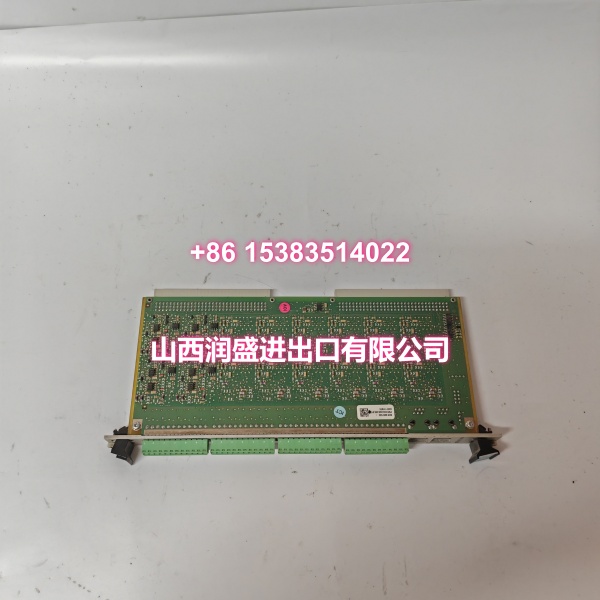

❗ Check rear connector alignment. Since this module mounts at the rear of the rack, bent rear pins or misaligned connectors can cause intermittent channel failures that look like sensor faults.

❗ Revalidate channel mapping after replacement. Dynamic channel assignments, tachometer configuration, and alarm routing may need to be reconfirmed in VibroSight or MPS software. A replaced module with incorrect mapping can report wrong measurement points.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmark notes:

• 16 dynamic channels + 4 tachometer channels for high-density condition monitoring.
• Paired operation with CMC16 in VM600 19″ racks for vibration and speed acquisition.
