Product Core Brief

• Model: 5501-470
• Brand: WOODWARD
• Series: 5501-Series Governor Control Module (GCM)
• Core Function: Digital speed and power control for industrial turbines, generators, and rotating equipment.
• Product Type: Governor Control Module / Turbine Speed & Power Controller
• Key Specs: 24 V DC supply | DIN-rail mount | Software-configurable control parameters | Status LEDs | Direct actuator control
• Condition: New Original / New Surplus (verify per lot)

Key Technical Specifications

• Module type: Governor Control Module (GCM)
• Application: Turbine speed and power control for steam turbines, gas turbines, turbo-generators, and industrial rotating equipment.
• Control function: Digital speed and power regulation with software-configurable PID parameters.
• Power supply: 24 V DC.
• Mounting: DIN-rail mount panel installation.
• Communication: Direct control; no dedicated network protocol listed in available references.
• Status indication: Front-panel status LEDs for module health and control activity.
• Operating temperature: -40 °C to +70 °C.
• Standards: Conforms to CE and IEC 61131-2 related standards per available listings.
• Dimensions (reference): 99.1 mm W × 200.7 mm H × 30.5 mm D.
• Weight (reference): Approximately 0.27 kg.
• Configuration: Software-configurable control parameters to match turbine and process requirements.



Product Introduction (No Fluff)

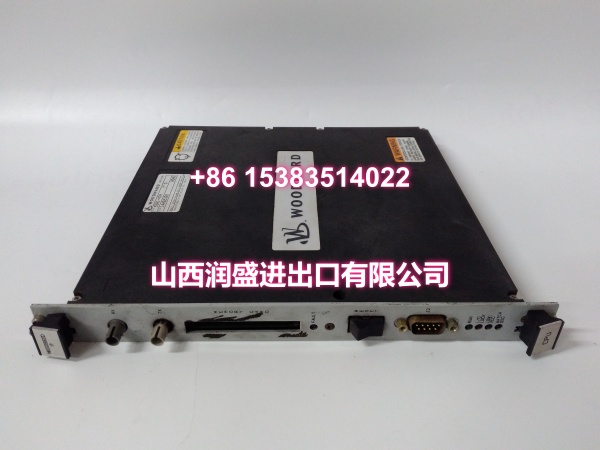

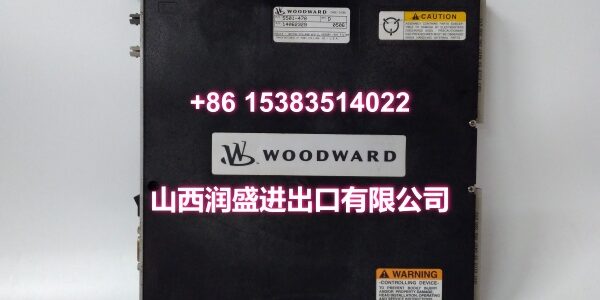

The WOODWARD 5501-470 is a Governor Control Module designed for turbine speed and power control in industrial applications. It provides configurable PID-based regulation and direct actuator drive, making it suitable for integration into turbine governor panels, generator sets, and process drive systems.

For system integrators and plant engineers, this module offers a compact DIN-rail-mounted alternative to larger panel controllers. Its 24 V DC supply, status LEDs, and software-configurable parameters simplify panel design, commissioning, and replacement of aging governor hardware.



QA & Testing SOP (Dynamic & Transparent)

1. Visual & counterfeit inspection — Verify part number, revision markings, connector condition, and signs of rework, corrosion, or heat damage.
2. ESD-safe handling — Stored and shipped in anti-static packaging; handled with grounded wrist straps and ESD mats.
3. Power-up check — Apply rated 24 V DC, confirm module boot, and verify status LED behavior.
4. Configuration access — Confirm the module accepts configuration parameters and responds to software tools where applicable.
5. Output sanity check — Where test equipment permits, verify control output presence and response. Full turbine-loop validation is completed during site commissioning.

Note: Bench testing confirms module health. Final speed/power tuning requires the actuator, speed pickup, and process instrumentation.



Installation Pitfalls & Guide (Engineer to Engineer)

❗ Confirm 24 V DC supply before energizing. This module is listed as a 24 V DC device. Do not apply 110 V AC or 220 V AC without verified nameplate confirmation.

❗ Do not hot-swap during active turbine operation. Removing or replacing a governor control module while the turbine is online can cause loss of speed or power control.

❗ Verify actuator compatibility. The control output range, polarity, and fail-safe behavior must match the existing actuator or servo valve.

❗ Grounding and noise discipline matter. Route speed pickup, actuator, and analog signal cables away from VFD outputs, contactor coils, and high-current feeds.

Replacement steps:

1. Pre-install: Lock out energy sources, confirm the turbine is tripped/secured, and record existing configuration parameters.
2. Removal: Label wiring, photograph terminal assignments, disconnect I/O, then remove the module.
3. Install: Seat the replacement on the DIN rail, reconnect I/O with correct polarity, and verify grounding.
4. Power-on test: Apply 24 V DC, confirm status LEDs, verify configuration, then recommission under controlled conditions.



Technical FAQ

Is the 5501-470 a 505E controller? No. Available references describe it as a 5501-series Governor Control Module, not a 505E front-panel controller. It is typically used as a governor control or servo control module within a turbine control system.

What voltage does it require? Listed specifications indicate 24 V DC. Always confirm against the actual nameplate before installation.

Can it communicate over Modbus or Ethernet? Available references describe it as direct control without a listed communication protocol. If network integration is required, confirm the system architecture and whether a separate communication module or host controller is used.

Can I replace it without reprogramming? Not automatically. Control parameters, actuator limits, speed setpoints, and I/O assignments must be verified. Treat replacement as a recommissioning event.

Is it suitable for harsh environments? It is listed with a -40 °C to +70 °C operating range and DIN-rail mounting, which suits many industrial turbine panels. Still confirm environmental ratings against the nameplate and site requirements.
