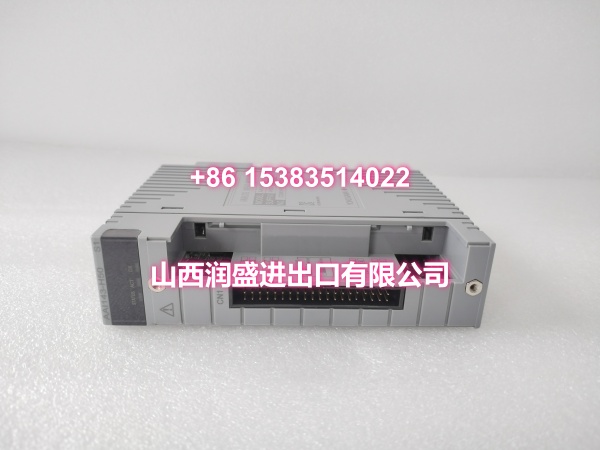

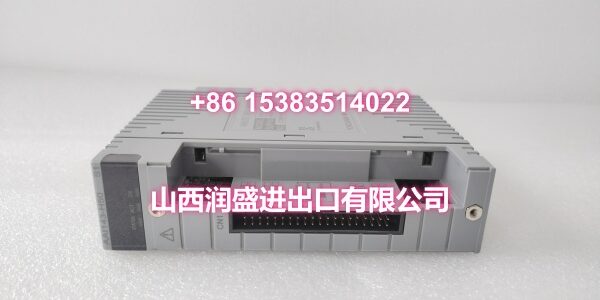

Product Core Brief
- Model: AAI143-H50 S1
- Brand: YOKOGAWA
- Series: CENTUM VP / CS 3000 Analog I/O
- Core Function: 16-channel channel-isolated 4–20 mA analog input with HART communication for CENTUM VP/CS 3000 FCS.
- Product Type: DCS Analog Input Module
- Key Specs: 16 channels | 4–20 mA DC | Channel isolation | HART protocol | Non-explosion-proof
- Condition: New Original (New Surplus) / Factory Sealed
Product Introduction
Ground loops and cross-channel noise are the quiet killers of analog input reliability. The is a YOKOGAWA CENTUM VP/CS 3000 16-channel, 4–20 mA analog input module with channel-to-channel isolation and HART protocol support. That combination makes it a strong fit for process loops where smart transmitter diagnostics and electrical separation both matter.
For maintenance and procurement teams, this module helps reduce troubleshooting time. Channel isolation limits fault propagation and interference between loops, while HART communication allows device-level diagnostics without adding a separate gateway. The “S1” suffix indicates a specific configuration or revision; terminal interface options such as /K4A00, /A4S00, or /A4D00 should be confirmed against the physical label before installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Model | S1 |
| Product Type | Analog Input Module |
| Compatible System | YOKOGAWA CENTUM VP / CS 3000 DCS |
| Signal Range | 4–20 mA DC |
| Channel Count | 16 channels |
| Isolation | Channel-to-channel isolation |
| Digital Communication | HART protocol |
| Explosion Protection | Non-explosion-proof (-5) |
| Option Code | May include /K4A00, /A4S00, /A4D00, or other terminal interface variants; verify on label |
| Typical Application | Process temperature, pressure, flow, and level inputs with smart device diagnostics |
Key Selling Points & Differentiators
- Channel-isolated 4–20 mA inputs: Helps prevent ground loops and reduces cross-channel interference in noisy plants.
- HART-enabled diagnostics: Supports smart transmitter communication over the same analog loop.
- 16-channel density: Consolidates more loops per FCS slot without losing isolation.
- Direct CENTUM VP/CS 3000 fit: Designed for YOKOGAWA FCS racks, making it a practical OEM replacement for maintenance or spares.
- Not recommended for: Non-isolated replacements where wiring or terminal adapters differ, 1–5 V DC or ±10 V inputs, explosion-proof zones, or systems that require a specific /K4A00, /A4S00, or /A4D00 interface. Always confirm the exact option code before ordering.
Quality Transparency SOP
Surplus isolated analog input modules should be verified electrically, not just visually.
- Incoming visual QA: Inspect factory sealing, label integrity, connector pins, PCB condition, and corrosion indicators.
- Isolation verification: Use a Fluke multimeter or insulation tester to confirm channel-to-channel and channel-to-ground isolation before power-up.
- Bench signal verification: Apply a calibrated 4–20 mA source and check offset, span, and linearity across multiple channels.
- HART communication check: Verify HART recognition on at least one channel using a HART communicator or simulator.
- Final packing: Record serial/lot information, apply anti-static packaging, and seal with a condition label.
Technical Risk Avoidance
Confirm the exact option code. The AAI143-H50 S1 may ship with different terminal interface options. Installing it with the wrong adapter can create wiring mismatches.
Do not substitute blindly for AAI141-H50. The AAI143-H50 is channel-isolated; the AAI141-H50 is non-isolated. Swapping between them can introduce ground-loop or noise problems.
Verify HART loop impedance. HART communication requires adequate loop resistance. Too low a load can cause unstable device communication.
Check FCS slot and engineering configuration. Confirm tag mapping, HART enablement, and slot assignment in the CENTUM VP/CS 3000 project before inserting the module into a live rack.
Buyer’s FAQ
Is this module genuine YOKOGAWA?
Yes. The is an OEM YOKOGAWA CENTUM VP/CS 3000 analog input module. We supply it as new original/new surplus unless otherwise stated.
What does the S1 suffix mean?
“S1” typically indicates a specific configuration, revision, or packaging variant. Because option codes can vary, confirm the exact label and terminal interface before installation.
Does it support HART?
Yes. The -H50 suffix indicates HART protocol support on a 16-channel, 4–20 mA isolated analog input module.
Can I replace an AAI141-H50 with this module?
Only after engineering review. The AAI143-H50 is channel-isolated, while the AAI141-H50 is non-isolated. Substitution may affect grounding, noise, and loop behavior.
What is the warranty and lead time?
Each module carries a standard 12-month functional warranty from shipment, excluding damage from incorrect installation or mismatched terminal adapters. In-stock units typically ship within 1–3 business days after payment confirmation.
