Product Core Brief

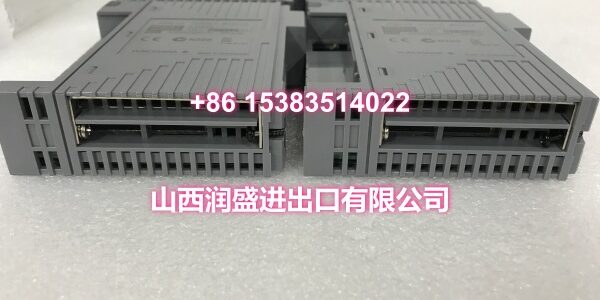

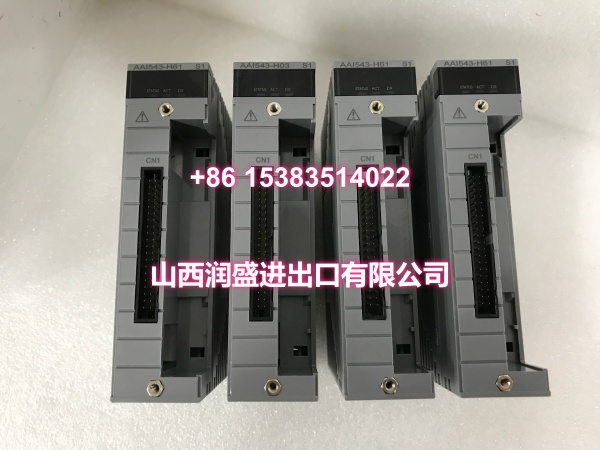

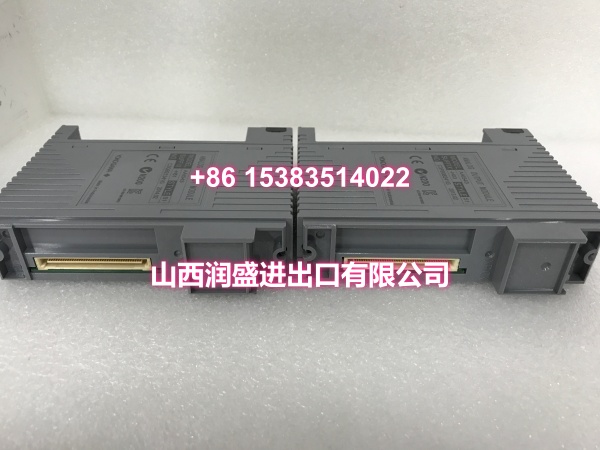

- Model: YOKOGAWA AAI543-H50 S1
- Brand: YOKOGAWA
- Series: CENTUM CS 3000 / AAI543 Analog Output Series
- Core Function: Provides 16 isolated 4–20 mA analog outputs with HART digital communication for CENTUM CS 3000 DCS systems.
- Product Type: DCS Analog Output Module
- Key Specs: 4–20 mA | 16 isolated channels | HART protocol | 0–750 Ω load | standard switchover redundancy | basic type
- Condition: New Original (New Surplus) / Factory Sealed
Product Introduction
When a control valve loses its output signal, the whole loop can drift into an unsafe state. The YOKOGAWA AAI543-H50 S1 is a 16-channel isolated 4–20 mA analog output module for CENTUM CS 3000 DCS, designed to drive field devices such as control valves, I/P converters, and variable-speed drives while retaining HART digital communication for diagnostics and configuration.
The “-H” suffix means this module supports HART protocol over the 4–20 mA loop, and the “50” suffix indicates standard switchover response in redundant configuration with no explosion protection, basic type. The “S1” is the style revision. That makes this unit a direct match for systems that already rely on HART device access. For plants running smart positioners or transmitters, keeping one sealed spare can prevent days of procurement delay during a card failure.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | AWA S1 |
| Product Type | Analog Output Module (DCS) |
| Compatible System | CENTUM CS 3000 series |
| Output Signal | 4–20 mA |
| Channels | 16 isolated channels |
| HART Communication | Supported |
| Redundancy | Dual-redundant, standard switchover response |
| Explosion Protection | No explosion-protection option |
| Allowable Load Resistance | 0–750 Ω |
| Circuit-Open Detection | < 0.65 mA |
| Withstanding Voltage | 1500 V AC, 1 min (output vs system) |
| Style Revision | S1 |
Key Selling Points & Differentiators
- HART-enabled 16-channel AO module for CENTUM CS 3000 systems requiring digital device access.
- Isolated channels reduce ground-loop interference and improve output stability.
- Standard switchover redundancy supports dual-module configurations without explosion-protection requirements.
- Direct replacement for existing AAI543-H50 installations with S1 style revision.
- Factory-sealed surplus inventory with visual QA and 12-month warranty.
- Not recommended for systems that do not require HART and need fast switchover or explosion-protected redundancy; consider AAI543-S6x or AAI543-SE/F variants instead.
Quality Transparency SOP
- Visual inspection: Verify label, suffix code “-H50,” style “S1,” connector pins, and housing for moisture, corrosion, or handling damage.
- Seal verification: Confirm original anti-static bag, desiccant, and factory labeling before opening.
- Backplane power check: Verify 5 VDC and 24 VDC rails before insertion to avoid unstable channel behavior.
- Channel output test: Use a Fluke multimeter and a precision 250 Ω / 500 Ω load box to verify 4 mA, 12 mA, and 20 mA outputs across multiple channels.
- HART communication check: Validate HART signaling with a HART communicator or loop calibrator to confirm digital communication is active on each channel.
- Isolation test: Perform insulation resistance and dielectric checks between output channels and system ground per Yokogawa specifications.
Technical Risk Avoidance
❗ Confirm the full suffix before ordering. AAI543-H50 S1 is a HART module with standard switchover redundancy and no explosion protection. It is not a direct replacement for AAI543-S50, AAI543-S60, AAI543-SE, or AAI543-SF variants when redundancy speed or explosion protection differs.
❗ Check your node unit and backplane power budget. Fully loaded 16-channel HART output modules can draw significant 24 VDC current.
❗ Verify the terminal board and cable type. Depending on wiring, the module may require AEA4D terminal boards with KS cable, MIL connector cable, or pressure-clamp terminals.
❗ In redundant configurations, ensure both modules share the same suffix code. Mismatched cards can prevent proper switchover or cause output drops during failover.
Buyer’s FAQ
Is the YOKOGAWA AAI543-H50 S1 a genuine OEM part?
Yes. It is an original Yokogawa AAI543 series analog output module supplied as new surplus, factory sealed when available. We do not rebrand or relabel third-party substitutes.
What does “H50 S1” mean?
“-H” means HART digital communication is supported. “5” means standard switchover response in redundant configuration with no explosion protection. “0” means basic type. “S1” is the style revision.
Is this new, refurbished, or used?
Listed as new original surplus. If the factory seal is intact, it ships sealed. If the seal was previously opened for inspection, the listing will state it clearly.
Can I replace an AAI543-S50 with this module?
Functionally yes for 4–20 mA output, but the H50 adds HART communication. If your system does not use HART, the -S50 may be sufficient. If your system requires fast switchover or explosion-protected redundancy, this -H50 variant is not a match.
What warranty do you offer?
A 12-month warranty against manufacturing defects and DOA issues. Damage from incorrect wiring, overvoltage, backplane faults, or mismatched system configuration is not covered.
