Product Core Brief
- Model: YOKOGAWA AAI543
- Brand: YOKOGAWA
- Series: CENTUM CS 3000 / AAI543 Analog Output Series
- Core Function: Provides 16 isolated 4–20 mA analog outputs for driving valves, positioners, and actuators in CENTUM CS 3000 DCS systems.
- Product Type: DCS Analog Output Module
- Key Specs: 4–20 mA | 16 isolated channels | ±48 µA accuracy | 10 ms update | 0–750 Ω load | standard switchover redundancy
- Condition: New Original (New Surplus) / Factory Sealed
Product Introduction

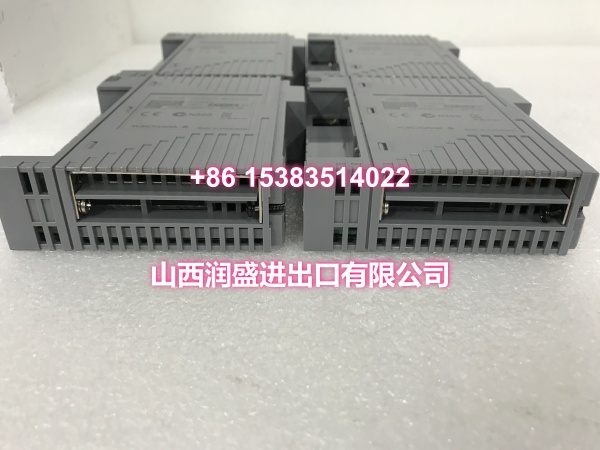

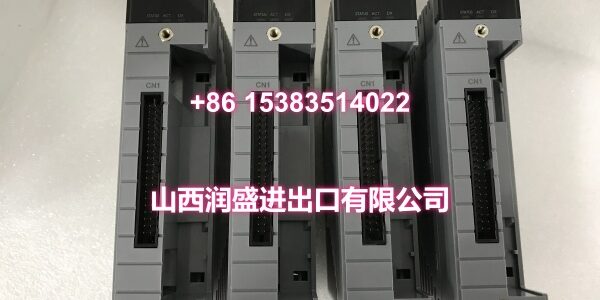

A single failed analog output card can park a control valve and stop a production line. The YOKOGAWA AAI543 is a 16-channel 4–20 mA analog output module for CENTUM CS 3000 DCS, used to command field devices such as control valves, I/P converters, and variable-speed drives with isolated current outputs.
This module family covers multiple suffix options, including standard non-HART variants and HART-enabled variants, with different redundancy and environmental options. For straightforward 4–20 mA output loops, the AAI543 delivers ±48 µA accuracy, 10 ms data update, and support for dual-redundant configurations with standard or fast switchover depending on the suffix. Keeping the correct sealed spare on hand can cut unplanned downtime from days to minutes.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Family | YOKOGAWA AAI543 |
| Product Type | Analog Output Module (DCS) |
| Compatible System | CENTUM CS 3000 series |
| Output Signal | 4–20 mA |
| Channels | 16 isolated channels |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Allowable Load Resistance | 0–750 Ω |
| Circuit-Open Detection | < 0.65 mA |
| Withstanding Voltage | 1500 V AC, 1 min (output vs system) |
| Redundancy | Dual-redundant, standard or fast switchover depending on suffix |
| HART Communication | Supported only on -H suffix variants |
Key Selling Points & Differentiators
- Exact replacement for CENTUM CS 3000 systems requiring a 16-channel 4–20 mA AO card.
- Isolated channels reduce ground-loop noise and improve loop stability.
- ±48 µA accuracy and 10 ms update support stable valve positioning and process control.
- Supports dual-redundant configurations; switchover speed depends on suffix selection.
- Factory-sealed surplus inventory with visual QA and 12-month warranty.
- Not recommended for projects that require HART device configuration unless a -H suffix variant is selected.
Quality Transparency SOP
- Visual inspection: Check label, suffix code, style number, connector pins, and housing for moisture, corrosion, or handling damage.
- Seal verification: Confirm original anti-static bag, desiccant, and factory labeling before opening.
- Backplane power check: Verify 5 VDC and 24 VDC rails before insertion; power consumption varies by suffix and configuration.
- Channel output test: Use a Fluke multimeter and a precision 250 Ω / 500 Ω load box to verify 4 mA, 12 mA, and 20 mA outputs across multiple channels.
- Isolation test: Perform insulation resistance and dielectric checks between output channels and system ground per Yokogawa specifications.
Technical Risk Avoidance
❗ Confirm the full suffix before ordering. AAI543 includes standard, HART, redundancy, and environmental variants; mismatched suffixes can cause functional gaps.
❗ Check your node unit and backplane power budget. Fully loaded 16-channel output modules can draw significant 24 VDC current.
❗ Verify the terminal board and cable type. Depending on wiring, the module may require AEA4D terminal boards with KS cable, MIL connector cable, or pressure-clamp terminals.
❗ In redundant configurations, ensure both modules share the same suffix code. Mismatched cards can prevent proper switchover or cause output drops during failover.
Buyer’s FAQ
Is the YOKOGAWA AAI543 a genuine OEM part?
Yes. It is an original Yokogawa AAI543 series analog output module supplied as new surplus, factory sealed when available. We do not rebrand or relabel third-party substitutes.
What suffix options are available?
AAI543 covers standard -S and HART -H variants, with different redundancy and environmental options such as basic type, ISA G3 coating, and extended temperature ranges.
Is this new, refurbished, or used?
Listed as new original surplus. If the factory seal is intact, it ships sealed. If the seal was previously opened for inspection, the listing will state it clearly.
Can I replace any AAI543 card with this module?
Only if the suffix matches your application. A non-HART -S variant cannot replace an -H variant when HART communication is required.
What warranty do you offer?
A 12-month warranty against manufacturing defects and DOA issues. Damage from incorrect wiring, overvoltage, backplane faults, or mismatched system configuration is not covered.
