Product Core Brief

• Model: ABE040 204-040-100-011
• Brand: VIBRO-METER
• Series: VM600 ABE04x
• Core Function: 19″, 6U system rack that houses VM600 machinery protection and condition monitoring modules with a VME-based backplane.
• Product Type: VM600 system rack / chassis
• Key Specs: 15 front slots | VME backplane | supports RPS6U power supply | compatible with MPC4, AMC8, CMC16, CPUM, XMV16, IOC4T, IOCN, RLC16, XIO16T
• Condition: New original / new surplus — confirm revision and included accessories

Product Introduction

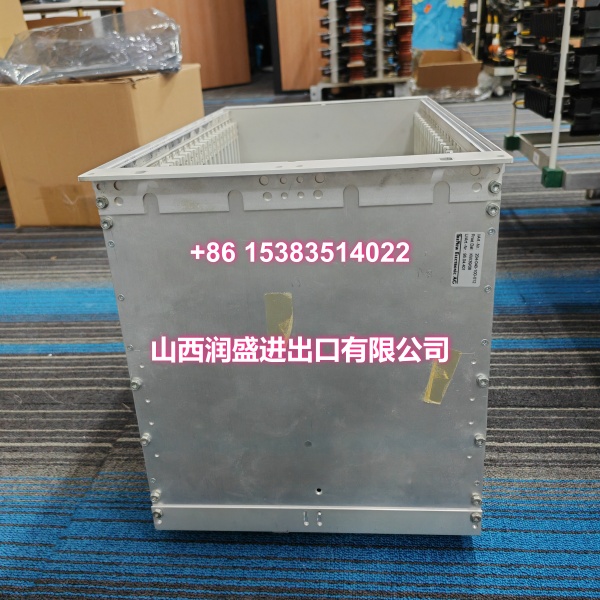

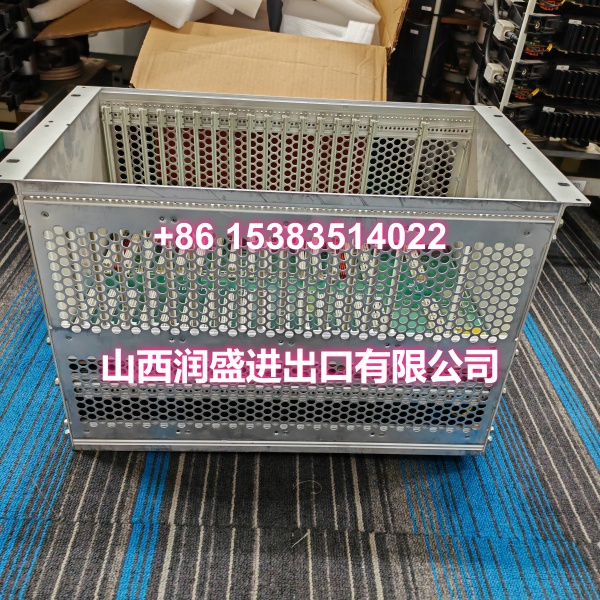

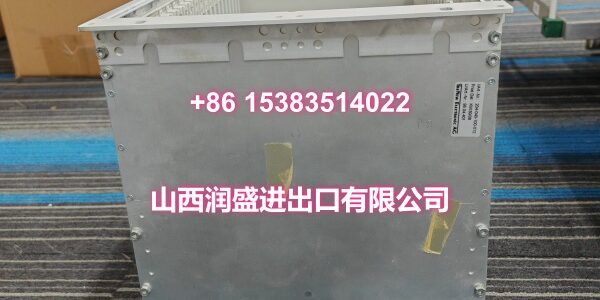

The VIBRO-METER VM600 ABE040 204-040-100-011 is a 19-inch, 6U system rack for the VM600 machinery protection and condition monitoring platform. It provides the mechanical structure, backplane interconnection, and power distribution required to build a complete VM600 rack-based monitoring system.

The ABE040 rack supports up to 15 front slots for VM600 processing, communication, and I/O modules. Its backplane carries the VME bus along with signal, speed, and relay buses, enabling MPC4, AMC8, CMC16, CPUM, XMV16, XIO16T, IOC4T, IOCN, RLC16, and related cards to operate as an integrated system. Power is supplied through one or two RPS6U rack power modules, with redundant configuration available for higher availability.

Note: The suffix in 204-040-100-01X may vary by revision. Always verify the exact label marking, included accessories, and whether power modules, blanking plates, or rear I/O cards are included.

Key Technical Specifications

• Part number: 204-040-100-011
• Product family: VM600 ABE040
• Rack format: 19″, 6U system rack
• Frame height: 265.9 mm (6U)
• Slot capacity: 15 front slots for VM600 modules
• Backplane: VME bus with signal, speed, and open relay buses
• Power supply: 1× or 2× RPS6U modules (AC or DC input variants)
• Power outputs via RPS6U: +5 VDC and ±12 VDC
• Compatible modules: MPC4, MPC4SIL, AMC8, CMC16, CPUM, XMV16, XIO16T, IOC4T, IOCN, RLC16, IRC4
• Rear I/O: IOC/IOCN/XIO cards mounted at the rear of the rack
• Construction: Aluminum frame with hardened aluminum structural parts
• Protection rating: Typically IP20 for installed rack systems
• Operating temperature: -25°C to +65°C per legacy documentation; some later VM600 references list 0°C to +70°C — confirm per revision
• Storage temperature: -40°C to +85°C
• Humidity: Up to 95% non-condensing
• Vibration: 10 Hz to 55 Hz, 0.35 mm peak
• Shock: 15 g peak, 11 ms half-sine pulse per legacy spec
• Frame weight: Approximately 6.5 kg without power supply and modules
• Mounting: Panel-mount 19″ rack installation

Quality Control Process (Dynamic for System Rack)

• Nameplate verification: Confirm 204-040-100-011, revision suffix, and manufacturing data.
• Structural inspection: Check 19″ mounting ears, card guides, rear I/O area, and backplane alignment.
• Backplane inspection: Verify VME connectors, signal buses, and slot contacts for bent pins or corrosion.
• Power slot check: Confirm RPS6U power module slots and rear power interface are intact.
• Slot completeness: Ensure all unused slots have blanking plates to maintain airflow and EMC performance.
• Compatibility check: Verify intended VM600 modules match ABE040 slot width and rear I/O requirements.
• Packing: Protect front/rear connectors, secure frame with foam, and ship in a rigid carton or crate.

Replacement Pitfall Guide

❗ Do not confuse ABE040 with ABE042 or ABE056. ABE040/ABE042 are 15-slot 6U racks, while ABE056 is a slimline variant with different slot arrangements.

❗ Do not assume the rack includes power modules. RPS6U units are typically ordered separately unless explicitly included.

❗ Verify the revision suffix. The 204-040-100-01X series may have minor hardware or accessory differences across revisions.

❗ Confirm rear I/O card compatibility. MPC4 requires IOC4T, CPUM requires IOCN, and XMV16/XMC16 require XIO16T at the rear.

❗ Check blanking plates. Missing blanking plates can affect cooling, dust protection, and EMC performance.

❗ Record existing rack configuration before migration. Slot positions, relay mappings, and backplane wiring should be documented to avoid configuration errors.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks: 19″ 6U VM600 system rack; 15-slot VME backplane; supports MPC4, AMC8, CMC16, CPUM, XMV16, XIO16T, IOC4T, IOCN, RLC16; RPS6U single or redundant power; aluminum frame; IP20-class installation; hot-swappable modules.
