Product Core Brief

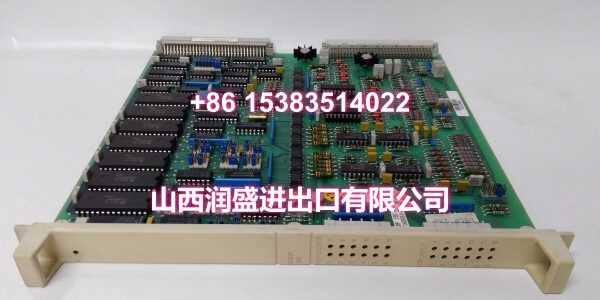

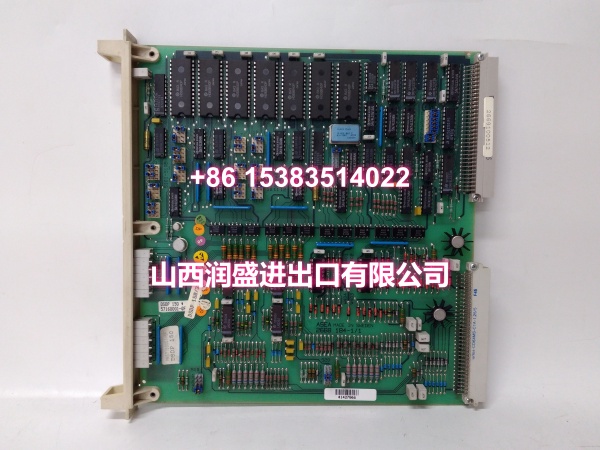

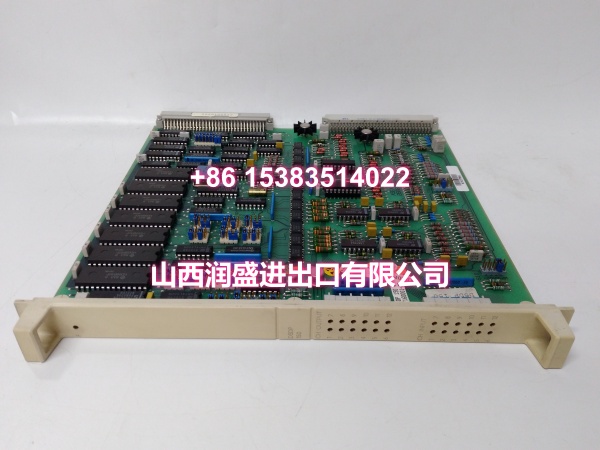

• Model: DSDP150
• Brand: ABB
• Series: Advant Master S100 I/O
• Core Function: Pulse counting module for ABB Advant Master S100 I/O system, supporting pulse counting and frequency measurement applications.
• Product Type: Pulse Counting Module
• Key Specs: S100 rack plug-in format | 5/12/24 V DC pulse inputs | Up to 12 channels, max 10 kHz | Requires S100 connection unit
• Condition: New Original / New Surplus

Key Technical Specifications

• Function: Pulse counting and frequency measurement
• Compatible systems: ABB Advant Master, Advant Controller 400 series (AC 410 / AC 450)
• Pulse input voltage levels: 5 / 12 / 24 V DC
• Channel count: up to 12 channels
• Maximum frequency: 10 kHz
• Installation: S100 I/O rack plug-in module with connection unit
• On-board processing: time tagging, event handling, filtering
• Hot-swap: supported
• Operating temperature: 0 to +55 °C typical for S100 modules
• Origin: Switzerland

Product Introduction (No Fluff)

This is an ABB Advant Master S100 I/O pulse counting module. It provides multi-channel pulse counting and frequency measurement capability for the S100 I/O system, accepting 5 / 12 / 24 V DC pulse inputs at up to 10 kHz across up to 12 channels.

The practical value is distributed processing. Like other S100 I/O modules, DSDP150 performs signal processing on-board—time tagging, filtering, and event handling—reducing load on the main controller CPU. It is commonly used in flow metering, production counting, speed measurement, and frequency monitoring applications in legacy Advant Master installations. For plants maintaining mature S100 systems, this module is a targeted spare for pulse counting continuity.

QA & Testing SOP (Dynamic & Transparent)

This is a pulse counting module. Testing covers visual, mechanical, and basic electrical verification—not full channel calibration.

1. Incoming inspection — Verify model DSDP150. Check for cracked PCB, damaged edge connector, corrosion, and label consistency.
2. Connector inspection — Examine backplane mating contacts and front-panel connectors for bent pins, oxidation, or burn marks.
3. Power-up test — Install in a compatible S100 rack, apply system power, and verify normal LED behavior without immediate fault indication.
4. Pulse input spot check — Where test equipment allows, apply a known pulse signal at a compatible voltage level and verify counting accuracy.
5. Packing — Place in anti-static packaging with rigid support to protect connectors during transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Confirm the exact S100 slot and connection unit. DSDP150 requires a compatible S100 termination/connection unit. Using the wrong TU can misroute pulse signals or cause wiring errors.

❗ Do not confuse with DSDP140A or DSDP140B. DSDP140A is a positioning interface module (pulse + DI/DO + AO for one loop, 80 kHz). DSDP140B is a dedicated pulse counter board. DSDP150 is a multi-channel pulse counting module (up to 12 channels, 10 kHz). They serve different application scales and are not interchangeable.

❗ Match pulse input voltage levels. DSDP150 supports 5 / 12 / 24 V DC pulse inputs. Confirm the field signal voltage matches the configured input level before wiring.

❗ Check grounding and shielding. Pulse signals are susceptible to noise. Use shielded cables for pulse input wiring and ensure proper grounding to prevent false counts.

Replacement steps

1. Pre-install: Confirm the S100 slot position and connection unit type. Back up the controller configuration.
2. Removal: DSDP150 supports hot-swap replacement. Follow ABB procedures for live replacement, or remove during a controlled shutdown.
3. Install: Seat the module firmly into the S100 rack and reconnect the termination unit wiring.
4. Verification: Check LED status, verify pulse counting accuracy, and monitor for counting errors for at least 15 minutes.

Technical FAQ

Is this an OEM genuine ABB part? We supply new original and new surplus stock depending on availability. If sealed original packaging is required, confirm before ordering.

Does DSDP150 need configuration? Yes. The module must be configured in the Advant Master controller hardware configuration. For a like-for-like replacement, existing configuration can usually be retained.

Can replace DSDP140A or DSDP140B? No. DSDP150 is a multi-channel pulse counting module (up to 12 channels, 10 kHz), while DSDP140A is a single-loop positioning interface and DSDP140B is a dedicated pulse counter board. They have different functions and channel counts.

What connection unit does it require? It requires a compatible S100 termination/connection unit. The exact TU type depends on wiring style and application. Confirm against your existing rack documentation.
