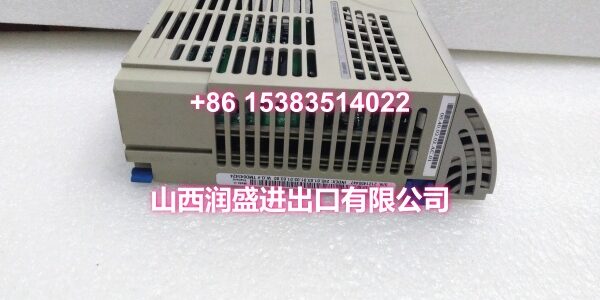

Product Core Brief
- Model: 5X00453G01
- Brand: Emerson (Ovation System, originally Westinghouse)
- Series: Ovation DCS Analog Output Subsystem
- Core Function: Analog output electronics module (E-Module) that converts digital control signals from the Ovation controller into precise analog signals (4-20mA or 0-10V) to drive field actuators such as control valves, VFDs, and servo motors, enabling continuous process regulation.
- Product Type: Analog Output Electronics Module (E-Module)
- Key Specs: 8 Independent Output Channels | 4-20mA / 0-10V Selectable | ±0.1% Full Scale Accuracy | Per-Channel Status LEDs | Hot-Swappable | Software-Configurable (No Jumpers)
- Condition: New Original / New Surplus
Key Technical Specifications
- Module Type: Analog Output Electronics Module (E-Module)
- Output Channels: 8 independent analog output channels, each independently configurable
- Output Signal Types: 4-20mA DC current signal or 0-10V DC voltage signal, software-selectable per channel
- Output Accuracy: ±0.1% of full scale, ensuring precise actuator positioning and process control
- Load Capacity (Current Mode): Maximum load impedance 750Ω
- Load Capacity (Voltage Mode): Minimum load impedance 10kΩ
- Status Indication: Per-channel LEDs and panel diagnostics (P/C/E/I indicators) for quick fault tracing
- Configuration: Software-configurable via Ovation I/O Builder — no jumpers or thumbwheels required
- Power Supply: 24VDC from the Ovation backplane (system-powered, no external logic supply needed)
- Operating Temperature: 0°C to 55°C (control room/industrial cabinet environment)
- Humidity: 5%–95% non-condensing
- Installation: DIN-rail mountable, single-slot Ovation-style module, hot-swappable
- Compatible Personality Modules (PM): Analog output PM variants that provide field-side terminal blocks and signal conditioning — PM determines the actual wiring interface and surge protection
Product Introduction
The 5X00453G01 is the electronics module (E-Module) half of Emerson Ovation’s Analog Output subsystem. It’s the go-to card when you need to translate the controller’s digital setpoints into smooth, proportional analog signals that drive continuous-action field devices — control valves for flow/pressure/level regulation, VFDs for speed control, servo motors for positioning, and analog indicators.
Unlike on/off relay outputs that simply switch a circuit open or closed, analog outputs provide proportional control across a continuous range. The 5X00453G01 converts the controller’s digital value into a corresponding 4-20mA or 0-10V signal with ±0.1% full-scale accuracy, which means your valve stem position or motor speed tracks the setpoint precisely — critical for tight process control loops in power generation, chemical processing, and water treatment applications.
Each of the 8 channels is independently configurable, so you can mix 4-20mA and 0-10V outputs on the same module depending on what each field device requires. The software-configurable design means no jumpers or thumbwheels to set — you define the signal type and scaling in the Ovation I/O Builder, which eliminates configuration errors and speeds up commissioning.
The module features per-channel status LEDs and integrates with Ovation’s panel diagnostic indicators (P for power, C for communication, E for ground fault, I for internal error), giving you immediate visual feedback on module health without needing to pull up the HMI.
Important note: the 5X00453G01 is the E-Module only — it handles the backplane communication, D/A conversion, and signal drive. You must pair it with the correct Personality Module (PM) that provides the field-side terminal block, signal conditioning, and surge protection. The modular design means you can stock E-Modules and PMs separately, reducing spare parts inventory costs.
Bottom line: if you need precise, reliable analog output for continuous process control in an Ovation installation, this is the module you spec.
QA & Testing SOP
Analog output modules are the final link between your control logic and the physical process — if the output drifts or fails, the valve position or motor speed will be wrong, potentially causing process upsets or safety issues. Our validation protocol covers both the electronic and signal integrity sides:
- Physical & Anti-Counterfeit Inspection: We verify the OEM chassis integrity, check for authentic Emerson/Westinghouse labeling and correct revision codes, and inspect the mating connector pins for corrosion or bending.
- Backplane Communication Test: The module is seated in an OEM Ovation test rack and we verify that the controller correctly reads the electronic ID from the module’s flash memory — confirming backplane communication and module identification are working.
- Per-Channel D/A Conversion Test: We command each output channel to multiple setpoints (0%, 25%, 50%, 75%, 100%) from the controller and measure the actual output with a calibrated multimeter to verify the D/A conversion accuracy meets the ±0.1% full-scale specification.
- Signal Type Verification: We verify that each channel correctly outputs the configured signal type (4-20mA or 0-10V) and that the signal range matches the software configuration.
- Load Regulation Test: We connect representative loads (750Ω for current mode, 10kΩ for voltage mode) and verify that the output remains stable and within spec under load.
- Channel Independence Test: We verify that adjusting one channel’s output does not affect adjacent channels — confirming proper channel isolation.
- Status LED Verification: We confirm that each channel’s LED and the panel diagnostic indicators (P/C/E/I) correctly reflect the module state in real time.
- Anti-Static Packaging: After validation, the module is sealed in industrial-grade ESD shielding bags with connector protectors installed for transit.
Installation Pitfalls & Guide
Analog output wiring mistakes can cause signal drift, incorrect actuator positioning, or even damage to the field devices. These are the traps to avoid:
- ❗ E-Module vs. PM Confusion: The 5X00453G01 is only the E-Module — it does NOT have field wiring terminals. You must pair it with the correct Personality Module (PM) for your signal type and wiring requirements. Installing the E-Module without the PM means you have no field connection at all. Always verify the PM part number matches your field wiring requirements before installation.
- ❗ Signal Type Mismatch: The output signal type (4-20mA vs. 0-10V) must match both the software configuration in I/O Builder and the field device’s input requirement. Sending a 0-10V signal to a 4-20mA input (or vice versa) will result in incorrect actuator positioning. Always verify the signal type configuration before energizing.
- ❗ Exceeding Load Capacity: For current outputs, the total loop impedance must not exceed 750Ω. For voltage outputs, the load impedance must be at least 10kΩ. Exceeding these limits will cause signal distortion and inaccurate actuator positioning. Always calculate the total loop resistance (including cable resistance) before connecting.
- ❗ Shield Grounding: Analog signals are susceptible to electromagnetic interference. Per Ovation wiring standards, the shield should be grounded at the DCS side (C column terminal) and left floating at the field device end, except for externally-powered AI loops where the shield is grounded at the field end. Never ground the shield at both ends — this creates a ground loop that introduces noise into the signal.
- ❗ Wiring Column Assignment: Per Ovation AO card wiring standards, the positive terminal connects to the A column, the negative terminal to the B column, and the shield to the C column. Reversing polarity will cause the output to read backwards (e.g., 4mA at 100% instead of 20mA).
- ❗ Commissioning Sequence: Before connecting field devices, verify the output signal with a multimeter at the terminal block. Once confirmed, connect the field device and verify that the actuator responds correctly to setpoint changes.
Replacement Procedure:
- Pre-Install: Back up the Ovation controller logic and I/O configuration. Document all field wiring connections on the PM terminal block. Note the slot location of the module being replaced. In the Ovation I/O Builder, set all output points on the module to “Out of Service” (Scan Off) and force them to a safe state (typically 4mA or 0V) before removal.
- Removal: Disconnect all field wiring from the PM terminal block. The Ovation system supports hot-swapping — you can remove the E-Module while the system is running, but all analog outputs on that module will go to their safe state during the swap. For critical control loops (e.g., feedwater control, fuel flow), perform the replacement during a low-activity period or scheduled maintenance window. Open the blue locking lever, remove the E-Module, then remove the PM.
- Install: Install the new PM into the base first, then seat the new 5X00453G01 E-Module firmly into the rack slot, ensuring it mates correctly with the PM. Close the blue locking lever to secure both modules. Reconnect all field wiring per your documented terminal assignments.
- Power-On Test: The module should be recognized automatically by the Ovation controller via its electronic ID. Restore points to “In Service” (Scan On). Verify that the controller shows the module as healthy. Force-test each output channel by commanding it to multiple setpoints from the controller and verifying that the output signal (measured at the terminal block) matches the commanded value within ±0.1% full scale, and that the field device responds correctly.
Technical FAQ
What’s the difference between the 5X00453G01 and a relay output module like the 5X00226G01? The 5X00453G01 is an analog output module — it provides proportional, continuous control signals (4-20mA or 0-10V) for devices that need variable positioning or speed control, such as control valves and VFDs. The 5X00226G01 is a relay output module — it provides on/off dry-contact switching for devices that only need to be turned on or off, such as motor starters, solenoid valves, and alarm circuits. Choose the 5X00453G01 for continuous process control; choose the 5X00226G01 for discrete on/off control.
Can I use this module without the Personality Module (PM)? No. The 5X00453G01 E-Module has no field wiring terminals — it only connects to the Ovation backplane and mates with the PM. The PM provides the field-side terminal block, signal conditioning, and surge protection. You need both to form a complete analog output channel.
How do I configure the output signal type (4-20mA vs. 0-10V)? The signal type is configured in the Ovation I/O Builder software — no jumpers or thumbwheels are needed. You define the signal type and scaling for each channel in the module configuration, then download the configuration to the controller. The module automatically adjusts its output circuitry based on the software setting.
Is this module hot-swappable? Yes. The Ovation system supports online module replacement. However, removing the E-Module will cause all analog outputs on that module to go to their safe state during the swap. For critical control loops, we recommend performing the replacement during a low-activity period or scheduled maintenance window. Always set points to “Out of Service” before removal and “In Service” after installation.
What’s the maximum cable length for analog output signals? For 4-20mA current signals, the maximum cable length is determined by the total loop impedance (must not exceed 750Ω including cable resistance). For typical 18 AWG instrument cable (approximately 6Ω per 1000 ft), you can run several thousand feet without issue. For 0-10V voltage signals, cable resistance is less of a concern but the signal is more susceptible to noise — keep voltage output runs as short as practical and use shielded cable.
Do you offer volume pricing for plant MRO stocking? Yes. Analog output modules are common spare parts for any Ovation DCS installation with continuous process control loops. We offer flexible pricing tiers for bulk MRO orders. Contact our sales team with your required quantity for a competitive quote.
