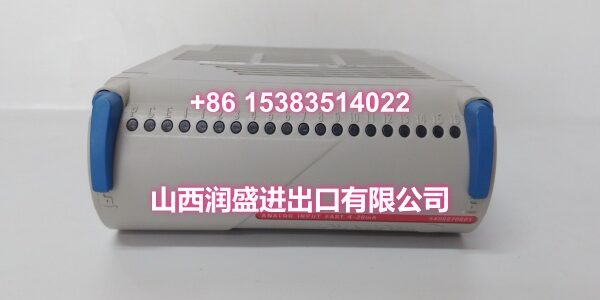

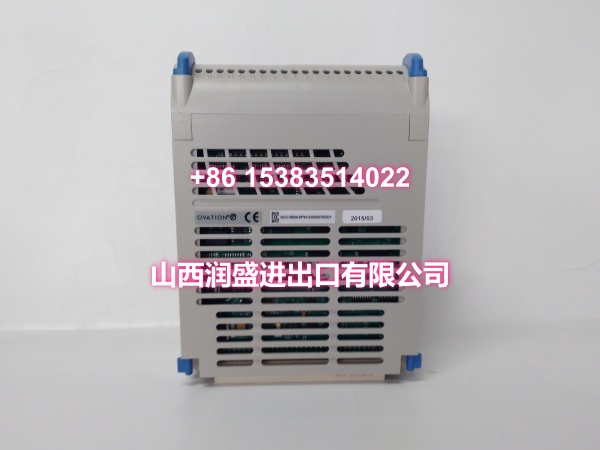

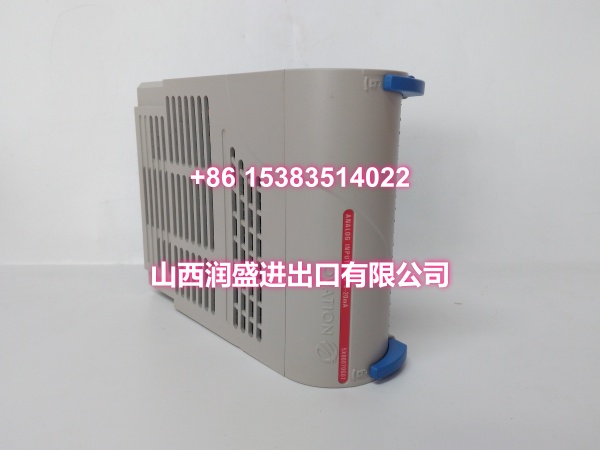

Product Core Brief

• Model: 5X00070G01
• Brand: Emerson (Ovation System, originally Westinghouse)
• Series: Ovation DCS High-Speed Analog Input (HSAI) Subsystem
• Core Function: High-speed analog input electronic module (E-Module) that converts 4-20mA current signals from field transmitters into digital data for the Ovation controller, with per-channel A/D conversion and 13-bit resolution.
• Product Type: High-Speed Analog Input Electronic Module (E-Module)
• Key Specs: 8 Isolated Channels | 4-20mA Input | 13-Bit Resolution | 10 Samples/Second per Channel
• Condition: New Original / New Surplus

Key Technical Specifications

• Module Type: High-Speed Analog Input Electronic Module (E-Module)
• Signal Range: 4-20mA current input (requires compatible PM for field termination)
• Number of Channels: 8 isolated analog input channels
• Resolution: 13-bit (including sign bit)
• Accuracy: Better than 0.1%
• Scan Rate: 10 samples per second per channel (100ms update rate)
• Channel Isolation: Each channel has its own dedicated A/D converter, providing channel-to-channel isolation
• Power Consumption: ≤0.4W per channel
• Auto-Calibration: Self-calibrates every 8 seconds
• Power Supply: 24VDC from the Ovation backplane (system-powered)
• Compatible Personality Module (PM): 1C31227G01 (4-20mA current input PM)
• Complete Assembly Part Number: 5X00070G01 (E-Module) + 1C31227G01 (PM)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Humidity: Up to 95% non-condensing
• Physical Dimensions: DIN-rail mountable, standard Ovation module footprint

Product Introduction

The 5X00070G01 is the electronic module (E-Module) half of Emerson Ovation’s High-Speed Analog Input (HSAI) subsystem. It’s the workhorse for bringing 4-20mA process signals — pressure, temperature, flow, level transmitters — into the Ovation controller with high precision and speed.

What makes this module stand out from standard AI cards is its architecture: each of the 8 channels has its own dedicated A/D converter. That means no multiplexing delay, no channel-to-channel crosstalk, and true simultaneous sampling across all channels. The 13-bit resolution (better than 0.1% accuracy) and 10 samples/second scan rate make it ideal for fast-closing control loops where you can’t afford the lag of a multiplexed AI card. The module auto-calibrates every 8 seconds, so you don’t have to schedule manual calibration downtime.

Important note: the 5X00070G01 is the E-Module only — it plugs into the Ovation rack and handles the A/D conversion and backplane communication. You also need the matching Personality Module (PM) 1C31227G01, which provides the field-side terminal block, surge protection, and signal conditioning for the 4-20mA input. The two modules mate together to form the complete HSAI channel. This modular design means you can stock E-Modules and PMs separately, reducing spare parts inventory costs.

Bottom line: if you need fast, accurate 4-20mA input for critical control loops in power generation or process control, this is the module you spec.

QA & Testing SOP

HSAI modules are the front end of your control loops — if the readings are wrong, the controller makes bad decisions. Our validation protocol is thorough:

1. Physical & Anti-Counterfeit Inspection: We verify the OEM chassis integrity, check for authentic Emerson/Westinghouse labeling and correct revision codes, and inspect the mating connector pins for corrosion or bending.
2. Backplane Communication Test: The module is seated in an OEM Ovation test rack and we verify that the controller correctly reads the electronic ID from the module’s flash memory — this confirms the backplane communication and module identification are working.
3. Per-Channel A/D Converter Test: We inject precision 4-20mA signals into each of the 8 channels (via a compatible PM) and verify that each channel’s dedicated A/D converter produces the correct 13-bit digital value. We check for channel-to-channel crosstalk by varying one channel while monitoring the others.
4. Resolution & Accuracy Verification: We step through the full 4-20mA range in fine increments and verify that the 13-bit resolution is achieved and that the accuracy stays within the 0.1% spec across the entire range.
5. Scan Rate Test: We verify that each channel updates at 10 samples/second by monitoring the data refresh rate on the Ovation controller.
6. Auto-Calibration Verification: We observe the module’s self-calibration cycle over an 8-second period and confirm that the calibration routine completes without error.
7. Power Consumption Test: We measure the module’s power draw from the backplane and verify it’s within spec (≤0.4W per channel, ≤3.2W total for 8 channels).
8. Anti-Static Packaging: After validation, the module is sealed in industrial-grade ESD shielding bags with connector protectors installed for transit.

Installation Pitfalls & Guide

HSAI wiring mistakes cause bad process data that leads to poor control performance or even trips. These are the traps to avoid:

• ❗ E-Module vs. PM Confusion: The 5X00070G01 is only the E-Module — it does NOT have field wiring terminals. You must pair it with the correct Personality Module (PM) for your signal type. For 4-20mA input, use PM 1C31227G01. Installing the E-Module without the PM means you have no way to connect field wiring.
• ❗ Wrong PM for Signal Type: The 5X00070G01 E-Module is part of a family. Different PMs support different signal ranges:
  • 1C31227G01 → 4-20mA current (matches 5X00070G01)
  • 1C31227G02 → ±1V, ±5V voltage
  • 5X00070G03 → ±5V, ±10V voltage
  • 5X00070G04 → ±20mV, ±50mV, ±100mV thermocouple Always match the E-Module to the correct PM for your field signal type. Mismatching them will give you garbage readings.
• ❗ Shield Grounding — Single Point Only: Shielded cable shields for analog signals must be grounded at the DCS cabinet terminal side only. The field-side shield must float (insulated). Grounding both ends creates a ground loop that injects 50/60Hz noise into the analog signal, causing erratic readings.
• ❗ Loop Power Supply Compatibility: 4-20mA transmitters can be loop-powered or self-powered. Verify that your loop power supply voltage is sufficient to drive the transmitter plus the voltage drop across the HSAI module’s input impedance. An underpowered loop will cause the signal to sag below 4mA.
• ❗ Surge Protection: The PM (1C31227G01) provides surge protection for the field side. In high-surge environments (near switchyards, lightning-prone areas), verify that the PM’s surge protection components are intact and not degraded from previous surge events.

Replacement Procedure:

1. Pre-Install: Back up the Ovation controller logic and I/O configuration. Document all field wiring connections on the PM terminal block. Note the slot location of the module being replaced.
2. Removal: Disconnect all field wiring from the PM terminal block. The Ovation system supports hot-swapping — you can remove the E-Module while the system is running, but the 8 channels on that module will go to a fault state during the swap. For critical loops, perform the replacement during a low-activity period.
3. Install: Seat the new 5X00070G01 E-Module firmly into the rack slot. Verify that it mates correctly with the PM (1C31227G01) already installed. Reconnect all field wiring per your documented terminal assignments.
4. Power-On Test: The module should be recognized automatically by the Ovation controller via its electronic ID. Verify that the controller shows the module as healthy and that all 8 channels are reading valid values. Force-test each channel by injecting a known 4-20mA signal and verifying the controller reads the correct engineering units.

Technical FAQ

What’s the difference between 5X00070G01 and 5X00070G02/G03/G04? The 5X00070G01 is the E-Module for 4-20mA current input (paired with PM 1C31227G01). The 5X00070G02 is for ±1V/±250mV voltage input, 5X00070G03 is for ±5V/±10V voltage input, and 5X00070G04 is for ±20mV/±50mV/±100mV thermocouple input. They all use the same E-Module architecture but are configured for different signal ranges via their matching PMs. Always match the E-Module to the correct PM for your field signal type.

Can I use this module without the Personality Module (PM)? No. The 5X00070G01 E-Module has no field wiring terminals — it only connects to the Ovation backplane and mates with the PM. The PM (1C31227G01 for 4-20mA) provides the field-side terminal block, surge protection, and signal conditioning. You need both to form a complete analog input channel.

Is this module hot-swappable? Yes. The Ovation system supports online module replacement. However, removing the E-Module will cause all 8 channels on that module to go to a fault state during the swap. For non-critical monitoring points, this is fine. For critical control loops, we recommend performing the replacement during a low-activity period or scheduled maintenance window.

How often does this module need calibration? The module auto-calibrates every 8 seconds, so no manual calibration is required under normal operating conditions. However, we recommend an annual verification check against a precision current source to confirm the 0.1% accuracy spec is still being met, especially in critical control applications.

Do you offer volume pricing for plant MRO stocking? Yes. HSAI modules are common spare parts for any Ovation DCS installation. We offer flexible pricing tiers for bulk MRO orders. Contact our sales team with your required quantity for a competitive quote.
