Product Quick-Glance Brief

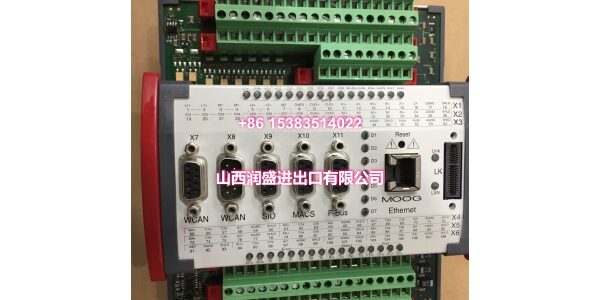

- Model: MOOG D136-004-001
- OEM: MOOG
- Category: Programmable Multi-Axis Motion Controller
- Core Function: Delivers high-speed closed-loop control for electric and hydraulic drives with integrated PLC logic.
- Key Specs: 40 MHz CPU, 400 µs Min Task Cycle, IEC 61131-3 Programming
Technical Overview & Field Application
Hydraulic drift kills precision. When your servo valve hysteresis fights the control loop, production tolerances slip. The MOOG exists to stop that cycle. It doesn’t just command motion; it actively compensates for fluid dynamics in real-time.
This unit integrates PLC functionality directly into the motion controller. You get fast closed-loop control without daisy-chaining separate logic solvers. Cycle times drop to 400 µs. That speed matters when you are synchronizing multiple axes or managing complex pressure profiles in metal forming.
Field engineers appreciate the modularity. The hardware supports up to seven expansion modules for additional I/O. It handles CANopen, Ethernet, and RS232 natively. No external gateways. Just clean, deterministic communication across your automation architecture.
Essential Specifications
| Parameter | Specification |
|---|---|
| CPU Clock | 40 MHz |
| Min Task Cycle | 400 µs |
| Memory | 4 MB Flash EEPROM |
| Analog I/O | 8 Inputs / 2 Outputs (16-bit) |
| Digital I/O | 8 Configurable Ports |
| Sensor Interface | Incremental / SSI |
| Bus Interfaces | CANopen, Ethernet, RS232 |
| Programming | IEC 61131-3 (CODESYS) |
| Expansion | Up to 7 Modules |
| Control Type | Multi-Axis Closed Loop |
Quality Assurance Protocol
We don’t guess. Every MOOG D136-004-001 undergoes a strict validation sequence before it leaves the facility.
- Power-On Self-Test: We verify boot integrity and check for memory corruption in the Flash EEPROM.
- I/O Simulation: Analog channels are swept across the full 16-bit range to confirm linearity and zero-offset accuracy.
- Bus Handshake: CANopen and Ethernet ports are stress-tested under load to ensure no packet loss during high-frequency updates.
- Firmware Verification: We validate the installed firmware against the latest stable release to prevent legacy bugs.
Note: Units showing intermittent bus errors during testing are immediately quarantined for board-level repair. We never ship “as-is” with known communication faults.
Engineer’s Installation / Replacement Notes
Always verify your firmware version before swapping. The MOOG D136-004-001 relies on specific motion libraries. A mismatch here causes axis oscillation, not just a fault code.
- Check the Security Dongle: This controller often requires a physical license key or software dongle for full functionality. Ensure you transfer it from the old unit or have the replacement license ready.
- Grounding is Non-Negotiable: Hydraulic environments are electrically noisy. If your ground loop impedance exceeds 1Ω, you will see sensor jitter. Bond the controller chassis directly to the cabinet ground bar.
- Expansion Module Order Matters: When adding I/O modules, follow the slot numbering strictly. The controller maps addresses based on physical position, not auto-detection.
- Backup Parameters First: Before pulling the old unit, dump the configuration via the RS232 port. Restoring parameters is faster than re-tuning hydraulic loops from scratch.
