Product Core Brief
- Model: ABB PM865K02 3BSE031150R6
- Brand: ABB
- Series: AC 800M / 800xA
- Core Function: High-integrity redundant safety processing and S800 I/O bus control.
- Product Type: Redundant Safety Processor Unit
- Key Specs: SIL3 TÜV Certified | 32 MB RAM | 1oo2D Architecture
- Condition: New Surplus / Refurbished
Product Introduction

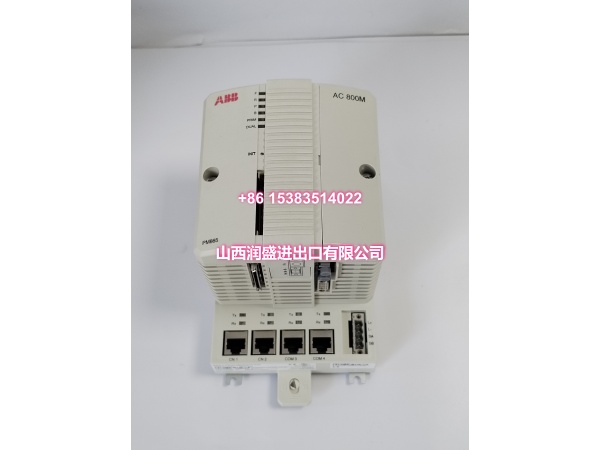

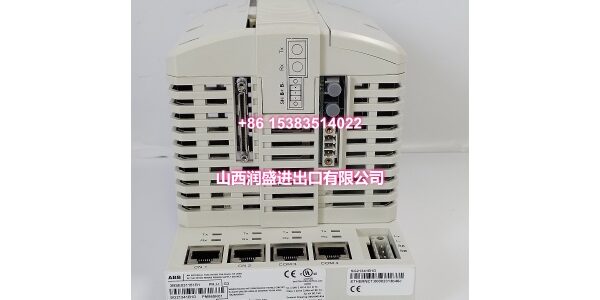

ABB PM865K02 3BSE031150R6 serves as the high-integrity redundant core for AC 800M safety systems. This industrial automation unit processes critical SIL3 logic while managing hot-standby failover for maximum availability.
The replacement module features 32 MB of application RAM and supports 1oo2D safety architectures. It operates on 24 Vdc and integrates dual CPUs for demanding environments where process safety is non-negotiable.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Safety Certification | SIL3 TÜV |
| Safety Architecture | 1oo1D or 1oo2D |
| Application RAM | 32 MB |
| Redundancy Support | CPU, CEX-Bus, Comm, S800 I/O |
| Ethernet Ports | 2x RJ45 (Redundant Capable) |
| Serial Ports | 2x RS-232C |
| Integrated Protocol | Foundation Fieldbus HSE |
| Input Voltage | 24 Vdc |
| Product Series | AC 800M / 800xA |
| Hardware Identity | Unique Ethernet MAC Address |
Quality Control Process
We verify every ABB 3BSE031150R6 through a strict five-step protocol. First, technicians inspect the PCB for oxidation or capacitor leakage. Next, we perform a Power-On Self-Test (POST) in a test rack.
Third, a Fluke multimeter checks input ripple below 5%. Fourth, we validate firmware versions and redundant synchronization states. Finally, we seal the unit in anti-static packaging with bubble cushioning.
Replacement Pitfall Guide
❗ Order Code Confusion: Never assume PM865K01 and are interchangeable. The K02 variant is a redundant safety controller package, whereas the K01 is non-redundant. Always verify the exact 3BSE order code on the label.
❗ Safety Certification Mismatch: Standard AC 800M CPUs cannot replace this module. ABB 3BSE031150R6 is a High Integrity controller with specific safety firmware. Substituting a standard CPU will compromise your SIL3 certification.
❗ Redundancy Sync Failures: This OEM controller relies on precise synchronization between primary and secondary units. I once saw a safety system fail to failover because the redundant sync cable was loosely seated during replacement. Always verify the CEX-Bus connections.
❗ ESD Negligence: These boards are static-sensitive. Touching gold fingers without a wrist strap causes intermittent bus failures. Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| 3BSE031150R6 | PM865K01 | Needs Adaptation | Non-redundant; requires architecture change. |
| 3BSE031150R6 | (New Surplus) | Direct | Verify firmware and safety config match exactly. |
- Safety Benchmark: SIL3 TÜV certification supports critical safety interlocks with 1oo2D architecture.
- Availability Benchmark: Full CPU and CEX-Bus redundancy ensures zero-downtime failover.
