Product Core Brief
- Model: PCI-4462
- Brand: National Instruments (NI)
- Series: NI 446x Dynamic Signal Acquisition (DSA)
- Core Function: Provides high-precision, 24-bit synchronous data acquisition for sound, vibration, and NVH analysis.
- Product Type: Dynamic Signal Acquisition (DSA) Module
- Key Specs: 4 Channels | 24-Bit | 93 kHz Bandwidth | IEPE Powered
- Condition: New Original (New Surplus)
Product Introduction
NI is a high-precision, 4-channel dynamic signal acquisition module designed specifically for sound and vibration testing. This unit features 24-bit Sigma-Delta ADCs, delivering an exceptional dynamic range capable of measuring signals as low as 1.25 µV.
Unlike general-purpose DAQ cards, this DSA module includes built-in IEPE (ICP) excitation current sources, eliminating the need for external signal conditioners when using accelerometers or microphones. It also features software-selectable AC/DC coupling and integrated anti-aliasing filters. It is ideal for audio testing, automotive NVH analysis, and machine condition monitoring.

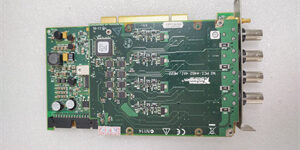

NI PCI-4462
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 4 Synchronous Analog Input |
| ADC Resolution | 24-Bit Sigma-Delta |
| Bandwidth | 93 kHz |
| Max Sample Rate | 204.8 kS/s per channel |
| Input Coupling | Software-Selectable AC / DC |
| Excitation | IEPE (2 mA / 4 mA configurable) |
| Input Impedance | 1 MΩ (AC), 10 kΩ (DC) |
| Bus Interface | PCI |
| Driver Software | NI-DAQmx |
| Application | Sound, Vibration, NVH, Modal Analysis |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for PCI gold finger wear and PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify NI-DAQmx enumeration and run continuous multi-channel acquisition tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity and IEPE excitation voltage stability are mandatory.
- Calibration Verification: Read and record self-calibration status and EEPROM constants. Verify gain accuracy against factory specs.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Driver/API Confusion: This module uses the NI-DAQmx driver. Do not attempt to use legacy “Traditional NI-DAQ” APIs or examples, as they are incompatible.
❗ IEPE Overload: Ensure the connected sensors do not draw more than the card’s maximum IEPE current. Exceeding this limit will cause the excitation source to shut down or distort.
❗ AC vs DC Coupling: Verify your signal chain requires AC coupling (blocks DC bias, ideal for microphones) or DC coupling (measures static/low-frequency acceleration). Configure this correctly in software.
❗ PCI Slot Compatibility: This is a standard 32-bit PCI card. Ensure your motherboard or PXI/CompactPCI chassis has a compatible PCI slot and adequate 3.3V/5V power headroom.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
NI PCI-4462
Compatibility Matrix & Benchmarks
- → PXI-4462 : Direct — Same functionality, PXI form factor
- → PCI-4461 : Needs Adaptation — PCI-4461 has 2 channels instead of 4
- → PCI-6143 : Incompatible — High-speed digitizer, lacks IEPE and anti-aliasing filters
Benchmarks:
- Scan Cycle: < 5 ms (Continuous buffered acquisition at max rate)
- Comms Throughput: PCI Bus (Direct Memory Access / DMA)
