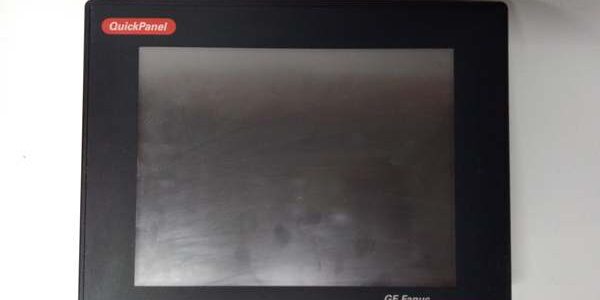

Product Core Brief

• Brand: GE Fanuc / Emerson Automation
• Model: IC754VSI12CTD
• Series: QuickPanel View
• Core Function: Panel-mount industrial HMI providing process visualization, operator setpoint entry, alarm management, and local trending for GE PACSystems and third-party PLC platforms
• Type: Resistive touch operator interface terminal
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM active production; limited surplus inventory
• Key Spec Highlights: 12.1” TFT LCD, 800×600 SVGA resolution, resistive analog touch, 12–24 VDC power, IP65 rated front panel, CCFL backlight

Key Technical Specifications

• Display: 12.1-inch color TFT LCD; resolution 800 × 600 SVGA, 65536 colors
• Touch Interface: 4-wire resistive analog touchscreen, supports gloved operator input
• Backlight: CCFL lamp type; rated 50,000-hour nominal half-life
• Processor: XScale PXA255 300 MHz embedded CPU
• Memory: 32 MB DRAM, 32 MB onboard Flash storage
• Communications: 1 × 10/100Base-TX Ethernet, 1 × multi-mode RS-232/422/485 serial DB25 port, USB service port
• Supported Protocols: SRTP for PACSystems, Modbus TCP, Modbus RTU
• Power Input: 12–24 VDC nominal; maximum power draw 32 W
• Enclosure Rating: IP65 front panel when installed with factory mounting gasket
• Operating Temperature: 0 °C to +50 °C
• Humidity: 5%–85% non‑condensing
• Mounting: Standard panel cutout assembly with clamping hardware
• Software Runtime: Proficy View Machine Edition

Product Introduction

HMI hardware failures remove operator visibility to critical production or power auxiliary control loops, forcing reliance on local panel indicators. GE is a legacy QuickPanel View terminal built to deliver continuous process monitoring and manual operator control within industrial control cabinets.

This unit’s resistive touch surface accepts inputs from standard work gloves, an advantage for heavy manufacturing environments. The sealed front bezel resists dust and incidental liquid exposure, and the fixed panel cutout footprint allows direct drop-in replacement for existing QuickPanel View hardware during planned downtime.

Key Selling Points & Differentiators

1. GE offers native SRTP protocol connectivity to GE RX3i and RX7i PACSystems without external protocol converters.
2. Resistive touch technology enables reliable operation with gloved hands, a critical feature for machining, chemical, and energy production facilities.
3. Every unit undergoes runtime project load validation, touch calibration, and communications bench testing prior to shipment; signed test documentation available on formal request. Warranty coverage runs 12 months after delivery.
4. Dual communication channels (Ethernet + isolated serial) support redundant or multi-drop field device connection topologies.
5. Not recommended for continuous high-temperature cabinet deployments above 50 °C. CCFL backlight service life will shorten significantly under sustained elevated temperatures.
6. Identical panel cutout dimensions matching original factory hardware; no cabinet machining required for spare unit exchange.

Quality Transparency SOP

• Incoming Verification: Serial traceability validation, anti-counterfeit visual inspection, front glass integrity and gasket hardware cross-check.
• Live Bench Test: Power-on boot validation, resistive touch full-area calibration, Ethernet and serial multi-node handshake, continuous 24-hour thermal soak testing.
• Electrical Tests: Input voltage tolerance cycling, chassis ground continuity verification.
• Firmware Verification: Record factory baseline runtime revision; no unauthorized operating system modifications performed.
• Final QC & Packaging: Anti-static shielding, shock-dampened transit carton, signed QC Pass label. Test images and logs available on request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Runtime Project Version Mismatch Risk Risk: Deploying the device with mismatched Proficy View runtime builds creates tag communication failures, broken graphic screens, or missing alarm subscriptions. Prevention: Match runtime revision to archived site HMI project files before commissioning. Field note: Multiple manufacturing plants experienced unresponsive trend displays after loading newer project builds onto legacy QuickPanel View hardware.

Backlight Degradation Risk Risk: CCFL backlights degrade gradually; dim display can develop without triggering fault codes. Prevention: Schedule periodic visual inspection; stock spare terminals for aged QuickPanel View fleets.

Touch Calibration Drift Risk Risk: Thermal cycling shifts touch coordinate mapping, leading to inaccurate operator inputs. Prevention: Execute on-screen touch calibration after installation and thermal stabilization inside the control cabinet.

Gasket Installation Risk Risk: Damaged or misaligned mounting gaskets break IP65 environmental protection and allow moisture ingress. Prevention: Inspect gasket condition before installation; replace worn gaskets during every HMI changeout.

Critical Summary: Confirm complete part number matching and runtime compatibility. This legacy QuickPanel View terminal cannot directly run QuickPanel+ project files without project conversion work.

FAQ

1. Q: Can GE communicate directly with RX3i and RX7i PACSystems? A: Yes, native SRTP protocol enables direct tag-based communication with GE PACSystems controllers.
2. Q: Does the touchscreen register inputs from operators wearing work gloves? A: Yes. The resistive touch design supports gloved operation, unlike capacitive QuickPanel+ variants.
3. Q: What lead times apply for available inventory? A: In-stock units ship within 1–3 business days. Backordered allocations require 5–7 week lead times subject to global surplus availability.
4. Q: Can I load QuickPanel+ HMI project files onto this terminal without conversion? A: No. QuickPanel View and QuickPanel+ use separate runtime environments; projects require full conversion and validation before deployment.
5. Q: What damage scenarios fall outside warranty coverage? A: The 12-month limited warranty covers manufacturing defects. Damage from cracked touch glass, water ingress due to poor gasket installation, overvoltage, and incompatible runtime loads is excluded.
6. Q: Is the CCFL backlight field-replaceable by maintenance staff? A: Backlight replacement requires partial disassembly. OEM service guidance recommends full terminal exchange for most site maintenance teams.
7. Q: Are alternate QuickPanel View part numbers fully interchangeable with ? A: Suffix variations denote touch type, display size and environmental ratings. Always match the complete part number to avoid cutout or hardware incompatibility.
