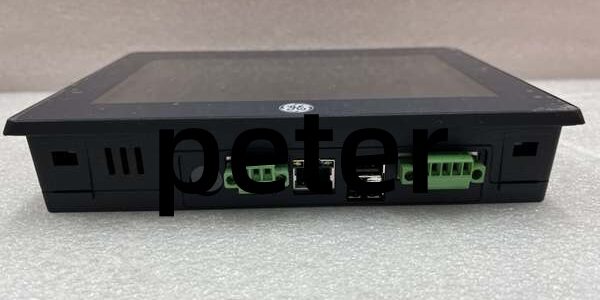

Product Core Brief

• Brand: GE Fanuc / Emerson Automation
• Model: IC755CSW07CDA
• Series: QuickPanel+ View & Control
• Core Function: Industrial HMI operator terminal providing real-time process visualization, operator control, alarm handling, and embedded data logging for GE PACSystems and third-party PLC platforms
• Type: Panel-mount capacitive multi-touch human-machine interface
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM active production; finite remaining surplus inventory
• Key Spec Highlights: 7-inch 800×480 widescreen TFT, projected capacitive two-point touch, i.MX535 1 GHz ARM CPU, 12–24 VDC power, IP65 rated front bezel

Key Technical Specifications

• Display: 7-inch widescreen color TFT LCD; native resolution 800 × 480
• Touch Interface: Projected capacitive multi-touch (two-point gesture support)
• Processor: Freescale i.MX535 ARM Cortex‑A8, 1 GHz
• Memory: 512 MB DDR2 SDRAM, 256 MB SLC NAND Flash, 512 KB battery-backed SRAM
• Operating System: Windows Embedded Compact 7
• Communications: 1 × 10/100Base‑TX Ethernet, 1 × RS‑232 COM port, 2 × USB 2.0 Host, 1 × Mini‑USB service port, SD card expansion slot
• Power Input: 12–24 VDC (±20% tolerance); maximum power draw 15 W
• Enclosure Rating: IP65 front panel (when installed with supplied mounting gasket)
• Operating Temperature: 0 °C to +55 °C (full touchscreen functionality)
• Storage Temperature: −10 °C to +60 °C
• Humidity: 5%–85% non‑condensing
• Mounting: Standard panel cutout installation, hardware brackets included
• Supported Protocols: SRTP, Modbus TCP/RTU, OPC UA client, GE SRTP for PACSystems

Product Introduction

Unplanned HMI failures halt operator visibility and manual intervention capability across packaging, material handling, and power auxiliary control systems. GE serves as a full-featured QuickPanel+ terminal that consolidates process graphics, alarm management, setpoint entry, and short-term data historian functions on a single panel-mounted unit.

This unit uses capacitive multi-touch for responsive operator input and runs embedded Compact 7 firmware, eliminating reliance on external PC hardware. The sealed front bezel withstands common shop-floor dust and incidental liquid exposure, and its standardized cutout dimensions enable direct replacement during scheduled maintenance shutdowns.

Key Selling Points & Differentiators

1. GE natively supports SRTP communications for GE PACSystems controllers, reducing protocol translation hardware required for site retrofits.
2. IP65 front panel rating delivers protection against splashing fluids and airborne particulate typical in food & beverage, water treatment, and manufacturing environments.
3. Every unit undergoes full software load, touch calibration, and communication bench validation before shipment; signed test documentation available on formal request. Warranty runs 12 months after delivery.
4. Embedded historian function enables localized trend recording without separate data acquisition servers.
5. Not recommended for glove-operated workflows. Capacitive touch does not register standard non-conductive work gloves; resistive QuickPanel variants should be selected for glove use cases.
6. Identical panel cutout footprint as original factory hardware; no cabinet machining required for drop-in spare exchange.

Quality Transparency SOP

• Incoming Verification: Serial traceability validation, anti-counterfeit visual inspection, front glass integrity and accessory cross-check (gaskets, mounting clamps).
• Live Bench Test: Power-on boot sequence validation, touchscreen linear calibration, Ethernet and serial communication handshake, continuous 24-hour thermal soak cycling.
• Electrical Tests: Input voltage tolerance testing, ground continuity verification.
• Firmware Verification: Record factory baseline Windows CE image; no unauthorized operating system modification performed.
• Final QC & Packaging: Anti-static shielding, shock-dampened transit carton, signed QC Pass label. Test images and logs available on request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Firmware / Runtime Version Mismatch Risk Risk: Deploying the unit with mismatched QuickPanel runtime software creates graphic rendering errors, tag communication failures, or lost alarm subscriptions. Prevention: Match runtime revision against existing site HMI project files before commissioning. Field note: Multiple manufacturing facilities experienced missing trend curves after loading incompatible project builds onto replacement terminals.

Power Supply Voltage Sag Risk Risk: Shared 24 VDC cabinet power buses with multiple HMIs can trigger voltage dips causing spontaneous screen reboots. Prevention: Calculate aggregate DC load and verify power supply headroom; isolate critical operator panels on dedicated feeds where feasible.

Touchscreen Calibration Drift Risk Risk: Temperature fluctuations shift touch mapping if factory calibration is not reconfirmed after installation. Prevention: Run on-screen touch calibration after panel mounting and thermal stabilization.

Gasket Installation Risk Risk: Misaligned or damaged mounting gaskets break IP65 environmental protection, allowing moisture ingress and premature hardware corrosion. Prevention: Inspect gasket integrity and seat evenly around the bezel before tightening mounting clamps.

Critical Summary: Confirm full part number matching and project runtime compatibility. This capacitive terminal cannot be substituted with resistive QuickPanel models without operator workflow adjustments.

FAQ

1. Q: Can GE communicate directly with GE RX3i and RX7i PACSystems PLCs? A: Yes, native SRTP protocol support enables direct tag-based communication without intermediate gateways.
2. Q: Does this HMI support hot-swap power replacement while the control system remains running? A: Power can be cycled without affecting connected PLC logic, but operators will lose screen visibility during reboot. Process control continues independently of the terminal.
3. Q: What lead times apply for available inventory? A: In-stock units ship within 1–3 business days. Backordered allocations require 4–6 week lead times subject to global surplus availability.
4. Q: I require operators to wear work gloves. Will the touchscreen register inputs? A: No. Capacitive touch requires direct skin contact. Select resistive QuickPanel+ variants for glove operation.
5. Q: What failure modes fall outside warranty coverage? A: The 12-month limited warranty covers manufacturing defects. Damage from water ingress due to poor gasket fit, overvoltage, cracked touch glass, and incompatible firmware loads is excluded.
6. Q: Can I install custom third-party Windows CE applications on this unit? A: Limited embedded software execution is supported; confirm application licensing and resource limits against GE QuickPanel runtime documentation. Heavy third-party software may degrade graphic refresh performance.
7. Q: Are alternate QuickPanel+ part numbers interchangeable with ? A: Suffix variations denote touch type, bezel branding, and environmental ratings. Always match the complete part number to avoid cutout or touch-technology mismatches.
