Product Core Brief

• Brand: GE Fanuc / Emerson Automation

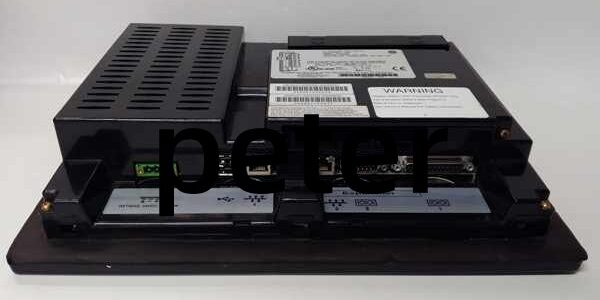

• Model: IC754VSF12CTD
• Series: QuickPanel Control
• Core Function: Combined HMI and embedded logic controller; delivers process visualization, operator input, and independent PLC-style control execution without a separate rack-based CPU
• Type: Panel-mount resistive touch integrated operator control terminal
• Condition: New Original (New Surplus)
• Status: ⚠️ Discontinued OEM active production; limited surplus inventory
• Key Spec Highlights: 12.1” TFT SVGA 800×600 display, 400 MHz XScale CPU, 64 MB DRAM, dual serial communications, 18–30 VDC power, IP65 front rating

Key Technical Specifications

• Display: 12.1-inch color TFT LCD; resolution 800 × 600 SVGA, 65536 colors
• Touch Interface: 4-wire resistive analog touchscreen, compatible with gloved operator input
• Backlight: CCFL lamp; nominal 50,000-hour half-life
• Processor: Intel XScale PXA255, 400 MHz
• Memory: 64 MB DRAM, 32 MB onboard Flash, battery-backed SRAM
• Operating Environment OS: Windows CE; embedded QuickPanel Control runtime for IEC control logic
• Communications: 1 × 10/100Base-TX Ethernet, 2 × isolated RS‑232/422/485 serial ports, USB service port
• Supported Protocols: SRTP, Modbus TCP, Modbus RTU
• Power Input: 18–30 VDC nominal 24 VDC
• Enclosure Rating: IP65 front panel when fitted with factory mounting gasket
• Operating Temperature: 0 °C to +50 °C
• Humidity: 5%–85% non‑condensing
• Mounting: Standard panel cutout with clamping hardware
• Software Platform: Proficy Machine Edition (HMI graphics + embedded control logic)

Product Introduction

Many compact machine layouts lack space for separate PLC and HMI enclosures, increasing complexity and hardware count. GE consolidates operator visualization and discrete control logic onto a single panel-mounted unit, eliminating the requirement for an external PACSystems CPU for standalone machine applications.

This unit’s dual serial ports simplify multi-drop field device wiring, and resistive touch allows reliable operation with protective work gloves. The sealed front bezel resists dust and incidental liquid exposure, and its standardized panel footprint enables planned spare replacement during scheduled production downtime.

Key Selling Points & Differentiators

1. GE executes embedded IEC control logic locally; it differs from view-only QuickPanel variants that rely fully on external PLC processing.
2. Dual isolated serial ports support simultaneous connection to multiple field devices without external communication multiplexers.
3. Every unit undergoes full runtime loading, touch calibration, Ethernet and serial communication validation prior to shipment; signed test documentation available on formal request. Warranty coverage runs 12 months after delivery.
4. Resistive touch surface accepts inputs from gloved operators, suited for heavy manufacturing, water treatment, and energy auxiliary equipment.
5. Not recommended for large distributed process systems. Onboard memory and scan speed are sized for standalone machinery, not plant-wide control architectures.
6. Matches factory standard cutout dimensions; no cabinet modification needed for direct hardware exchange.

Quality Transparency SOP

• Incoming Verification: Serial traceability validation, anti-counterfeit visual inspection, front glass integrity, gasket and mounting hardware cross-check.
• Live Bench Test: Power-on boot validation, full-area resistive touch calibration, Ethernet and dual serial multi-node handshake, continuous 24-hour thermal soak cycling.
• Electrical Tests: Input voltage tolerance cycling, chassis ground continuity verification.
• Firmware Verification: Record baseline runtime revision; no unauthorized operating system or control firmware modifications performed.
• Final QC & Packaging: Anti-static shielding, shock-dampened transit carton, signed QC Pass label. Test images and logs available on request. No zero-failure performance guarantee.

Technical Risk Avoidance Section

Runtime Logic Version Mismatch Risk Risk: Deploying the unit with mismatched Proficy Machine Edition runtime builds causes control scan errors, tag loss, or incomplete graphic rendering. Prevention: Match runtime revision against archived project files before commissioning. Field note: Multiple machine builders observed intermittent output latch faults after loading newer project revisions onto legacy QuickPanel Control hardware.

Backlight Degradation Risk Risk: CCFL backlights dim gradually without generating internal fault codes, slowly reducing screen visibility over long runtime. Prevention: Schedule periodic visual inspection and maintain spare terminals for aging installed fleets.

Touch Calibration Drift Risk Risk: Cabinet thermal cycling shifts touch coordinate mapping leading to unresponsive screen zones. Prevention: Complete on-screen touch calibration after installation and thermal stabilization.

Gasket Installation Risk Risk: Damaged or misaligned mounting gaskets break IP65 environmental protection and permit moisture ingress. Prevention: Inspect gasket integrity; replace gaskets every time an HMI unit is exchanged.

Critical Summary: Distinguish carefully between QuickPanel Control and view-only QuickPanel View models. This unit cannot run projects developed exclusively for non-control QuickPanel variants without modification.

FAQ

1. Q: Can GE run standalone machine logic without an external GE PACSystems PLC? A: Yes. The embedded control runtime supports ladder logic execution for independent machine control, alongside HMI visualization.
2. Q: How does differ from IC754VSI12CTD? A: is QuickPanel Control with onboard logic execution and two serial ports. IC754VSI12CTD is view-only QuickPanel View with one serial port and no embedded control capability. They share the same physical cutout but cannot directly exchange project files.
3. Q: Does the touchscreen register inputs from operators wearing work gloves? A: Yes, resistive touch technology supports gloved operation.
4. Q: What lead times apply for available inventory? A: In-stock units ship within 1–3 business days. Backordered allocations require 5–7 week lead times subject to global surplus availability.
5. Q: What failure modes fall outside warranty coverage? A: The 12-month limited warranty covers manufacturing defects. Damage from cracked touch glass, water ingress due to poor gasket installation, overvoltage, and incompatible runtime project loads is excluded.
6. Q: Can I migrate embedded control projects to a newer QuickPanel+ HMI? A: Projects require conversion; QuickPanel+ does not natively support legacy embedded control runtime used by this model.
7. Q: Are alternate 12-inch QuickPanel part numbers fully interchangeable with ? A: Suffix variations differentiate view-only versus control-enabled hardware and communication port counts. Always match the complete part number to avoid feature mismatches.
