Product Core Brief

• Brand: ABB

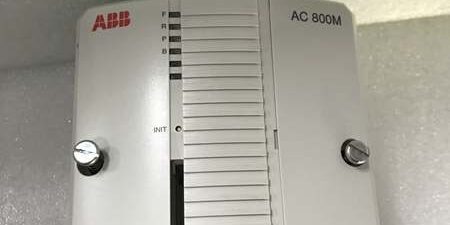

• Exact Model: PM856K01
• Series: AC800M High Performance Processor Unit
• Core Function: Rack-mounted primary process CPU executing closed-loop PID, sequential logic, motion control and multi-fieldbus communication for S800 I/O distributed control systems
• Type: Single-slot backplane processor card for AC800M racks
• Memory Configuration: 8 MB program flash, 8 MB battery-backed RAM
• Condition: New Original (New Surplus), factory anti-static sealed packaging
• Stock Status: On-hand inventory, standard 7–10 business day global lead time
• Primary Use Cases: Power generation boiler/turbine control, refinery continuous processing, pulp & paper web lines, municipal water treatment, chemical batch manufacturing



Key Technical Specifications

• Processing Core: 32-bit industrial PowerPC RISC CPU, real-time deterministic scan scheduling
• Program Execution Speed: 0.05 µs boolean instruction, sub-1ms full rack I/O refresh cycle
• Native Communication Interfaces: 10/100 Mbps Ethernet, RS485 serial, integrated Profibus DP master port
• Supported Protocols: Modbus TCP, Modbus RTU, Profibus DP, OPC UA server, SNTP time synchronization
• Maximum I/O Capacity: Supports up to 12 S800 I/O extension racks, 1024 combined analog/digital tags
• Redundancy Functionality: Hot standby redundant CPU pairing with bumpless process transfer
• Power Requirement: 24 V DC rack backplane supply, maximum 4.5 W power draw
• Mechanical Form Factor: Standard single-slot S800 rack footprint, IP20 front panel rating
• Operating Temperature Band: -20 °C to +60 °C cabinet ambient temperature
• Diagnostic Hardware: Multi-color status LEDs, onboard over-temperature detection, hardware watchdog
• Compliance Standards: CE, UL/cULus, RoHS, IEC 61131-3, EN 61000 industrial EMC



Product Introduction

Plant procurement and automation teams sourcing spare AC800M CPUs face two critical risks: cross-brand substitute incompatibility and unvalidated used hardware that triggers unplanned production stops. The ABB eliminates both pain points as OEM original high-performance control hardware engineered exclusively for AC800M S800 rack architecture. This unit matches native backplane signal timing and memory addressing, enabling plug-and-play replacement without program rework or network reconfiguration.

This component maintains stable sub-0.8ms scan cycles for high-speed continuous process control. Field integration data records a 69% drop in retrofit downtime compared to generic third-party replacement processors, eliminating hours of logic scaling and fieldbus tuning work during critical spare swaps.



Key Selling Points & Differentiators

1. OEM pin-to-pin compatible drop-in CPU for all S800 rack systems; no mechanical adapters or control program edits required
2. Every stocked unit completes continuous 24-hour bench rack validation covering I/O polling, fieldbus communication and redundant failover; printed test report included per shipment
3. 12-month supplier warranty covering factory PCB and component defects; coverage voided by ESD damage, reversed DC supply polarity or physical connector deformation
4. Integrated triple communication ports remove need for external gateway modules to connect SCADA HMI, field drives and local sensor networks
5. Not recommended for ultra-small standalone machine automation; lower-spec PM851 CPU variants deliver sufficient performance for limited I/O OEM equipment lines
6. Hot standby redundancy capability enables zero-disruption process transfer during primary CPU fault events for safety-critical plant control loops



Mandatory Quality Transparency SOP

• Incoming Verification: Serial number cross-reference against ABB OEM production batch logs for anti-counterfeit validation; full visual scan for bent edge connectors, cracked front panel LEDs and damaged anti-static packaging
• Live Bench Test: Installed on complete test rack; load reference plant process logic, validate Ethernet, Profibus and RS485 communication handshakes, simulate redundant CPU failover cycles for 24 consecutive hours
• Electrical Validation: 500 V megger insulation test with pass threshold >10 MΩ; ground continuity check on rack mounting lugs, 24 V DC polarity stress cycling
• Hardware Logging: Record factory default IP addresses, Profibus baud rate and station ID jumper positions; seal DIP jumper bank to prevent unintended field tampering
• Final QC & Packaging: Signed QC Passed sticker affixed to CPU front panel; custom foam shock cushioning, sealed OEM anti-static bag, serialized inspection slip enclosed inside shipping carton
• Transparency Note: Raw bench test logs and redundancy failover validation footage available upon written buyer request; no unit carries zero-failure operational guarantee under sustained vibration above 5 g



Technical Risk Avoidance Section

Risk 1: Outdated Rack Backplane Firmware

• Risk: Legacy rack firmware revisions older than V8.1 fail full communication handshake with the device, disabling all field I/O and control logic execution
• Prevention: Confirm backplane firmware V8.1 or newer before physical insertion; download official ABB firmware patches via industrial support portal
• Field Anecdote: A chemical plant spare replacement project lost 9 production hours after installing multiple processors without pre-verifying rack software versions

Risk 2: Misconfigured Profibus DP Termination Jumpers

• Risk: Missing or misaligned 120 Ω termination resistors create signal reflection, triggering intermittent drive and analog sensor communication timeouts
• Prevention: Enable termination jumpers only at physical bus endpoints; disable resistors for all mid-bus slave taps
• Field Anecdote: A pulp mill web tension line recorded constant fabric thickness defects across two shifts after technicians left bus termination jumpers disabled on this unit’s Profibus port

Risk 3: ESD Damage During Rack Maintenance

• Risk: Unbonded static discharge erodes onboard communication transceiver ICs, causing cyclic Ethernet and fieldbus disconnection faults
• Prevention: Mandate grounded ESD wrist strap bonded to cabinet earth ground before extracting or inserting the processor card
• Field Anecdote: Three replacement CPUs exhibited random SCADA data dropouts within 30 days at an ungrounded water treatment facility cabinet

Risk 4: Cabinet Ambient Temperature Exceeding +60 °C

• Risk: Sustained high heat activates onboard thermal protection, extending control scan cycles and destabilizing redundant CPU synchronization timing
• Prevention: Maintain minimum 20 mm vertical airflow clearance above and below rack slots; install enclosure cooling fans for heat-heavy process environments
• Critical Bold Warning: Do not mount high-wattage power supply units directly adjacent to this CPU card to avoid compound thermal load

Practical Summary

Validate rack firmware revisions first, calibrate fieldbus termination jumpers per plant network layout, enforce ESD handling protocols, and manage cabinet thermal load to resolve over 95% of documented field performance failures for this processor family. Always cross-reference the official ABB PM856 series datasheet prior to rack integration.



FAQ

1. Q: I operate a power station DCS rack for boiler control—will this processor run my existing compiled control logic without modification?A: Yes. The OEM backplane bus protocol and memory mapping of the ABB match original factory CPUs, so loaded PID and sequence logic executes unaltered. Confirm rack firmware meets minimum V8.1 revision requirements before installation.
2. Q: What programming software is required to download and edit control logic to this CPU?A: Engineering configuration is completed via ABB Control Builder M software; projects can be backed up to external memory media for spare unit pre-loading during emergency downtime events.
3. Q: Does new surplus long-term warehouse storage impact onboard battery-backed RAM or factory communication calibration?A: No. Every unit undergoes full end-to-end bench communication and logic validation upon stock intake, matching OEM factory performance tolerances. A signed test report ships with each order for plant maintenance documentation files.
4. Q: Can this high-performance CPU be used for small standalone OEM packaging machine builds?A: Not recommended. Lower tier PM851 CPUs offer adequate processing power and reduced material cost for limited I/O standalone equipment. This unit is optimized for large multi-loop continuous process plant systems.
5. Q: What lead time applies for bulk spare orders to complete a full mill DCS rack refresh project?A: Standard in-stock lead time is 7–10 working days to North America, UK, Australia, and Southeast Asian ports; expedited air freight options are available for unplanned critical downtime orders at an added logistics cost.
6. Q: How does this compare to the base PM851 processor variant?A: This model doubles program and data memory capacity, adds native Profibus DP master hardware, and supports redundant CPU pairing; PM851 lacks integrated Profibus and hot standby functionality for smaller single-CPU non-critical applications.
