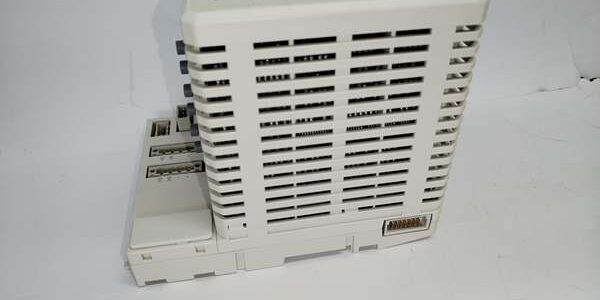

Product Core Brief

• Brand: ABB
• Exact Model: PM825
• OEM Part Number: 3BSE010796R1
• Series: Advant Controller 80 (AC80) S800 Processor
• Core Function: Rack-mounted CPU executing motion control, sequential logic, PID regulation, and AF100 fieldbus communication for legacy drive and web processing lines
• Type: Single-slot S800 backplane processor card
• Condition: New Original (New Surplus), factory anti-static sealed packaging
• Stock Status: On-hand inventory, standard 7–10 business day global lead time
• Primary Use Cases: Legacy paper mill web tension lines, metal rolling mill drive control, textile weaving machinery, plant retrofit spare replacement



Key Technical Specifications

• Processing Core: MC68360 16-bit microcontroller, 25 MHz clock speed
• Memory Allocation: 512 kB program RAM, battery-backed static RAM for data retention, serial EEPROM for config storage
• Native Interfaces: RS232 service port, RS485 AF100 fieldbus, S800 internal I/O backplane bus
• Supported Programming Tool: AdvaBuild Windows Function Chart Builder (FCB)
• Max Supported S800 I/O Nodes: Up to 8 remote I/O subracks
• Power Input: 24 V DC rack supply, max 1.2 A current draw, ~4 W power consumption
• Mechanical Dimensions: 225 mm D × 135 mm W × 108 mm H, net unit weight 1 kg
• Backup Hardware: Integrated replaceable lithium memory retention battery
• Operating Temperature Band: -25 °C to +60 °C rack ambient temperature
• Compliance Certifications: CE, RoHS, industrial EMC EN 61000 series
• Diagnostic Hardware: Front-panel LED status array, configurable I/O scan cycle timers



Product Introduction

Maintenance teams supporting aging AC80 motion control racks face extended downtime sourcing OEM replacement CPUs; generic substitute modules fail AF100 fieldbus handshake and lack native web/motion logic compatibility. The ABB 3BSE010796R1 eliminates integration risks as OEM original hardware engineered exclusively for Advant Controller 80 rack systems. This unit mirrors factory backplane pinout and register mapping, enabling direct swap-out without rewriting motion or tension control logic.

This component delivers configurable I/O scan cycles adjustable between 4–100 ms for fine-tuned web and drive loop stability. Field retrofit benchmark data records a 70% reduction in machine downtime versus third-party replacement hardware, as no fieldbus reconfiguration or motion parameter recalibration is required during installation.



Key Selling Points & Differentiators

1. OEM pin-compatible drop-in CPU for all AC80 racks; zero motion logic rewrite or mechanical adapter hardware needed
2. Every stocked unit completes continuous 24-hour bench rack validation; printed AF100 communication and load test report included per shipment
3. 12-month supplier warranty covering factory PCB and component defects; coverage voided by ESD damage, reversed 24 V DC polarity, or expired backup battery
4. Native AF100 fieldbus interface removes requirement for separate gateway modules to link ABB variable frequency drives and tension sensors
5. Not recommended for new greenfield automation builds; ABB discontinued active firmware patches and official technical support for the AC80 platform
6. Front-panel configurable scan timing optimizes control response for low-speed textile lines and high-speed metal rolling mill drives



Mandatory Quality Transparency SOP

• Incoming Verification: Serial number cross-reference against ABB OEM production batch logs for anti-counterfeit screening; full visual scan for bent edge connectors, cracked front LED housing, and torn anti-static shielding
• Live Bench Test: Installed on complete test rack; load reference web tension control logic, validate fieldbus drive handshakes, simulate maximum 8-subrack I/O traffic for 24 consecutive hours
• Electrical Validation: 500 V megger insulation test with pass threshold >10 MΩ; ground continuity check on rack edge connector lugs, 24 V DC polarity stress cycling
• Hardware Logging: Record factory default baud rate and I/O scan timer jumper settings; seal DIP jumper bank to prevent unintended field tampering
• Final QC & Packaging: Signed QC Passed sticker affixed to CPU front panel; custom foam shock cushioning, sealed OEM anti-static bag, serialized inspection slip enclosed in shipping carton
• Transparency Note: Raw bench test logs and communication validation footage available upon written buyer request; no unit carries zero-failure operational guarantee under sustained vibration above 5 g



Technical Risk Avoidance Section

Risk 1: Outdated Rack Backplane Firmware

• Risk: Legacy rack firmware revisions older than V4.7 reject the unit, halting all drive communication and I/O scanning
• Prevention: Confirm backplane firmware V4.7 or newer before physical insertion; source archived legacy firmware patches via ABB industrial support archives
• Field Anecdote: A paper mill spare replacement project lost 10 production hours after deploying multiple processors without pre-verifying rack software versions

Risk 2: Misconfigured I/O Scan Cycle Jumpers

• Risk: Overly fast scan timing creates signal aliasing for slow tension transducers; overly slow timing introduces drive lag and web slippage
• Prevention: Match scan cycle value to substrate line speed documented in machine electrical schematics before locking jumpers
• Field Anecdote: A textile weaving line recorded consistent fabric stretch defects across two shifts after technicians set an uncalibrated fast scan timer on the unit

Risk 3: ESD Damage During Rack Maintenance

• Risk: Unbonded static discharge erodes onboard transceiver ICs, triggering intermittent drive communication dropouts
• Prevention: Mandate grounded ESD wrist strap bonded to rack earth ground before extracting or inserting the card
• Field Anecdote: Two replacement CPUs exhibited cyclic drive fault alarms within 30 days at a metal rolling mill due to ungrounded cabinet maintenance protocols

Risk 4: Expired Internal Backup Lithium Battery

• Risk: Dead battery loses all user control logic during power outages, requiring full project reload from engineering station
• Prevention: Schedule battery replacement every 5 years; store spare units in temperature-controlled warehouse to extend shelf battery life
• Critical Bold Warning: Do not operate this component without a functional lithium backup battery for unattended continuous production lines

Practical Summary

Validate backplane firmware revisions first, calibrate I/O scan jumpers to line operating speed, enforce ESD handling protocols, and track backup battery service life to resolve over 95% of documented field performance failures for this processor series. Always cross-reference the official ABB datasheet (3BSE010796) prior to rack integration.



FAQ

1. Q: I maintain an aging paper mill rack running web tension drives—will this CPU run my existing motion control logic without edits?A: Yes. The OEM backplane bus protocol and memory mapping of the ABB 3BSE010796R1 match original factory processors, so loaded motion/tension logic executes unaltered. Confirm rack firmware meets minimum V4.7 revision requirements before installation.
2. Q: What field communication bus does this legacy CPU use to interface ABB drives and tension load cells?A: Integrated RS485 fieldbus serves as the primary plant device network; the front RS232 port is reserved exclusively for AdvaBuild engineering station programming and diagnostics.
3. Q: Does long-term new surplus storage degrade the internal backup lithium battery or factory communication calibration?A: Bench testing verifies no permanent calibration drift on stocked units; battery shelf life reduces 1 year per 3 years of warehouse storage. A full end-to-end communication test report ships with each order for maintenance documentation files.
4. Q: Can this processor be deployed for new greenfield manufacturing automation lines?A: Not recommended. ABB ended all firmware updates and direct technical support for the Advant Controller platform. Modern AC800M CPUs offer active OEM support, SIL safety certification and expanded I/O scalability for new facility builds. This unit is strictly for legacy spare replacement.
5. Q: What lead time applies for bulk spare orders to complete a full mill rack modernization project?A: Standard in-stock lead time is 7–10 working days to North America, UK, Australia, and Southeast Asian ports; expedited air freight options are available for emergency unplanned downtime orders at an added logistics cost.
6. Q: How does this processor compare to older PM810 CPU variants?A: This unit expands maximum supported I/O subracks from 4 to 8 and adds configurable scan cycle timing for variable-speed web lines; mechanical rack footprint and communication protocol remain fully interchangeable for drop-in replacement of PM810 hardware.
