Product Core Brief

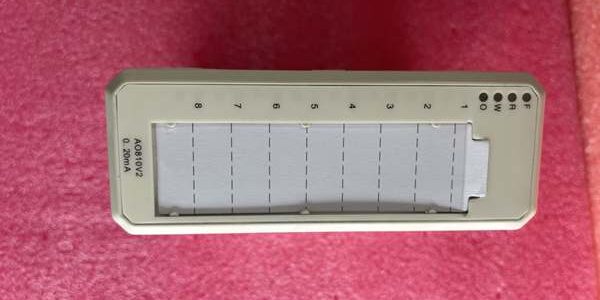

• Model: AO810V2, OEM Article Code 3BSE038415R1
• Brand: ABB
• Series: S800 Distributed I/O System for AC800M / System 800xA / Freelance DCS
• Core Function: Converts digital controller setpoints to 8-channel 0–20mA / 4–20mA analog drive signals for modulating valves and dampers, with configurable Output Safe Position (OSP) fault state.
• Product Type: Rack slide-in non-HART analog output I/O module
• Key Specs: 8 single-ended current-only channels | 14-bit D/A resolution | 500 VAC group dielectric isolationNote: Active OEM spare, new original surplus stock available; no onboard HART modem circuitry, upgraded 14-bit DAC vs legacy AO810.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, typical draw 170 mA, max power dissipation 2.0 W
• Supported output signal ranges: 0–20 mA, 4–20 mA; voltage output modes unsupported
• D/A hardware: 14-bit unsigned conversion per independent channelABB
• Full 8-channel output refresh cycle: ≤ 2 ms total scan rateABB
• Max permissible load resistance: 500 Ω single supply (L1+); up to 850 Ω dual auxiliary supply (L2+)ABB
• Measurement accuracy: Max ±0.1 % full scale at 25 °C ambient, temperature drift ≤60 ppm/°CABB
• Galvanic isolation: Single group isolation between field actuator wiring and backplane logic, 500 VAC 1-minute dielectric withstand
• Circuit protection: Per-channel self-resetting PTC short-circuit current limiting capped at 26 mA; tolerant to accidental short to ground or +24 VDCABB
• Built-in diagnostics: Cyclic self-test, open-loop wire-break detection for current loops, output supply under-voltage supervision, over/under-range flaggingABB
• OSP functionality: User-programmable fixed mA output activated during Profibus loss, module fault or supply dropoutABB
• PCB coating: ISA-S71.04 G3 grade conformal coating for mild corrosive cabinet atmospheres
• Status indicators: Four universal front LEDs: Green RUN, Red FAULT, Yellow WARNING, Yellow OSP active
• Mechanical form: Standard S800 slide-in card, hot-swap certified to IEC 61131-2; compatible with TU810, TU812, TU814, TU830, TU833 termination unitsABB
• Operating ambient: 0 °C to +55 °C continuous duty; compact MTU racks limited to 0–40 °C
• Storage range: -40 °C to +70 °C, non-condensing 5–95 % relative humidity
• Max field wiring length: 600 meters with fully shielded twisted pair control cableABB
• Physical dimensions: 45 mm W × 119 mm H × 102 mm D (111 mm D including terminal connector)ABB
• Net weight: 0.18 kgABB

Product Introduction

This I/O card is a revised high-precision analog drive component built exclusively for S800 I/O racks paired with AC800M and 800xA DCS controllers. It delivers steady modulating command signals to standard 2-wire valve positioners without digital HART communication capability.Group galvanic isolation blocks common-mode noise from nearby variable frequency drives, holding steady-state output deviation below 0.1% full scale during large motor load transients. Upgraded 14-bit DAC delivers finer positioning resolution vs the original AO810 12-bit variant, while native OSP logic removes custom fault ladder logic for safety-critical control loops.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers and 3BSE part code against ABB S800 spare part databases. Inspect conformal coating for delamination, terminal block spring tension and full front LED functionality. Reject units with torn factory anti-static packaging to filter counterfeit inventory.
2. Live Testing: Seat the module in an S800 MTU test rack paired with an AC800M PM865 controller simulator. Run continuous 24-hour cyclic output sweep testing across all channels while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate field wiring short-circuits, open current loops and forced OSP trigger to validate PTC current limiting, wire-break alarm timing and fault state output behavior.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between field channel group and backplane logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no erratic output swing or false fault flags.
4. Firmware/Config Backup: Record factory default OSP preset values via Control Builder M engineering software. Capture high-resolution photos of terminal pin labeling for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over the front terminal header. Place the card inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: AC800M controller firmware older than v5.1.3 lacks register mapping for 14-bit DAC resolution and enhanced wire-break diagnostic logic. Post-replacement, the DCS will show coarse valve positioning steps and intermittent AO COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before rack insertion.❗HART Device Compatibility Risk: No onboard HART signal processing hardware. Installing smart HART valve positioners on its channels disables all remote calibration and device diagnostic workflows; select AO815 for HART-capable field equipment.❗Wiring Incompatibilities: Unshielded field wiring introduces mains interference into current outputs, creating ±0.3% full scale output swing during VFD transients. Use OEM shielded twisted pair cable with single-point chassis ground at the S800 rack terminal bar, follow 0.6 N·m torque specs for terminal screws.❗Backplane Power Draw Changes: A degraded rack 24VDC supply with less than 20% current headroom cannot support the unit plus multiple analog input cards during controller cold startup, triggering repeated backplane resets and total loss of modulating valve control signals. Recalculate total rack load before swapping the card.❗ESD Dangers: Ungrounded handling exposes D/A output analog traces to static discharge from dry control room air. Field records show unprotected handling burns output drive circuits; full boiler/turbine unit downtime labor cost exceeds $1,510. Remediation: Place anti-static mat under the rack, wear grounded wrist strap, touch bare rack chassis ground for 3 seconds before handling the PCB.

4-step replacement guide

1. Pre-install: Lock out and tag rack 24VDC auxiliary power for high-EMI sites; pause Profibus fieldbus communication if performing live hot-swap. Photograph terminal wiring layout and existing channel OSP assignments from the old unit; set all critical modulating valves to manual bypass position.
2. Removal: Release the rack slide latch, pull the old card free and disconnect terminal wiring one channel at a time to avoid cross-channel miswiring to safety-critical control loops.
3. Install: Transfer valve actuator wiring harness to the new unit’s terminal header, slide the card fully into the MTU rack slot and lock the slide latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all front LEDs activate correctly, connect a precision mA calibrator to confirm stable high-resolution output ramping and OSP fault state behavior before resuming full DCS fieldbus communication and automatic valve modulation.

FAQ (Frequently Asked Questions)

Q: Can this module be hot-swapped while the rack remains powered?A: Yes, the hardware carries official ABB hot-swap certification for standard low-EMI control rooms. For cabinets housing medium voltage drives or high-frequency VFDs, lock out auxiliary power first to avoid backplane data corruption from voltage transients.Q: Does this card carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty coverage follows component lifecycle timelines. All surplus inventory passes full in-house bench QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during validation testing.Q: Can legacy AO810 serve as a direct drop-in replacement for the unit?A: Mechanical rack fit only. AO810 uses 12-bit DAC with reduced resolution and older diagnostic register mapping. Swapping without re-tuning DCS valve position PID loops creates visible positioning deadband error.Q: What minimum controller firmware version enables full 14-bit resolution and enhanced wire-break support?A: AC800M controller firmware v5.1.3 or newer. Older builds truncate output resolution to 12-bit and fail to flag marginal open-loop wiring faults.Q: Will the unit retain OSP fail-safe output and channel scaling settings after power loss?A: No configuration data stores on-board. All channel mA range, OSP value and loop diagnostic parameters reside in the AC800M controller’s non-volatile memory. No re-calibration of the device itself is needed post-swap.Q: Is the unit compatible with Symphony Plus SD Series DCS racks?A: No. The module uses the proprietary Profibus backplane bus, which is electrically incompatible with Symphony HN800 I/O rack architecture and cannot be cross-mounted.Q: Can voltage-type actuator loads be wired to this module’s terminals?A: No. The hardware only provides current sourcing drive circuitry; voltage actuator wiring will register constant over-range fault codes and fail to maintain stable control positioning.
