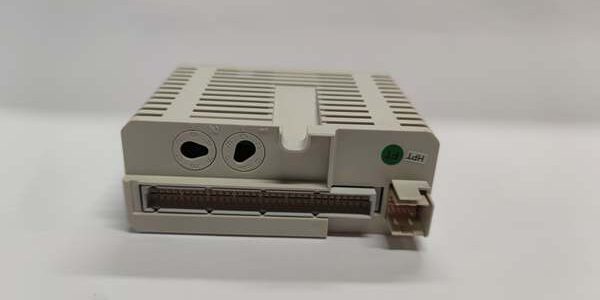

Product Core Brief

• Model: , OEM Article Code 3BSE052605R1
• Brand: ABB
• Series: S800 Distributed I/O System for AC800M / System 800xA / Freelance DCS
• Core Function: Converts digital controller setpoints to 8-channel 0–20mA / 4–20mA analog drive signals for HART smart valve positioners, supports bidirectional HART 7 digital communication for device diagnostics and remote calibration.
• Product Type: Rack slide-in HART-capable analog output I/O module
• Key Specs: 8 single-ended current-only channels | 12-bit D/A resolution | 500 VAC group dielectric isolation + integrated HART modemNote: Active OEM spare, new original surplus stock available; built-in point-to-point HART pass-through, OSP safe-position fault logic supported.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, typical draw 190 mA, max power dissipation 2.3 W
• Supported output signal ranges: 0–20 mA, 4–20 mA; voltage output modes unsupported
• D/A hardware: 12-bit unsigned conversion per independent channel
• Full 8-channel output refresh cycle: ≤ 12 ms total scan rate
• Max permissible load resistance: 750 Ω per channel for standard 4–20mA HART positioner loops
• Measurement accuracy: Max ±0.1 % full scale at 25 °C ambient, temperature drift ≤55 ppm/°C
• Galvanic isolation: Single group isolation between field actuator wiring and backplane logic, 500 VAC 1-minute dielectric withstand
• Circuit protection: Per-channel self-resetting PTC short-circuit current limiting capped at 26 mA; tolerant to accidental short to ground or +24 VDC
• HART compliance: HART 7 pass-through, point-to-point communication only; dedicated analog filter required for active HART polling channels
• Built-in diagnostics: Cyclic self-test, open-loop wire-break detection, output supply under-voltage supervision, over/under-range flagging, internal hardware fault reporting
• OSP functionality: User-programmable fixed mA output activated during Profibus loss, module fault or supply dropout
• PCB coating: ISA-S71.04 G3 grade conformal coating for mild corrosive cabinet atmospheres
• Status indicators: Four universal front LEDs: Green RUN, Red FAULT, Yellow WARNING, Yellow OSP active
• Mechanical form: Standard S800 slide-in card, hot-swap certified to IEC 61131-2; compatible with TU810, TU812, TU814, TU830, TU833 termination units
• Operating ambient: 0 °C to +55 °C continuous duty; compact MTU racks limited to 0–40 °C
• Storage range: -40 °C to +70 °C, non-condensing 5–95 % relative humidity
• Max field wiring length: 600 meters with fully shielded twisted pair control cable
• Physical dimensions: 45 mm W × 119 mm H × 102 mm D (111 mm D including terminal connector)
• Net weight: 0.19 kg

Product Introduction

This I/O card is a HART-enabled analog drive component built exclusively for S800 I/O racks paired with AC800M and 800xA DCS controllers. It delivers steady modulating command signals to smart 2-wire valve positioners and proportional field actuators while enabling direct digital access to device health data without separate HART multiplexer hardware.Group galvanic isolation blocks common-mode noise from nearby variable frequency drives, holding steady-state output deviation below 0.1% full scale during large motor load transients. Integrated HART 7 modem eliminates field trips for positioner calibration, and native OSP logic removes custom fault ladder logic for safety-critical control loops.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers and 3BSE part code against ABB S800 spare part databases. Inspect conformal coating for delamination, terminal block spring tension and full front LED functionality. Reject units with torn factory anti-static packaging to filter counterfeit inventory.
2. Live Testing: Seat the module in an S800 MTU test rack paired with an AC800M PM865 controller simulator. Run continuous 24-hour cyclic output sweep testing across all channels while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate field wiring short-circuits, open current loops, forced OSP trigger and HART device polling to validate PTC current limiting, wire-break alarm timing and bidirectional digital communication stability.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between field channel group and backplane logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no erratic output swing or false fault flags during active HART polling.
4. Firmware/Config Backup: Record factory default OSP preset values and HART filter parameters via Control Builder M engineering software. Capture high-resolution photos of terminal pin labeling for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over the front terminal header. Place the card inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: AC800M controller firmware older than v5.2.1 lacks register mapping for HART secondary variable polling logic. Post-replacement, the DCS will fail to retrieve positioner diagnostic data and throw intermittent AO COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before rack insertion.❗HART Filter Misconfiguration Risk: Disabling the channel analog filter for HART-enabled loops creates digital signal distortion, leading to intermittent communication timeouts between the module and smart valve positioners. Enable dedicated HART filter setting for all channels connected to HART field devices.❗Wiring Incompatibilities: Unshielded field wiring introduces mains interference into current outputs, creating ±0.3% full scale output swing during VFD transients and corrupted HART digital frames. Use OEM shielded twisted pair cable with single-point chassis ground at the rack terminal bar, follow 0.6 N·m torque specs for terminal screws.❗Backplane Power Draw Changes: A degraded rack 24VDC supply with less than 20% current headroom cannot support the unit plus multiple analog input cards during controller cold startup, triggering repeated backplane resets and total loss of modulating valve control signals. Recalculate total rack load before swapping the card.❗ESD Dangers: Ungrounded handling exposes D/A output analog traces and HART modem circuitry to static discharge from dry control room air. Field records show unprotected handling burns output drive circuits; full boiler/turbine unit downtime labor cost exceeds $1,530. Remediation: Place anti-static mat under the rack, wear grounded wrist strap, touch bare rack chassis ground for 3 seconds before handling the PCB.

4-step replacement guide

1. Pre-install: Lock out and tag rack 24VDC auxiliary power for high-EMI sites; pause Profibus fieldbus communication if performing live hot-swap. Photograph terminal wiring layout, HART filter assignments and existing channel OSP values from the old unit; set all critical modulating valves to manual bypass position.
2. Removal: Release the rack slide latch, pull the old card free and disconnect terminal wiring one channel at a time to avoid cross-channel miswiring to safety-critical control loops.
3. Install: Transfer valve actuator wiring harness to the new unit’s terminal header, slide the card fully into the MTU rack slot and lock the slide latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all front LEDs activate correctly, connect a precision mA calibrator and HART communicator to confirm stable output ramping, fault-state OSP behavior and uninterrupted digital device polling before resuming full DCS fieldbus communication and automatic valve modulation.

FAQ (Frequently Asked Questions)

Q: Can this module be hot-swapped while the rack remains powered?A: Yes, the hardware carries official ABB hot-swap certification for standard low-EMI control rooms. For cabinets housing medium voltage drives or high-frequency VFDs, lock out auxiliary power first to avoid backplane data corruption from voltage transients.Q: Does this card carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty coverage follows component lifecycle timelines. All surplus inventory passes full in-house bench QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during validation testing.Q: Can AO810V2 serve as a direct drop-in replacement for the module?A: Mechanical rack fit only. AO810V2 lacks integrated HART modem hardware and uses different backplane register mapping. Swapping without reworking DCS tag logic disables all remote valve calibration and positioner diagnostic workflows.Q: What minimum controller firmware version enables full HART secondary variable polling support?A: AC800M controller firmware v5.2.1 or newer. Older builds lack register addresses for multi-variable HART data, only delivering raw analog setpoints with no access to positioner fault and performance metrics.Q: Will the unit retain OSP fail-safe output and HART filter configuration settings after power loss?A: No configuration data stores on-board. All channel mA range, OSP value, HART filter and loop diagnostic parameters reside in the controller’s non-volatile memory. No re-calibration of the device itself is needed post-swap.Q: Is the unit compatible with Symphony Plus SD Series DCS racks?A: No. The module uses the proprietary Profibus backplane bus, which is electrically incompatible with Symphony HN800 I/O rack architecture and cannot be cross-mounted.Q: Can multiple HART devices be multi-dropped on a single channel of this module?A: No. The on-board HART modem only supports point-to-point communication. Each channel requires a single HART field device; multi-drop wiring triggers persistent communication fault codes on the DCS HMI.
