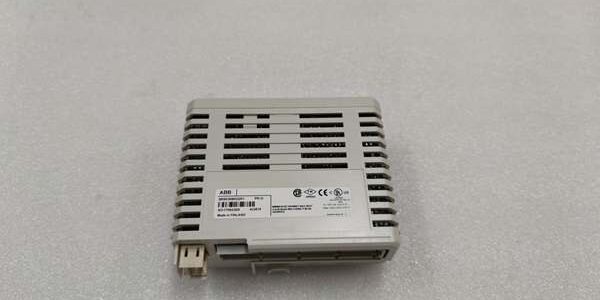

Product Core Brief

• Model: AO810, OEM Article Code 3BSE008518R1 (legacy original variant; updated revision AO810V2 3BSE038415R1)
• Brand: ABB
• Series: S800 Distributed I/O System for AC800M / System 800xA / Freelance DCS
• Core Function: Converts digital controller setpoints to 8-channel 0–20mA / 4–20mA analog signals for modulating valves and dampers, supports configurable Output Safe Position (OSP) fault state.
• Product Type: Rack slide-in non-HART analog output I/O module
• Key Specs: 8 single-ended current-only channels | 12-bit D/A resolution | 500 VAC group dielectric isolationNote: Active OEM spare, new original surplus stock available; no onboard HART modem circuitry.

Key Technical Specifications

• Operating supply: 24 V DC ±10 %, typical draw 175 mA, max power dissipation 2.1 W
• Supported output signal ranges: 0–20 mA, 4–20 mA; voltage output modes not supported
• D/A hardware: 12-bit unsigned conversion per independent channel
• Full 8-channel output refresh cycle: ≤ 2 ms total scan rate
• Max permissible load resistance: 500 Ω single supply; up to 850 Ω dual auxiliary supply
• Measurement accuracy: Max ±0.1 % full scale at 25 °C ambient, temperature drift ≤60 ppm/°C
• Galvanic isolation: Single group isolation between field actuator wiring and backplane logic, 500 VAC 1-minute dielectric withstand
• Circuit protection: Per-channel self-resetting PTC short-circuit current limiting capped at 26 mA
• Built-in diagnostics: Open-loop wire-break detection for disconnected current loops, over-range flagging, module supply supervision
• OSP functionality: User-programmable fixed output value activated during communication loss or module fault
• PCB coating: ISA-S71.04 G3 grade conformal coating for mild corrosive cabinet atmospheres
• Status indicators: Four universal front LEDs: Green RUN, Red FAULT, Yellow WARNING, Yellow OSP active
• Mechanical form: Standard S800 slide-in card, hot-swap certified to IEC 61131-2; compatible with TU810, TU812, TU814 termination units
• Operating ambient: 0 °C to +55 °C continuous duty; compact MTU racks limited to 0–40 °C
• Storage range: -40 °C to +70 °C, non-condensing 5–95 % relative humidity
• Max field wiring length: 600 meters with fully shielded twisted pair control cable
• Physical dimensions: 45 mm W × 119 mm H × 111 mm D (including terminal connector)
• Net weight: 0.20 kg

Product Introduction

This I/O card is a basic analog drive component built exclusively for S800 I/O racks paired with AC800M and 800xA DCS controllers. It delivers steady modulating command signals to standard 2-wire valve positioners without digital HART communication capability.Group galvanic isolation blocks common-mode noise from nearby variable frequency drives, holding steady-state output deviation below 0.1% full scale during large motor load transients. Configurable OSP logic eliminates custom fault ladder logic by locking valve position to a predefined safe mA level if backplane communication drops.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers and 3BSE part code against ABB S800 spare part databases. Inspect conformal coating for delamination, terminal block spring tension and full front LED functionality. Reject units with torn factory anti-static packaging to filter counterfeit inventory.
2. Live Testing: Seat the module in an S800 MTU test rack paired with an AC800M PM865 controller simulator. Run continuous 24-hour cyclic output sweep testing across all channels while logging stable 24VDC supply with a Fluke 115 multimeter. Simulate field wiring short-circuits, open current loops and forced OSP trigger to validate PTC current limiting, wire-break alarm timing and fault state output behavior.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between field channel group and backplane logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no erratic output swing or false fault flags.
4. Firmware/Config Backup: Record factory default OSP preset values via Control Builder M engineering software. Capture high-resolution photos of terminal pin labeling for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust caps over the front terminal header. Place the card inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: AC800M controller firmware older than v5.0.9 lacks register mapping for wire-break diagnostic flag logic. Post-replacement, the DCS will ignore disconnected valve loop signals and throw intermittent AO COMM LOSS alarms. Remediation: Flash matching firmware revision to the main controller before rack insertion.❗HART Device Compatibility Risk: No onboard HART signal processing hardware. Installing smart HART valve positioners on its channels disables all remote calibration and device diagnostic workflows; select AO815 for HART-capable field equipment.❗Wiring Incompatibilities: Unshielded field wiring introduces mains interference into current outputs, creating ±0.3% full scale output swing during VFD transients. Use OEM shielded twisted pair cable with single-point chassis ground at the rack terminal bar, follow 0.6 N·m torque specs for terminal screws.❗Backplane Power Draw Changes: A degraded rack 24VDC supply with less than 20% current headroom cannot support the unit plus multiple analog input cards during controller cold startup, triggering repeated backplane resets and total loss of modulating valve control signals. Recalculate total rack load before swapping the card.❗ESD Dangers: Ungrounded handling exposes D/A output analog traces to static discharge from dry control room air. Field records show unprotected handling burns output drive circuits; full boiler/turbine unit downtime labor cost exceeds $1,460. Remediation: Place anti-static mat under the rack, wear grounded wrist strap, touch bare rack chassis ground for 3 seconds before handling the PCB.

4-step replacement guide

1. Pre-install: Lock out and tag rack 24VDC auxiliary power for high-EMI sites; pause Profibus fieldbus communication if performing live hot-swap. Photograph terminal wiring layout and existing channel OSP assignments from the old unit; set all critical modulating valves to manual bypass position.
2. Removal: Release the rack slide latch, pull the old card free and disconnect terminal wiring one channel at a time to avoid cross-channel miswiring to safety-critical control loops.
3. Install: Transfer valve actuator wiring harness to the new unit’s terminal header, slide the card fully into the MTU rack slot and lock the slide latch.
4. Power-on Test: Restore 24VDC auxiliary power first; verify all front LEDs activate correctly, connect a precision mA calibrator to confirm stable output signal ramping and OSP fault state behavior before resuming full DCS fieldbus communication and automatic valve modulation.

FAQ (Frequently Asked Questions)

Q: Can this module be hot-swapped while the rack remains powered?A: Yes, the hardware carries official ABB hot-swap certification for standard low-EMI control rooms. For cabinets housing medium voltage drives or high-frequency VFDs, lock out auxiliary power first to avoid backplane data corruption from voltage transients.Q: Does this card carry original OEM factory warranty when purchased as new surplus?A: ABB factory warranty coverage follows component lifecycle timelines. All surplus inventory passes full in-house QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during bench validation.Q: Can AO815 serve as a direct drop-in replacement for the module?A: Mechanical rack fit only. AO815 integrates built-in HART pass-through circuitry and different backplane register mapping. Swapping without reworking DCS tag logic enables HART polling but adds minor bus scan latency; field wiring pinout remains identical for 4–20mA loops.Q: What minimum controller firmware version enables full wire-break diagnostic support?A: AC800M controller firmware v5.0.9 or newer. Older builds lack register addresses for open-loop current detection, only delivering raw analog setpoints with no broken valve loop alarm flags.Q: Will the unit retain OSP fail-safe output and channel scaling settings after power loss?A: No configuration data stores on-board. All channel mA range, OSP value and loop diagnostic parameters reside in the controller’s non-volatile memory. No re-calibration of the device itself is needed post-swap.Q: Is the unit compatible with Symphony Plus SD Series DCS racks?A: No. The module uses the proprietary Profibus backplane bus, which is electrically incompatible with Symphony HN800 I/O rack architecture and cannot be cross-mounted.Q: Can voltage-type actuator loads be wired to this module’s terminals?A: No. The hardware only provides current sourcing drive circuitry; voltage actuator wiring will register constant over-range fault codes and fail to maintain stable control positioning.
