Product Core Brief

• Model: DSDP150, OEM part number 57160001-GF; complete kit variant DSDP150K01 paired with DSTD150A connection unit
• Brand: ABB
• Series: S100 rack pulse input hardware for Advant Mod300 legacy DCS systems
• Core Function: Capture quadrature encoder pulse signals and frequency pulses from flowmeters, tachometers, and positioning sensors for speed/position calculation

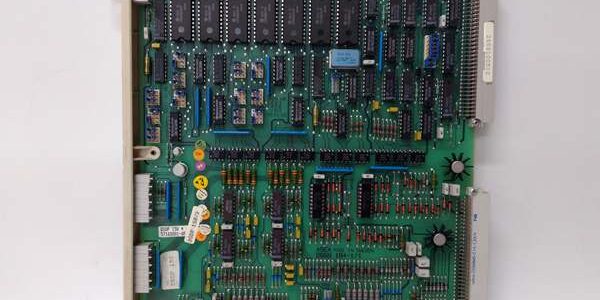

• Product Type: Slide-in S100 rack high-speed counter PCB, exclusive mating with DSTD150A field termination unit
• Key Specs: 12 independent pulse input channels | Max 10kHz sampling frequency | Multi-voltage encoder support | Group galvanic isolationNote: Discontinued legacy motion/frequency I/O module, stocked inventory is New Surplus with intact factory anti-static sealed packaging.

Key Technical Specifications

• Auxiliary rack operating supply: 24VDC ±20% logic feed, total module power draw ≤1.3W
• Supported encoder signal voltages: 5VDC, 12VDC, 24VDC incremental pulse inputs
• Maximum pulse input frequency: 10kHz per channel, 32-bit up/down counter register
• Input pull-up resistance: 5.6kΩ internal bias resistor for open-collector encoders
• Channel grouping: Three isolated groups of four pulse channels each
• Galvanic isolation: 500VAC dielectric separation between each group and S100 backplane logic
• Circuit protection: Per-channel overvoltage transient clamping, reverse encoder supply blocking, short-circuit current limiting
• Onboard diagnostics: Front LED channel pulse activity indicator, global undervoltage fault lamp
• Hot-swap rating: Fully hot-swappable on energized Mod300 S100 backplane racks
• Continuous operating temperature: -20°C to +60°C full rated pulse load; linear counting performance derates above 60°C
• Storage environmental limits: -40°C to +85°C, 5%–95% RH non-condensing
• Physical dimensions: 209.7mm D × 18mm W × 225mm H; unit mass 0.425kg
• Compliance standards: CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC
• System compatibility: Advant Mod300 S100 racks with AC410 / AC460 controllers; incompatible with S800, AC800M, Symphony HR, UNITROL, S400 remote I/O platforms

Product Introduction

This dedicated pulse input rack card acquires high-frequency incremental encoder and flow pulse signals for Mod300 process and motion control racks. Three separate isolated channel groups contain fault spread, so a shorted encoder cable only disables four counting channels instead of the full 12-point bank.Internal 5.6kΩ pull-up resistors eliminate external bias wiring for open-collector encoders, and the integrated 32-bit counter register avoids overflow during long-duration flow totalization on boiler and pipeline metering systems.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB Mod300 legacy component trace databases; inspect backplane gold edge fingers for oxidation, front channel LED segment integrity, PCB conformal coating for peeling; verify factory static packaging seal remains unbroken for surplus inventory.
2. Live Testing: Mount the unit to a Mod300 rack test bench paired with a controller simulator and programmable pulse generators delivering 0–10kHz quadrature signals; run uninterrupted 24-hour cyclic counting across all 12 channels; use a Fluke 115 to log steady 24VDC auxiliary supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between every four-channel isolated group and rack backplane logic ground; pass threshold set at >10MΩ insulation resistance; inject short-circuit and reversed encoder supply faults to confirm hardware lockout activates without damaging pulse input optocouplers.
4. Firmware/Config Backup: No user-programmable onboard firmware; photograph DSTD150A terminal pin layouts and document encoder voltage jumper settings for site commissioning reference.
5. Final QC & Packaging: Torque all DSTD150A terminal screw connections to OEM torque specifications; enclose the board in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Mismatch Risk: Outdated Mod300 rack controller firmware lacks calibrated pulse sampling timing profiles for the module. Fault outcome: Truncated pulse counts, inaccurate flow totalization and positioning feedback during conveyor speed transients. Mitigation: Flash matching validated firmware revisions to the Mod300 CPU before rack power-up; archive compatible firmware files to plant engineering servers.❗Excessive Pulse Frequency Risk: Connecting encoders outputting pulses above the 10kHz rated maximum saturates internal counter logic. Fault outcome: Lost pulse edges, large cumulative flow measurement errors. Mitigation: Install pulse divider hardware for encoder speeds generating frequencies exceeding 10kHz.❗Platform Incompatibility Risk: Attempting to install the module into S800 or UNITROL racks creates mismatched backplane pinouts and unregulated supply exposure. Fault outcome: Burned pulse input optocoupler circuits, permanent channel failure. Mitigation: Only deploy the unit within dedicated Mod300 racks paired with DSTD150A connection units.❗Cross-Group Common Wiring Error: Jumping encoder negative return lines across separate isolated channel groups breaks galvanic separation performance. Fault outcome: Cross-group pulse crosstalk generating false incremental count values. Mitigation: Maintain isolated negative return wiring for each four-channel group per the wiring schematic.❗ESD Dangers: Low-humidity packaging plant control room air generates static charge that damages delicate pulse input optocouplers on the PCB. Field service logs show ungrounded handling creates intermittent count drift faults that require multiple encoder calibration passes to isolate. Mitigation: Establish direct contact with bare cabinet chassis ground metal for three full seconds before touching backplane edge fingers or field terminal blocks.

4-Step Replacement Guide

1. Pre-install: Set the Mod300 controller to manual hold mode to freeze all flow totalization and positioning logic values; photograph all encoder and flowmeter pulse wiring assignments on the connection unit, and record encoder voltage jumper configurations for each channel group.
2. Removal: Unlatch the module from the rack slot by releasing retention clips and pulling straight outward off gold backplane contacts; leave all field wiring terminated to the connection unit to eliminate full retermination labor.
3. Install: Align the new unit’s rear backplane contacts with the rack slot and push fully seated until retention clips audibly lock; replicate encoder voltage jumper settings and pulse counting parameter configurations within Mod300 configuration software to match original process requirements.
4. Power-on Test: Energize 24VDC auxiliary rack supply; inject calibrated 0–10kHz quadrature pulse signals to all 12 channels via signal generator, confirm stable, non-truncated counter register readbacks with zero short-circuit fault flags accumulating during 30 minutes of idle counting testing before restoring live flow and motion control logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly replace general-purpose DSDP140B digital output hardware without Mod300 point database edits?A: No, this module is a dedicated pulse input counter while DSDP140B is a sinking discrete output card, with incompatible DSTD terminal pin mapping and rack bus data registers. Cross swap requires full rework of all field wiring and complete reindexing of DCS point addresses.Q: Does hot-swap capability remove the requirement to set the controller to manual hold mode during replacement?A: Hot-swap only protects the module’s internal circuits from power surge damage; it does not freeze counter register values during the swap window. Manual hold mode remains mandatory to avoid corrupted flow totalization and positioning setpoints.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from over-frequency pulse inputs, ungrounded ESD handling, cross-platform rack installation, or sustained channel wiring short-circuits is excluded from warranty claims.Q: If one single channel inside a four-channel group fails, can individual optocoupler components be repaired on-site?A: Field repair of damaged pulse input optocouplers is not recommended for critical flow metering and positioning control systems. Repaired PCB trace paths degrade group isolation performance and raise risk of cumulative counting error events; full module swap is the standard site maintenance procedure.Q: Can multiple units share a single 24VDC auxiliary power circuit in one Mod300 rack?A: Multiple units may share one 24VDC supply only if the supply unit maintains 20% extra current headroom above total combined module power draw. Independent auxiliary feed wiring is recommended for racks with five or more installed pulse counter modules to eliminate voltage sag during simultaneous high-frequency pulse sampling events.Q: Is this pulse counter module rated for Class 1 Div 2 hazardous cabinet deployment inside refinery pump MCC rooms?A: No, the open rack slide-in PCB design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated I/O enclosures are required for hazardous area flowmeter and encoder installations.Q: What long-term upgrade path exists as this component reaches ABB end-of-support status?A: Modern ABB control deployments use AC500 PLC high-speed counter modules for new cabinet builds. Retrofit swaps require full Mod300 rack migration, DSTD wiring rework, and complete pulse channel parameter reconfiguration in the DCS control database.
