Product Core Brief

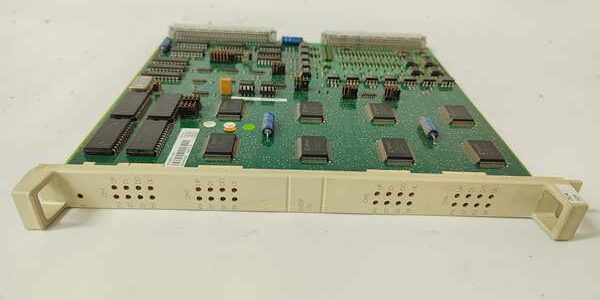

• Model: DSDP170, OEM order code 57160001-ADF, full kit variant DSDP170K01 paired with DSTD170 connection unit
• Brand: ABB
• Series: S100 rack high-performance pulse counter hardware for Advant Mod300 legacy DCS systems
• Core Function: Capture high-frequency quadrature encoder, tachometer, and flowmeter pulse signals to calculate axis position, rotational speed, and totalized flow volume
• Product Type: Slide-in S100 rack pulse input PCB, exclusive mating with DSTD170 field termination unit
• Key Specs: 4 independent differential counter channels | Max 2.5MHz input frequency | Multi-voltage encoder support | Per-channel 500VAC galvanic isolationNote: Discontinued legacy high-speed motion I/O module, stocked inventory is New Surplus with intact factory anti-static sealed packaging.

Key Technical Specifications

• Auxiliary rack operating supply: 24VDC ±20% logic feed, total module power draw ≤1.4W
• Supported encoder signal voltages: 5VDC, 12VDC, 24VDC differential incremental pulse inputs
• Maximum pulse input frequency: 2.5MHz per channel, 32-bit bidirectional up/down counter register
• Input circuit topology: Differential line receiver for noise rejection in high-EMI cabinet environments
• Galvanic isolation: Individual 500VAC dielectric separation for every single pulse channel
• Circuit protection: Per-channel overvoltage transient clamping, reverse encoder supply blocking, short-circuit current foldback limiting
• Onboard diagnostics: Front panel LED per-channel pulse activity indicator, global undervoltage and short-circuit fault lamp
• Hot-swap rating: Fully hot-swappable on energized Mod300 S100 backplane racks
• Continuous operating temperature: -20°C to +60°C full rated pulse load; linear counting performance derates above 60°C
• Storage environmental limits: -40°C to +85°C, 5%–95% RH non-condensing
• Physical dimensions: 324mm D × 22.5mm W × 234mm H; unit mass 0.43kg
• Compliance standards: CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC
• System compatibility: Advant Mod300 S100 racks with AC410 / AC460 controllers; incompatible with S800, AC800M, Symphony HR, UNITROL, S400 remote I/O platforms

Product Introduction

This high-performance pulse counter rack board acquires ultra-high-speed quadrature encoder and flow pulse signals for Mod300 heavy-industry motion and process control racks. Per-channel galvanic isolation eliminates cross-channel signal crosstalk induced by motor contactor switching noise.Differential line input receivers suppress common-mode EMI without external signal conditioning hardware, and 32-bit counter registers prevent overflow during long-duration totalization on turbine and pipeline metering systems.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against ABB Mod300 S100 legacy component trace databases; inspect backplane gold edge fingers for oxidation, front channel LED segment integrity, PCB conformal coating for peeling; verify factory static packaging seal remains unbroken for surplus inventory.
2. Live Testing: Mount the unit to a Mod300 rack test bench paired with a controller simulator and programmable differential pulse generators delivering 0–2.5MHz quadrature signals; run uninterrupted 24-hour cyclic counting across all four channels; use a Fluke 115 to log steady 24VDC auxiliary supply voltage through the full test cycle.
3. Electrical Testing: Perform 500VAC hipot insulation testing between every pulse input channel and rack backplane logic ground; pass threshold set at >10MΩ insulation resistance; inject short-circuit and reversed encoder supply faults to confirm hardware lockout activates without damaging differential receiver semiconductors.
4. Firmware/Config Backup: No user-programmable onboard firmware; photograph DSTD170 terminal pin layouts and document encoder voltage jumper settings for site commissioning reference.
5. Final QC & Packaging: Torque all DSTD170 terminal screw connections to OEM torque specifications; enclose the board in static-dissipative foam; attach a printed QC tag listing serial number and completed test metrics before carton sealing.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Mismatch Risk: Outdated Mod300 rack controller firmware lacks calibrated high-frequency pulse sampling timing profiles for the module. Fault outcome: Truncated pulse edges, large cumulative flow and positioning measurement errors during high-speed axis transients. Mitigation: Flash matching validated firmware revisions to the Mod300 CPU before rack power-up; archive compatible firmware files to plant engineering servers.❗Excessive Pulse Frequency Risk: Connecting encoders outputting pulses above the 2.5MHz rated maximum saturates internal counter logic. Fault outcome: Permanent count drift and lost position tracking for motion axes. Mitigation: Install pulse divider hardware for encoder speeds generating frequencies exceeding 2.5MHz.❗Platform Incompatibility Risk: Attempting to install the module into S800 or UNITROL racks creates mismatched backplane pinouts and unregulated supply exposure. Fault outcome: Burned differential receiver circuits, permanent channel failure. Mitigation: Only deploy the unit within dedicated Mod300 racks paired with DSTD170 connection units.❗Shared Common Wiring Error: Jumping differential signal return lines across separate isolated pulse channels breaks per-channel galvanic separation performance. Fault outcome: Cross-channel pulse crosstalk generating false incremental count values. Mitigation: Maintain fully isolated differential twisted pair wiring for each individual encoder per the wiring schematic.❗ESD Dangers: Low-humidity turbine control room air generates static charge that damages delicate differential pulse receiver ICs on the PCB. Field service logs show ungrounded handling creates intermittent position drift faults that require multiple encoder calibration passes to isolate. Mitigation: Establish direct contact with bare cabinet chassis ground metal for three full seconds before touching backplane edge fingers or field terminal blocks.

4-Step Replacement Guide

1. Pre-install: Set the Mod300 controller to manual hold mode to freeze all flow totalization and axis positioning logic values; photograph all encoder and flowmeter differential pulse wiring assignments on the connection unit, and record encoder voltage jumper configurations for each channel.
2. Removal: Unlatch the module from the rack slot by releasing retention clips and pulling straight outward off gold backplane contacts; leave all field wiring terminated to the connection unit to eliminate full retermination labor.
3. Install: Align the new unit’s rear backplane contacts with the rack slot and push fully seated until retention clips audibly lock; replicate encoder voltage jumper settings and high-speed pulse counting parameter configurations within Mod300 configuration software to match original process requirements.
4. Power-on Test: Energize 24VDC auxiliary rack supply; inject calibrated 0–2.5MHz quadrature differential pulse signals to all four channels via signal generator, confirm stable, non-truncated counter register readbacks with zero short-circuit fault flags accumulating during 30 minutes of idle counting testing before restoring live flow and motion control logic.

FAQ (Frequently Asked Questions)

Q: Can this unit directly replace lower-frequency DSDP150 pulse input hardware without Mod300 point database edits?A: No, DSDP150 uses 12 single-ended 10kHz channels with a different DSTD terminal pin mapping. Cross swap requires full rework of all field encoder wiring and complete reindexing of pulse channel point addresses in the Mod300 database.Q: Does hot-swap capability remove the requirement to set the controller to manual hold mode during replacement?A: Hot-swap only protects the module’s internal circuits from power surge damage; it does not freeze counter register values during the swap window. Manual hold mode remains mandatory to avoid corrupted flow totalization and positioning setpoints.Q: What warranty coverage applies to surplus stocked units?A: A 12-month limited warranty only covers factory manufacturing defects. Damage from over-frequency pulse inputs, ungrounded ESD handling, cross-platform rack installation, or sustained channel wiring short-circuits is excluded from warranty claims.Q: If one single pulse channel fails, can individual differential receiver components be repaired on-site?A: Field repair of damaged differential pulse input circuits is not recommended for critical turbine metering and motion positioning control systems. Repaired PCB trace paths degrade per-channel isolation performance and raise risk of cumulative counting error events; full module swap is the standard site maintenance procedure.Q: Can multiple units share a single 24VDC auxiliary power circuit in one Mod300 rack?A: Multiple units may share one 24VDC supply only if the supply unit maintains 20% extra current headroom above total combined module power draw. Independent auxiliary feed wiring is recommended for racks with four or more installed high-speed pulse counter modules to eliminate voltage sag during simultaneous maximum-frequency pulse sampling events.Q: Is this high-speed pulse counter module rated for Class 1 Div 2 hazardous cabinet deployment inside refinery pump MCC rooms?A: No, the open rack slide-in PCB design lacks intrinsic safety certification for flammable vapor environments. Flameproof dedicated I/O enclosures are required for hazardous area flowmeter and encoder installations.Q: What long-term upgrade path exists as this component reaches ABB end-of-support status?A: Modern ABB control deployments use AC500 PLC high-speed differential counter modules for new cabinet builds. Retrofit swaps require full Mod300 rack migration, DSTD wiring rework, and complete pulse channel parameter reconfiguration in the DCS control database.
