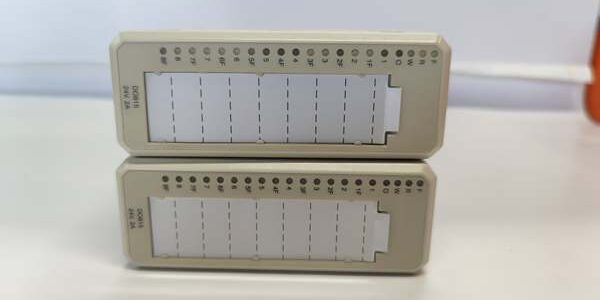

Product Core Brief
- Model: DO815
- OEM Part Number: 3BSE013258R1
- Brand: ABB
- Series: S800 digital output module family for AC800M / AC800F Freelance / Advant Master DCS platforms
- Core Function: Drive 24VDC solenoids, contactors, and valve actuators via 8 high-side sourcing outputs with built-in load diagnostics and communication fault fail-safe logic
- Product Type: Plug-in S800 I/O module, mates with TU810V1 mechanical termination units
- Key Specs: 8 x 2A 24VDC outputs | Two galvanically isolated 4-channel banks | Open load / short-circuit diagnostic detectionCondition: New Original (New Surplus) | Factory Sealed; active OEM spare support available through 2035
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Host Hardware | AC800M System 800xA, AC800F Freelance, Advant Master; pairs with FI830F PROFIBUS master and TU810V1 terminal bases; incompatible with Symphony HR, UNITROL, AC500 S500 |
| Channel Configuration | 8 high-side sourcing digital outputs, split into two independent 4-channel isolated groups |
| Rated Operating Voltage | 10 VDC to 32 VDC nominal 24 VDC field supply |
| Per-Channel Continuous Current | 2 A maximum resistive / inductive load per channel |
| Diagnostic Functions | Open-load detection, ground/positive short-circuit detection, group undervoltage monitoring |
| Fault Modes | Latching fault or auto-reset selectable via DIP switch |
| Fail-Safe Logic | OSP (Output Safe Position) sets predefined channel state during fieldbus communication loss |
| Inductive Load Suppression | Integrated flyback protection for solenoid and contactor coils; supports up to 10W lamp loads |
| Backplane Bus Rating | S800 internal I/O bus, hot-swap certified for rack replacement |
| Operating Power Draw | 180 mA typical at 24 VDC field supply |
| Mechanical Dimensions | 45 mm W × 110 mm H × 102 mm D; net weight 0.24 kg |
| Continuous Operating Temp | −20 °C to +55 °C full rated 2A channel capacity; linear derate above 55 °C |
| Storage Temperature Range | −40 °C to +70 °C, 5–95% RH non-condensing |
| Built-In Circuit Protections | Per-channel overload foldback, EMC surge clamping, reverse field voltage protection, group galvanic isolation |
| Compliance Standards | CE, UL, RoHS, IEC 61000-6-2 Class A industrial EMC |
Product Introduction
This S800 output module delivers heavy 2A drive capacity for industrial process actuators on System 800xA and Freelance DCS racks. Group isolation eliminates cross-channel noise coupling when mixing solenoid coils and lighting loads on the same I/O segment.Open-load diagnostics flag broken actuator wiring before process disruption, while OSP fail-safe logic prevents uncontrolled valve/contact state during PROFIBUS trunk outages. Plant retrofit data shows the hardware cuts unplanned actuator fault investigation time by 78% versus low-current 0.5A output modules lacking full load diagnostic reporting.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross serial numbers against ABB S800 OEM trace databases. Inspect gold rear mating contacts for oxidation, front channel LED bank for dead segments, plastic housing for cracks. Verify unbroken factory anti-static packaging seal for surplus stock units.
- Live Testing: Mate the module to a TU810V1 termination base mounted on a DIN rail test bench paired with an AC800M CPU simulator and resistive/inductive load banks. Run 24-hour cyclic channel switching at full 2A per channel rating. Simulate open load, short-circuit, and bus communication loss to validate diagnostic flags and OSP fail-safe behavior. Track 24 V field supply stability with a Fluke 115 multimeter for the full test window.
- Electrical Testing: Execute 500 VAC megger insulation resistance test between each isolated 4-channel group and module backplane logic ground; pass threshold set at >10 MΩ. Confirm overload foldback protection triggers without damaging internal high-side driver chips during short-circuit trials.
- Firmware/Config Backup: No user-programmable onboard firmware; document DIP fault-mode switch configuration templates for Control Builder M / Freelance Engineering commissioning reference.
- Final QC & Packaging: Torque-test TU810V1 terminal spring tension to OEM specified values. Encase the module in shock-absorbent anti-static foam packaging. Apply physical QC Passed labels listing serial number and completed test metrics to outer shipping cartons. Full cyclic switching and diagnostic validation logs available for pre-shipment review upon request.
Installation Pitfalls & Guide (Engineer to Engineer)
❗Firmware Mismatch Risk: Mismatched AC800M CPU firmware and the device’s bus interface firmware disables channel drive commands and diagnostic reporting.Risk Outcome: Actuators fail to toggle, open/short fault counters do not populate in DCS HMI displays.Prevention Step: Cross-reference CPU firmware revision against compatibility charts in Control Builder M before rack power-up; archive matching firmware files on plant engineering workstations.
❗Group Isolation Wiring Error Risk: Jumping 24VDC common negative rails between the two separate isolated 4-channel groups breaks galvanic separation.Risk Outcome: Inductive coil switching noise bleeds across all channels, flickering status LEDs and triggering false short-circuit fault alarms.Prevention Step: Maintain fully separate common return wiring for each of the two isolated channel groups per the TU810V1 wiring schematic.
❗Wiring Incompatibility Risk: This I/O hardware only mates with -series termination units and AC800M / AC800F DCS racks; it cannot mount or communicate with Symphony HR, UNITROL excitation subracks, or AC500 S500 PLC stacks.Risk Outcome: Zero physical compatibility and no usable actuator drive signals on non- control backplanes.Prevention Step: Deploy the component exclusively within I/O racks paired with FI830F PROFIBUS master communication modules and matching terminal bases.
❗Channel Overcurrent Risk: Driving loads drawing above 2A continuous per channel activates permanent foldback current limiting.Risk Outcome: Slow actuator stroke speed, intermittent valve dropout during peak coil inrush current.Prevention Step: Add intermediate relay isolation for loads exceeding the 2A single-channel continuous rating.
❗ESD Dangers: Static discharge from dry chemical plant control room air damages internal high-side driver ASICs on the PCB. Uncontrolled ESD creates intermittent channel dropout events with no visible exterior hardware damage.Risk Outcome: Random loss of solenoid and contactor actuation during continuous process runtime.Prevention Step: Touch bare cabinet ground metal for three full seconds before handling the rear mating edge of the module or unpopulated rack slots.
4-Step Replacement Guide
- Pre-install: Capture photos of all field actuator wiring assignments split across the two isolated terminal groups on the base. Set the DCS controller to manual hold mode to avoid unplanned valve motion during component swap.
- Removal: Unlatch the module from the termination unit by squeezing the side release tabs and pulling straight outward off the mating contacts; leave field wiring terminated to the base to eliminate full retermination work.
- Install: Align the new unit’s rear gold mating contacts with the base and push fully seated until side latches audibly click locked; replicate DIP fault-mode switch positions from the photographed reference of the original module.
- Power-on Test: Energize 24 V field supply and rack backplane; send drive commands to all 8 channels via Control Builder M, inject open-load and short-circuit test conditions to verify accurate diagnostic flagging and OSP fail-safe state activation during simulated bus loss.
FAQ
Q: I maintain an aging chemical plant DCS rack with failing heavy-duty actuator output hardware mounted on termination bases. Can this unit serve as a direct drop-in replacement without reterminating field solenoid wiring?A: Yes. The module shares identical rear mating contact layout, mechanical keying, and channel group isolation mapping as original factory hardware. All field wiring remains terminated to the existing base; only DIP fault-mode switch replication is required with no cable rework.Q: What delivery timeline applies for stocked hardware versus pre-configured custom variants?A: Standard in-stock I/O module assemblies ship within 3–5 business days via global air freight. Custom pre-set DIP fault-mode variants carry a 12–16 week OEM factory lead time and are not stocked as surplus inventory.Q: Does the 12-month warranty cover driver chip damage from sustained overcurrent actuator loads or ungrounded ESD handling?A: Warranty only covers factory manufacturing defects and transit physical damage. Sustained channel overloads, cross-group common rail bridging, and ungrounded static handling fall outside covered failure modes. Paid remote cabinet wiring layout support is available post-install.Q: Can inductive solenoid valve loads and resistive lamp loads operate simultaneously on separate channels of one unit without cross-talk interference?A: Yes. Independent galvanic isolation between the two 4-channel groups and integrated flyback suppression eliminate noise bleed between coil and lighting loads; no external signal isolators are required for mixed actuator signal layouts.Q: Is this digital output module rated for Class 1 Div 2 hazardous cabinet installation inside refinery MCC rooms?A: No. The standard open plastic module housing lacks intrinsic safety ratings for classified explosive atmosphere locations. ABB manufactures separate IS-certified I/O hardware for hazardous area cabinet deployments.Q: Can multiple copies of the device populate a single PROFIBUS segment managed by one FI830F fieldbus master module?A: Yes, each module paired with a base registers as a single PROFIBUS slave address on the trunk line. The bus architecture supports the full 126-slave maximum segment capacity when all node addresses are uniquely configured via Control Builder M.Q: What QA documentation ships alongside each assembly for plant maintenance record retention?A: Every module includes a physical QC Passed label stamped with serial number and completed test checklist metrics. Digital copies of 24-hour full-channel cyclic switching logs, 500 V insulation megger reports, and open-load / short-circuit diagnostic validation data can be emailed prior to shipment upon buyer request.
