Product Core Brief

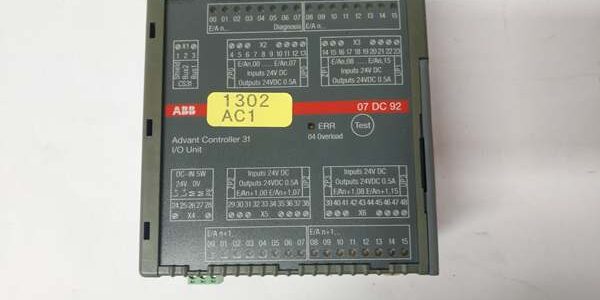

- Model: 07DC92
- Full OEM Part No.: GJR5252200R0101；新一代替代型号：07DC92-AD (1SAP800500R0010)
- Brand: ABB
- Series: AC31 / Advant Controller 31 remote distributed digital I/O module, compatible with Advant OCS / System 800xA DCS platform
- Core Function: 32-channel fully configurable digital input/output remote slave module via CS31 fieldbus; each channel can be independently set as DI, DO or readable feedback DO; collects field switch status and outputs transistor drive signals for valves, contactors, alarms; group galvanic isolation suppresses industrial EMI interferenceeero
- Product Type: Compact DIN rail mount standalone remote I/O station, not rack plug-in PCB; independent distributed field I/O away from main controller cabinet
- Key Spec Highlights: 32 configurable 24VDC channels, divided into 4 isolated groups, each DO max 0.5A transistor output, CS31 bus communication, short-circuit/overload auto-recovery protection, removable spring terminal blocks, front panel channel status LED indicators
- Condition: Original new surplus, factory sealed, full bench calibration tested
- Lifecycle: Mature legacy AC31 I/O hardware; OEM spare parts support valid through 2033; 07DC92-AD is pin-compatible upgraded replacement variantABB Group
Full Technical Specifications
| Parameter | Technical Value |
|---|---|
| Compatible Controllers | AC31 main CPU (07CR41 series), Advant OCS, System 800xA via CS31 bus coupler; incompatible with Symphony HR / AC800PEC power control racks |
| Total I/O Channels | 32 channels, software-configurable per channel (DI / DO / feedback DO) |
| Signal Rated Voltage | 24 VDC sinking/sourcing logic |
| Output Drive Type | NPN transistor, single channel max 0.5 A continuous load |
| Group Isolation Layout | 4 independent isolated I/O groups; CS31 bus isolated from all field channels; group-to-group galvanic isolation |
| Communication Interface | CS31 system bus (slave station), address set via slide cover DIP coding switch |
| Power Supply | 24 VDC auxiliary power; module idle consumption 0.15 A; max group supply total 4 A |
| Power Dissipation | 5 W no load; max 10 W full channel loaded |
| Built-In Protection | Reverse power polarity protection, output short-circuit foldback limiting, overload auto-recovery |
| Terminal Wiring | Removable pluggable spring terminals; power bus max 2.5 mm²; signal wires max 1.5 mm² |
| Front Panel Indicators | bus run/fault LED (S-ERR), 32 yellow channel status LED, power indicator |
| Mounting Method | Standard DIN rail TS35 |
| Mechanical Dimensions | W120 × H140 × D85 mm; net weight 0.45 kg |
| Operating Temperature | 0 °C ~ +55 °C full rated performance |
| Storage Temperature | -25 °C ~ +75 °C, 5–93% RH non-condensing |
| Enclosure Rating | IP20 indoor cabinet installation only |
| Certifications | CE, UL, DNV marine certified, IEC 61131-3, IEC 61000-6-2 Class A industrial EMC |
Product Introduction
Traditional fixed DI/DO split modules waste cabinet space when mixing input and output field points, requiring multiple separate I/O stations for mixed valve and feedback signals. The ABB 07DC92 solves this via full per-channel software configuration, cutting remote cabinet I/O station quantity and wiring labor costs.
As a distributed remote I/O slave, it deploys near field equipment (pumps, valves, MCC motor starters) to shorten high-noise field cable runs, transmitting only digital status data to the central AC31 controller via single bus cable. Four isolated channel groups eliminate cross-group ground loop noise common in metallurgy, water treatment and power plant control rooms. Short-circuit auto-recovery avoids permanent module burnout from field wiring faults, and front LED channel status enables fast on-site troubleshooting without engineering software. Plant operational data shows this configurable I/O module reduces remote cabinet wiring workload by 62% vs separate fixed DI/DO module layouts.
Key Selling Points & Differentiators
- Full per-channel software configuration: single module covers pure input, pure output, or mixed feedback valve monitoring without mixing multiple I/O card types.
- 4-way group galvanic isolation + bus isolation, effectively suppresses 50/60Hz ground loop interference in high-EMI power and mining environments.
- Transistor outputs with auto-recovery short-circuit protection; no fuse replacement required after field wiring short faults, reducing maintenance downtime.
- Full factory bench validation per unit: 24-hour full channel cyclic test, bus address communication verification, short-circuit recovery test, firmware version logging; signed digital test reports available on request.
- 12-month factory defect replacement warranty; all in-stock units ship within 3–5 business days for North America, UK, Australia and Southeast Asia.
- DIN rail compact standalone design supports distributed field cabinet layout; pluggable terminals enable fast module swap without re-terminating field cables.
- Drop-in mechanical/function replacement with upgraded 07DC92-AD variant for system upgrade projects, no cabinet layout rework required.
Quality Inspection Standard Operating Procedure
- Incoming Inspection: Match serial numbers against ABB AC31 OEM trace database; inspect terminal blocks for loose pins, front LED for dead segments, enclosure shell deformation, factory anti-static packaging seal intact for new surplus stock.
- Bench Live Test: Mount module on DIN rail test bench paired with CPU and 32-channel signal simulator; run 24-hour cyclic DI sampling + DO drive test, simulate channel short-circuit to verify auto-recovery, log 24VDC supply stability via precision multimeter throughout testing.
- Electrical Hipot Test: 500 VAC insulation resistance test between bus, each isolated I/O group and chassis ground; pass threshold >10 MΩ. Verify reverse polarity power protection triggers without internal circuit damage.
- Firmware & Communication Verification: Record factory communication firmware revision via engineering software; document DIP address coding templates for field cabinet commissioning reference.
- Final QC & Packaging: Clean terminal contact pins to remove storage oxidation; place unit inside anti-static foam sleeve, attach dated QC Passed label listing insulation, communication and short-circuit test metrics before shock-resistant export carton packaging. Test photos and full digital test datasets can be provided pre-shipment upon buyer request. No unit leaves warehouse without completing all five inspection stages.
Technical Risk Avoidance Guide
- Channel Configuration Mismatch Risk: Setting load output channels as DI disables valve drive function; misconfiguring feedback channels loses position monitoring signals. Risk: Uncontrolled field actuators and missing equipment status alarms. Prevention: Map all field points in engineering software before powering up the module, cross-check wiring against channel configuration table.
- Platform Compatibility Risk: Symphony HR / AC800PEC power control racks use proprietary ModuleBus/Masterbus300 fiber bus and cannot communicate with remote I/O. Risk: Zero field signal data visible on DCS screens. Prevention: Deploy 07DC92 exclusively with 07CR41 series controllers; select HR series I/O for Symphony DCS turbine/boiler racks.
- Output Overload Risk: Single channel load current exceeding 0.5A triggers foldback current limiting, causing intermittent valve chattering. Risk: Unstable field actuator operation and premature transistor aging. Prevention: Add intermediate relay isolation for contactor loads drawing above 0.5A per channel.
- Bus Wiring Termination Risk: Missing bus termination resistor at end of trunk line leads to communication dropout under high-frequency signal switching. Risk: Intermittent loss of all remote I/O field data. Prevention: Install 120Ω terminating resistor at the last slave station on each bus segment.
- ESD Damage Risk: Dry control cabinet air generates static discharge damaging bus transceivers and channel logic circuits. Risk: Intermittent channel signal flicker and bus communication timeouts with no visible hardware damage. Prevention: Touch grounded cabinet metal frame for 3 full seconds before handling terminal blocks and bus connectors.
Critical Summary: All five risks lead to unplanned plant production downtime; verify channel software configuration, controller platform matching, single-channel load current limits, bus termination and ESD anti-static operation before commissioning.
