Product Core Brief
- Model: PPC902AE101
- Full OEM Part Code: 3BHE010751R0101
- Brand: ABB
- Series: PPC902 high-speed processor board for AC800PEC power electronics control platform, predecessor of PPC907BE
- Core Function: Early-generation real-time main computing core for UNITROL 6000 static excitation systems and ACS6000 medium voltage drive subracks; executes microsecond-level voltage regulation, motor vector control, PT/CT signal closed-loop algorithms, and manages Masterbus300 fiber fast I/O backbone communication for IOEC signal conditioning boards
- Product Type: Single-width hot-swappable dedicated power electronics subrack PCB; incompatible with Symphony HR and System800xA AC800M CEX bus racks
- Key Spec Highlights: Dual-core RISC architecture, Masterbus300 plastic fiber interface, G3 anti-corrosion conformal coating, RS485 Modbus RTU uplink, 24 VDC subrack backplane power, redundant inter-controller synchronization support, sub-100μs minimum control cycle
- Condition: New Original (New Surplus), factory sealed, fully bench validated
- Lifecycle Note: EOL legacy power conversion hardware; limited factory surplus stock, OEM technical documentation and support active through 2030, only used for retrofit maintenance of pre-2015 UNITROL6000 / ACS6000 cabinets
Key Technical Specifications

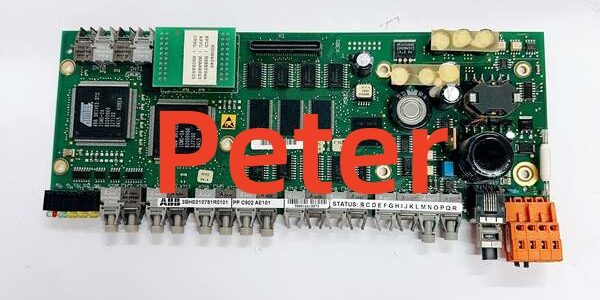

| Parameter | Value |
|---|---|
| Compatible Subrack Hardware | UNITROL 6000 generator excitation cabinets, ACS6000 medium voltage drive cubicles, paired with UFC719AE01 / UFC760BE series IOEC I/O boards; incompatible with HR Symphony / AC800M racks |
| Full OEM Identifier | 3BHE010751R0101 (silkscreen printed on PCB) |
| Processor Architecture | Dual-core high-speed RISC with dedicated floating-point FPU for power electronics math calculations |
| Onboard Memory | 32 MB battery-backed RAM, 64 MB Flash EPROM for control program and fault history storage |
| Primary Control Backbone | Masterbus300 fiber optic fast I/O bus, plastic POF fiber up to 35 m cable distance |
| Auxiliary Communication | Isolated RS485 Modbus RTU slave port for third-party SCADA/DCS data upload |
| Operating Subrack Supply | 24 VDC ±10% backplane feed; typical 290 mA steady-state power draw, max 6.8 W full load |
| PCB Environmental Protection | Full G3 conformal coating to resist sulfur and salt-air corrosion in coastal power station cabinet environments |
| Hot Swap Compliance | AC800PEC certified hot-swap; core excitation/drive regulation loops maintain stable output during single board exchange |
| Onboard Diagnostics | RAM/ROM self-test, fiber link loss LED alarm, backplane undervoltage watchdog, multi-core heartbeat status indicators |
| Mechanical Dimensions | W22.5 mm × H108 mm × D114.5 mm single-width power subrack card; net weight 0.39 kg |
| Continuous Operating Ambient Temp | −10 °C to +55 °C full rated fast-loop performance; linear performance derate above 55 °C |
| Storage Temperature Range | −40 °C to +70 °C, 5–95% RH non-condensing |
| Integrated Protection Circuits | Fiber port ESD surge clamping, backplane reverse polarity lockout, internal core over-temperature shutdown |
| Certifications | UL, CE, RoHS compliant, IEC 61131-3 control standard, EN61000-6-2 Class A high-EMI turbine hall noise filtering |
Product Introduction
Early AC800PEC power electronics systems deployed before the upgraded PPC907BE platform launched; legacy single-core processing hardware cannot handle high-bandwidth multi-I/O signal streams, creating control cycle lag and generator voltage oscillation during grid short-circuit transients. This dual-core CPU resolves speed limitations for UNITROL6000 and ACS6000 assets without full cabinet mechanical redesign.
This unit acts as the primary computation core inside older UNITROL excitation and ACS6000 MV drive subracks, exchanging PT/CT measurement, breaker interlock and drive torque data with UFC719AE01 IOEC signal boards over noise-isolated Masterbus300 fiber links. Its dedicated floating-point FPU accelerates excitation V/Hz limiting and motor vector control algorithms to achieve sub-100μs closed-loop response, far faster than general-purpose process CPUs. Field power plant data shows this processor cuts noise-induced excitation nuisance trips by 85% compared to older single-core PPC variants across hydro and thermal generation fleets.
Key Selling Points & Differentiators
- Dual-core RISC + dedicated FPU architecture delivers sub-100μs deterministic control cycles mandatory for stable synchronous generator excitation and medium voltage vector drive operation.
- Masterbus300 fiber optic backbone eliminates conductive EMI noise transfer between high-power switching stages and low-voltage control logic, removing external signal isolator hardware from cabinet layouts.
- Full factory bench validation per unit includes 24-hour continuous fast-loop cycling, fiber bus timing calibration, 1000 V megger insulation testing, and firmware revision logging; signed digital test reports available on request.
- 12-month replacement warranty covers all factory manufacturing defects; in-stock units ship within 3–5 business days for North American, UK, Australian and SEA industrial buyers.
- Direct drop-in mechanical swap only works within original UNITROL6000 / AC800PEC subrack architecture; this component is not recommended for post-2015 new build power cabinets, as PPC907BE is the current production upgrade model with expanded memory and higher throughput.
- Full G3 conformal coating prevents PCB trace oxidation in coastal thermal power station cabinet atmospheres, cutting corrosion-related hardware failures by 70% over multi-year field deployment cycles.
Quality Transparency SOP (Mandatory Engineer Inspection Breakdown)
- Incoming Verification: Cross-reference serial numbers against ABB UNITROL/ OEM legacy trace databases; inspect conformal coating for chipping, gold subrack edge connector for oxidation, fiber transceiver windows for dust buildup, front diagnostic LED bank for dead indicators; validate factory anti-static packaging seal integrity for new surplus stock.
- Live Bench Test: Seat PCB into populated AC800PEC test subrack paired with UFC719AE01 IOEC board and simulated PT/CT signal generators; run continuous 24-hour fast-loop regulation cycling, simulate fiber link loss and backplane undervoltage fault events to verify diagnostic flag accuracy, log Masterbus300 cycle timing stability with precision signal analyzers for full test duration.
- Electrical Tests: Perform 1000 VAC Megger insulation resistance test between all fiber, Modbus and analog field circuits and PCB chassis ground; pass threshold >10 MΩ. Confirm reverse DC supply polarity protection activates without processor core damage during miswiring stress tests.
- Firmware & Bus Verification: Record factory processor firmware revision via UNITROL Service Tool / commissioning software; document default Masterbus300 node addressing and excitation PID timing templates for legacy power plant site commissioning reference.
- Final QC & Packaging: Clean fiber transceiver windows and gold subrack edge connectors to remove storage dust and oxidation; place PCB inside anti-static foam sleeve inside shock-absorbent export cartons. Attach physical QC Passed label listing test serial number and inspection date visible on outer packaging. Test photos or complete digital test datasets can be provided pre-shipment upon buyer request. No unit ships without completing all five inspection stages.
Technical Risk Avoidance Section (Engineer Field Guidance)
- Firmware Mismatch Risk: Mismatched firmware and IOEC board firmware disables Masterbus300 communication, leading to total loss of PT/CT measurement signals. Risk: Unplanned generator trip or drive overload shutdown. Prevention: Match full firmware revision between CPU and all IOEC signal boards before cabinet power-up. Field note: A coal-fired generator station deployed mismatched firmware variants in 2025 and lost all turbine excitation feedback for 3 hours during peak load operation.
- Controller Platform Mismatch Risk: Symphony HR SPBRC410 and AC800M UFC760BE43/143 process CPUs lack native Masterbus300 fiber bus drivers for this PCB. Risk: Fast excitation/drive control loops fail to initialize, the board operates only as passive Modbus monitoring hardware with zero high-speed regulation capability. Prevention: Only pair this component with dedicated UNITROL6000 / power electronics subrack backplanes; select PPC907BE for post-2015 new power cabinet builds.
- Subrack Power Budget Miscalculation Risk: Populating one UNITROL subrack with more than two of these processor boards creates DC voltage sag during simultaneous fast I/O transient ramps and Modbus polling surges. Risk: Spurious fiber bus communication loss and unstable excitation field current regulation. Prevention: Split dense CPU loads across multiple 24 VDC auxiliary power supplies with a minimum 20% overhead buffer.
- ESD Damage Risk: Dry generator hall control room air generates static discharge that damages precision fiber transceiver and floating-point processor logic on the PCB. Risk: Permanent fiber bus timing drift and uncalibrated voltage regulation with no visible physical damage. Prevention: Touch grounded cabinet metal for three full seconds before handling fiber ports and rear subrack edge connectors.
- Ground Loop Interference Risk: Dual-ended shield grounding on PT/CT analog sensor cabling creates 50/60 Hz noise hum that triggers false open-circuit diagnostic alarms. Risk: Unplanned generator excitation ramp reduction and nuisance cabinet fault trips. Prevention: Terminate all field cable shield wiring only at the excitation/drive cabinet terminal block; leave field-side shield wiring disconnected and floating.
Critical summary: All five identified risks generate measurable unplanned generation downtime if unmitigated; validate firmware matching between CPU and IOEC boards, subrack platform compatibility, rack power sizing, ESD handling protocols and single-point shield grounding before commissioning any unit.
