Product Core Brief

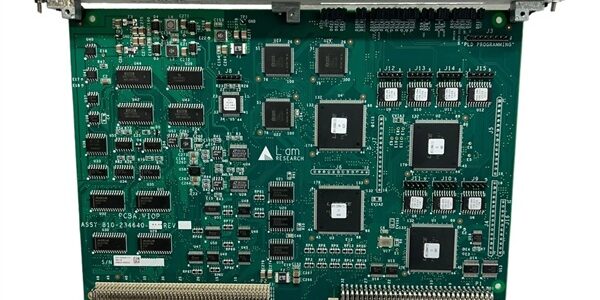

• Model: 810-234640-312 (VIOP Phase III / Voltage Input Output Processor, Revision 312)
• Brand: LAM Research
• Series: 6U VMEbus Motion & Analog I/O Master PCBA for TCP9400 / Kiyo 300mm plasma etch cluster platforms
• Core Function: Centralized processing of multi-axis robot motion encoder feedback, chamber analog sensor telemetry, and all mechanical safety interlocks; translates VME setpoint commands into synchronized motion trajectories and analog trim outputs, communicates real-time chamber status to the tool master SBC via proprietary parallel VME bus.
• Product Type: Full-size 6U dual rear edge connector VMEbus printed circuit board assembly with metal ejector latches
• Key Specs: Multi-axis differential encoder sampling | 0–10V / 4–20mA isolated analog I/O | <1ms motion overtravel interlock fault response latency
• Condition: New Original (New Surplus); Discontinued legacy OEM spare, limited factory stock reserved for active TCP9400/Kiyo installed fleets.

Key Technical Specifications

• Form factor: Standard 6U VME64 dual rear edge connector PCB with integrated EMI shielding and mechanical ejector latches
• Motion control capability: Multi-axis trapezoidal acceleration/deceleration trajectory generation for wafer transfer robot stepper axes
• Encoder interface: Differential 5V A/B/Z line receiver inputs, supports up to 2000 CPR high-resolution position encoders
• Analog signal range: Isolated 0–10VDC voltage input/output, 4–20mA loop-powered transmitter input channels
• Discrete safety I/O: Isolated sink/source digital channels for chamber gate, vacuum, and end-of-travel interlock contacts
• VME bus communication: Lam proprietary parallel VME telemetry bus, fixed 250Hz motion/analog data refresh rate
• Operating supply: Regulated 5V / ±12VDC VME backplane power, maximum 36W continuous power draw under full channel load
• Fault detection latency: <1ms trip response for encoder loss, axis overtravel, analog signal out-of-range, and vacuum loss conditions
• Signal isolation rating: 1500VAC reinforced isolation separating field wiring and VME logic circuits to block 13.56MHz plasma RF cross-talk
• EMI mitigation: Multi-layer segmented PCB ground planes, onboard ferrite filtering, and full perimeter metal shielding frame
• Operating ambient range: 10°C to +50°C tool control cabinet; storage -40°C to +85°C, non-condensing humidity limits
• Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, over-temperature auto motion cutoff command
• MTBF rating: ≥87,000 hours under continuous 24/7 high-volume fab production duty cycle
• Compliance: CE, UL, SEMI S2 safety standard certified for front-end 300mm semiconductor wafer processing equipment

Product Introduction

LAM 810-234640-312 VIOP Phase III board acts as the unified motion and analog signal backbone inside Lam TCP9400 and Kiyo 12-inch etch cluster tools. It consolidates robot axis encoder position data, chamber thermal/gas analog sensor readings, and all mechanical safety interlock signals into a single VME bus interface, executing closed-loop motion synchronization and analog process trimming during every wafer etch recipe cycle.

Its core differentiator is simultaneous multi-axis motion profiling and reinforced galvanic isolation. Unisolated generic substitute boards pick up high-amplitude chamber plasma RF interference that triggers false overtravel or vacuum interlock trips, aborting active wafer batches and reducing overall fab throughput. The unit supports controlled hot-swap service without full robot controller shutdown during scheduled preventive maintenance cycles.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Process Control Software (PCS): v6.0 through v8.3; PCS v8.5 and newer releases drop native VME register handshake compatibility with this Rev 312 VIOP III hardware.
• Recommended onboard firmware revision: Factory pre-flashed Rev 312 build; older internal prototype revisions contain encoder sampling jitter that creates inconsistent wafer placement offset across sequential production lots.
• Upgrade risk warning: Downgrading tool master VME SBC firmware below v7.3.5 breaks bidirectional motion setpoint and analog telemetry polling with the VIOP board. Match host controller and VIOP III board firmware release families before chamber PM work.
• Firmware storage location: Onboard non-volatile flash memory integrated to the main PCBA. Export all robot axis velocity/acceleration profiles, analog sensor scaling tables, and interlock trigger thresholds via the tool HMI before executing any firmware flash operation.
• OEM constraint: Lam Research restricts official firmware file distribution exclusively to certified fab service partners post-2023; validate local firmware archive files prior to field installation to avoid communication handshake failures.

Frequently Asked Questions

1. Can I remove the VIOP III board while the process chamber remains pressurized and robot axes energized?VME buffered bus circuits prevent full loss of motion and analog telemetry data, but fully de-energize all robot stepper motor power supplies, vent chamber vacuum, and engage cabinet safety lockouts before extraction. Live high-frequency plasma RF noise generates transient bus interference that corrupts motion axis tuning and analog sensor calibration offsets stored on the unit’s onboard flash memory. Always complete a full motion/process parameter backup via the tool HMI first.
2. Can I source a direct drop-in OEM replacement given this hardware is a legacy cluster tool VIOP spare?Lam Research maintains limited New Surplus factory stock of the part, but third-party aftermarket refurbished assemblies use uncertified generic differential encoder receivers and omit full 13.56MHz RF noise immunity thermal cycling testing. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require a full 48-hour multi-axis motion + analog signal load bench calibration before installation into production etch chambers.
3. Will swapping this VIOP III board erase saved axis motion profiles or analog sensor scaling limits?All motion trajectory tuning tables, encoder position offset calibrations, analog trim scaling, and mechanical safety trip thresholds reside on the board’s internal flash memory. Complete a full motion and analog parameter backup via the tool HMI before any swap to restore calibration data if VME handshake communication errors occur post-installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged differential signal ICs and analog conditioning semiconductors create unquantified risk of mid-run wafer misplacement or process signal drift that scraps production wafer batches.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated encoder and analog channel tolerances, zero operating hour thermal fatigue on signal semiconductors, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic replacement transceivers, and skip full plasma RF interference cycling testing; hidden motion drift and analog linearity defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront component price difference.
6. Does this VIOP Phase III board support all Lam legacy plasma etch chamber platforms?This Revision 312 6U dual VME connector variant only integrates exclusively with TCP9400 and Kiyo 300mm etch cluster main VME rack assemblies. No cross-compatibility exists with older 200mm etch fleets, as VME register mapping, motion channel allocation, and analog terminal pinouts differ entirely.
