Product Core Brief

• Model: 810-102361-222 (Revision R222)
• Brand: LAM Research
• Series: Chamber MUX Segment Submodule PCBA for Lam Plasma Etch Processing Tools
• Core Function: Multiplex analog and digital diagnostic signals from process chamber sensors, execute safety interlock monitoring, and route chamber telemetry to the tool’s main system controller during wafer etching cycles.

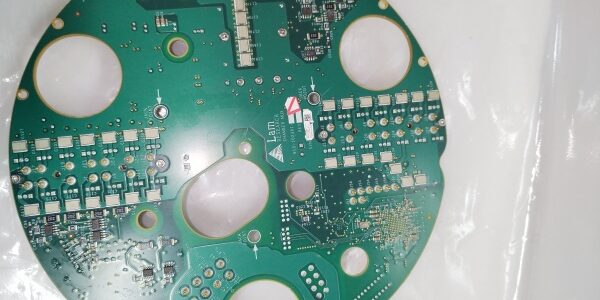

• Product Type: Circular metal-mounted printed circuit board assembly (segment MUX submodule)
• Key Specs: Multi-channel sensor signal multiplexing | 12VDC regulated operating supply | <5ms interlock fault response time
• Condition: New Original (New Surplus); Active OEM spare part for legacy Lam etch chamber platforms, factory stock available.

Key Technical Specifications

• Form factor: Circular PCBA with integrated aluminum mounting flange for direct chamber hardware integration
• Operating supply voltage: Regulated 12VDC input, max 100W continuous power draw
• Signal channels: Multi-channel isolated analog/digital multiplexer for temperature, pressure, and RF bias chamber sensors
• Interlock response latency: <5ms fast fault detection for chamber door, gas, and vacuum safety interlocks
• Isolation rating: 3000VAC channel-to-backplane reinforced isolation to block plasma RF noise interference
• Operating ambient range: 0°C to +70°C inside process chamber cabinet; storage -40°C to +85°C
• EMI shielding: Integrated metal flange chassis to suppress high-frequency plasma RF crosstalk
• Protection circuits: Per-channel ESD surge suppression, reverse polarity lockout, over-temperature auto-shutdown
• Communication interface: Proprietary Lam tool internal serial bus for telemetry data upload to main CPU
• MTBF rating: ≥100,000 hours under standard 24/7 fab production load
• Compliance: SEMI S2 safety standard certified for semiconductor processing equipment

Product Introduction

LAM 810-102361-222 is a dedicated chamber signal multiplexer PCBA built exclusively for Lam Research plasma etch processing chambers used in 200mm and 300mm wafer fabs. It aggregates low-level sensor readings and safety interlock contact states into a single serial data stream for the tool’s master control system.

Its core differentiator is circular mechanical packaging matched to Lam’s chamber segment mounting geometry, plus built-in RF noise shielding. Unshielded third-party replacement boards pick up plasma interference that creates false interlock trips and unstable process metrology, reducing wafer yield during critical etch steps. The unit supports hot-swap service without full chamber vent and purge downtime.

Firmware/Software Versions & Upgrade Notes

• Supported Lam Tool Controller Software: Release 7.2 through 9.1; tool software v10.x removes native serial bus handshake compatibility with the submodule.
• Recommended onboard firmware revision: R222 factory pre-flashed build; older R216 firmware contains signal sampling glitches that skew chamber pressure sensor readings.
• Upgrade risk warning: Downgrading tool main controller firmware below v7.0.8 breaks bidirectional telemetry communication with the hardware. Match controller and submodule firmware release families before chamber service.
• Firmware storage location: Onboard non-volatile flash memory integrated on the circular PCBA; export chamber sensor calibration offsets via tool HMI before any firmware flash operation.
• OEM constraint: Lam Research restricts official firmware download access to certified fab service partners post-2023; validate local firmware archive files prior to chamber installation.

Frequently Asked Questions

1. Can I hot-swap the submodule while the process chamber remains pressurized?Hot-swap bus circuits prevent full tool shutdown, but execute a partial chamber vent and isolate all RF power supplies before extraction. Live high-voltage plasma circuits during swap induce transient noise that corrupts sensor calibration offsets stored on the unit’s onboard flash memory. Always lock out chamber gas and RF power sources first.
2. Can I source a direct drop-in OEM replacement now that this hardware is a legacy chamber spare?Lam Research still manufactures limited OEM New Surplus inventory of the part, but third-party aftermarket refurbished assemblies use uncertified replacement ICs and lack full RF shielding. New Surplus unopened factory stock is the only plug-and-play option; refurbished units require 48-hour chamber thermal load bench testing before production installation.
3. Will swapping this submodule erase chamber sensor calibration offsets or interlock trigger limits?All sensor scaling, interlock threshold, and pressure/temperature calibration data resides on the onboard flash memory of the unit itself. Complete a full calibration backup via the tool HMI before any swap to restore offsets if communication handshake errors occur post-installation.
4. What warranty coverage comes with New Surplus OEM inventory versus refurbished units?Our New Surplus OEM stock carries a 12-month full functional warranty matching original Lam factory spare coverage. Refurbished aftermarket assemblies ship with only a 3–6 month limited warranty, as aged analog multiplexer ICs and degraded shielding gaskets create unquantified risk of mid-run false interlock trips that scrap production wafers.
5. Why is New Surplus OEM hardware priced higher than aftermarket refurbished equivalents?New Surplus inventory retains factory-calibrated multiplexer channel tolerances, zero operating hour wear, and full traceability to Lam’s component validation batches. Refurbished units reuse aged PCBs, generic unshielded replacement semiconductors, and skip full RF noise immunity testing; hidden signal interference defects lead to unplanned chamber downtime with far greater total wafer scrap cost than the upfront part price difference.
6. Does this hardware support all Lam etch chamber segment platforms?This circular flange variant only fits specific mid-size plasma etch chamber segment assemblies. Smaller and larger chamber platforms require alternate part number revisions (810-102361-R216) with different mounting hole layouts and channel count configurations; cross-installation creates mechanical misalignment and broken signal bus connections.
7. What maintenance interval applies to this multiplexer submodule in high-volume fabs?Perform full signal calibration validation every 6 months during scheduled chamber PM cycles. Replace the complete unit after 50,000 operating hours, as internal analog signal conditioning ICs develop drift under continuous plasma RF exposure that degrades etch process repeatability.
