Product Core Brief

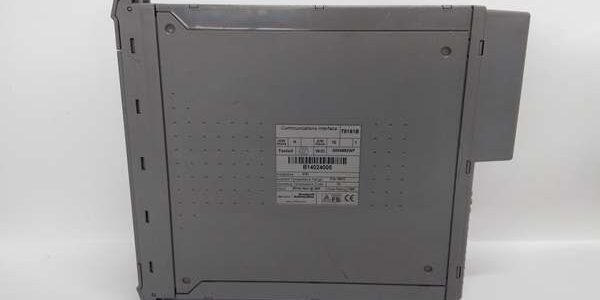

- Model: T8151B
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted TMR Safety Control Series ⚠️ EOL — limited new surplus stock remaining
- Core Function: Handle all external network protocol translation and data exchange to reduce processing load on the T8110B TMR safety CPU for SIS ESD and F&G systems
- Product Type: Backplane-mount TMR auxiliary communication interface module
- Key Specs: Dual 10/100 Mbps Ethernet | Supports T8153 4-serial port expansion adapter | Full hot-swap chassis compatible | Condition: New Original Surplus
Product Introduction
The ICS Triplex is a dedicated offload communication card for Trusted TMR safety racks, routing peer-to-peer chassis traffic, HMI SCADA data, and Modbus third-party device links without consuming CPU cycle bandwidth on the T8110B core processor. It maintains full 2oo3 voting integrity across all external network data streams.This upgraded B revision adds improved Modbus TCP throughput versus older T8151 base hardware and expands support for ring network topologies. OEM reliability testing records an MTBF of 119,000 operating hours at steady 40 °C cabinet ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Network Interfaces | Dual independent 10/100 Mbps IEEE 802.3 Ethernet ports |
| Serial Expansion Option | T8153 adapter adds four configurable RS232/RS485 serial ports |
| Supported Industrial Protocols | Modbus TCP, Modbus RTU, Trusted peer-to-peer chassis comms, TCP/IP stack |
| System Backplane Supply | Dual redundant 20 VDC to 32 VDC nominal 24 VDC rack power |
| Typical Continuous Power Draw | 10 W maximum under full Ethernet + serial port load |
| Port-to-Chassis Isolation Rating | 500 V DC dielectric withstand barrier per network lane |
| Hot-Swap Behavior | Live rack replacement without halting running SIS safety logic |
| Front Panel Diagnostics | Link/activity LEDs per Ethernet port, module health, fault alarm indicator |
| Operating Ambient Temp | 0 °C to +60 °C; storage -25 °C to +70 °C |
| Safety Certification | IEC 61508 SIL 3, TÜV AK6, UL/cUL, CE, IP20 cabinet-only mounting |
| Physical Dimensions | 303 mm H × 31 mm W × 264 mm D; net weight 1.14 kg |
| Continuous Self-Diagnostic Coverage | Monitors Ethernet link loss, serial port short circuits, backplane bus lane faults |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross serial numbers against Rockwell OEM batch manifests to filter counterfeit aftermarket units. Visually inspect dual Ethernet RJ45 jacks, rear backplane gold edge pins, and front panel LED lenses for bending or surface scratches.
- Live Functional Test: Insert module into a Trusted chassis test rack paired with a Fluke 115 regulated 24 VDC supply and a T8110B CPU. Run a 24-hour soak cycle with simulated HMI Modbus TCP traffic and T8153 serial Modbus RTU loads, log network throughput and link fault detection hourly.
- Electrical Parameter Test: Use a 500 V Megger to measure insulation resistance between each Ethernet lane and chassis ground; pass threshold is >10 MΩ. Verify automatic secondary Ethernet port failover on primary link loss.
- Firmware Verification: Read and record communications firmware build number via TRISTATION 1131 configuration software; photograph front-panel network termination DIP switch positions for site wiring reference records.
- Final QC & Packaging: Place the full communications module inside a static-dissipative poly bag. Affix a dated QC Pass sticker listing measured isolation resistance and total soak test runtime before palletized warehouse storage.
Replacement Pitfall Guide
❗ Firmware Mismatch Risk: The firmware v6.3+ cannot hot-swap with chassis running v5.9 or older without full SIS application recompile and network parameter revalidation. Unmatched firmware triggers persistent backplane vote mismatch critical safety faults.❗ Serial Adapter Mismatch Risk: Only the T8153 serial expansion adapter mates with this module. Third-party serial breakout hardware creates unreadable serial protocol framing errors and total Modbus RTU communication loss.❗ Ethernet Topology Jumper Misconfiguration Risk: Factory default DIP switches disable ring network redundancy. Leaving jumpers unmodified in ring SCADA setups creates single-point communication failure during primary cable outages.❗ Power Supply Headroom Miscalculation Risk: A fully loaded ICS Triplex draws 10 W steady-state at 24 VDC. Size cabinet power supplies with 20% overhead; underrated racks drop voltage below 20 VDC and lock all external network links offline.❗ ESD Damage Risk: Exposed rear backplane edge pins remain unprotected during hot-swap removal. Use a grounded anti-static mat in low-humidity cabinet spaces; static discharge scratches plating and generates intermittent Ethernet packet dropout faults.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- T8110B (Trusted TMR Main Safety CPU) → : Native Compatible — Direct backplane bus communication, no signal adapter hardware required
- T8153 (4-Port Serial Expansion Adapter) → : Direct Replacement — Mechanical lock and serial bus pinout matching, zero wiring rework
- T9110 (AADvance Series TMR CPU) → : Incompatible — AADvance proprietary backplane bus cannot interpret Trusted communications protocol
Benchmarks
- Full dual-Ethernet Modbus TCP throughput: 8,500 register reads per second (simulated SCADA HMI load, 24 VDC nominal supply)
- Ethernet port automatic failover delay: <2 ms after primary link cable disconnection
- Continuous power consumption: 9.2 W average under fully loaded dual Ethernet + four serial port traffic
