Product Quick Summary

• Model: PP836
• Part Number: 3BSE042237R1
• Brand: ABB
• Core Function: Operator panel (HMI) for the Panel 800 series
• Display: 6.5″ TFT color, 640 × 480 pixels
• Dimensions: Approx. 239 × 202 × 164 mm
• Weight: Approx. 1.88 kg
• Condition: New surplus / legacy discontinued — ready to ship
• Origin: Sweden

The PP836 is ABB’s 6.5-inch operator panel in the Panel 800 family, providing operators with a graphical interface for process monitoring, control, and commissioning in industrial automation environments.

Core Technical Specifications

Engineer’s Perspective

The ABB PP836 3BSE042237R1 is the 6.5-inch operator panel in ABB’s Panel 800 series. If you’re running a plant with ABB automation equipment — whether it’s a standalone drive, a PLC-based machine, or a distributed control system — and the operator interface has failed or needs replacement, this panel is the direct-fit component that keeps your HMI functional without re-engineering the application.

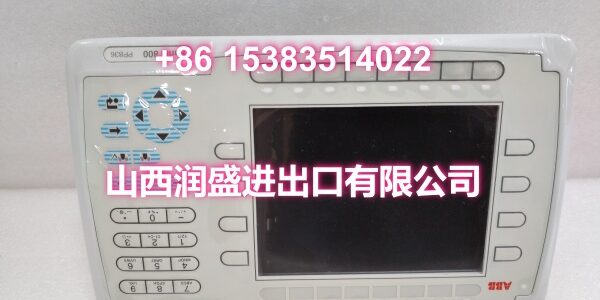

The PP836 uses a 6.5-inch TFT color display with a resolution of 640 × 480 pixels. TFT technology provides sharp, clear images with good color reproduction and wide viewing angles — a significant step up from the older CSTN displays used in lower-end Panel 800 models like the PP825A. The 640 × 480 resolution gives you enough screen real estate to display process values, trend curves, alarm lists, and navigation menus simultaneously without excessive scrolling.

The panel is part of the broader Panel 800 family, which includes larger models like the PP845 and PP846, as well as smaller models like the PP815 and PP825A. The PP836 sits in the mid-range of that lineup — larger than the compact 5.7″ panels but smaller than the 10.4″ models — making it suitable for applications where you need more screen space than a basic operator panel provides, but don’t have room or budget for a full-size station.

Here’s the reality: the Panel 800 series is legacy. ABB has moved on to newer HMI platforms, which means sourcing a genuine, tested PP836 is the only way to keep your existing operator station running without migrating to a new HMI platform and redeveloping all your faceplates and graphics. The ABB PP836 3BSE042237R1 is not a part you want to source from an unverified supplier — pulled panels with dead backlights, worn-out touch layers, or counterfeit units are a real risk in the aftermarket.

Installation, Compatibility & Risk Avoidance

Platform compatibility: The PP836 is designed for the Panel 800 series and communicates with ABB automation devices (controllers, drives, PLCs) via Ethernet or serial interfaces. Confirm your existing HMI model and communication configuration before ordering — the PP836 is not directly interchangeable with the PP845, PP846, or other Panel 800 variants without verifying the application project file compatibility.

Part number revision: The part number 3BSE042237R1 indicates revision 1 of the PP836. A later revision, the PP836A (3BSE042237R2), exists as a step-up replacement. In most cases, the PP836A is backward-compatible with applications built for the original PP836, but verify with your engineering team before deploying a different revision.

Touch screen calibration: Touch panels require periodic calibration. If the replacement panel exhibits touch inaccuracy (e.g., pressing one button activates a neighboring button), run the built-in calibration routine from the panel’s system menu. This is a common post-installation step that takes less than a minute.

Backlight life: TFT backlights have a finite service life, typically rated for tens of thousands of hours. If you’re sourcing a used or surplus unit, request confirmation that the backlight has been tested and is within specification. A dim or flickering backlight is a sign of an aging unit that will need replacement again soon.

Application download: The PP836 ships without your application program. You’ll need to download the HMI project from your engineering station using ABB’s Panel Builder 800. Ensure your project file matches the target hardware (PP836, not PP845 or PP846) and that the communication parameters (Ethernet IP address, serial port settings) match your controller’s configuration.

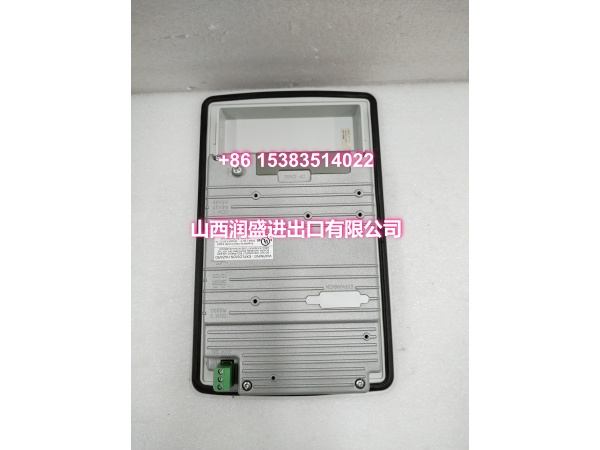

Panel cutout: The PP836 requires a specific panel cutout dimension for flush mounting. Before installing the replacement, verify the cutout in your control cabinet matches the PP836’s mounting dimensions. The panel is secured from the rear with mounting clips — no tools are needed once the cutout is correct.

Field Note: Before pulling the failed panel, photograph the communication cable connections (which port is used, pinout if serial), the DIP switch or rotary switch settings on the rear, and the front-panel LED states. Also note the IP address or serial node address configured in the application. Five minutes of documentation saves hours of troubleshooting when the replacement doesn’t come up immediately.

Natural FAQ

Can I replace a PP836 with a PP845 or PP846? Not directly. The PP845 and PP846 are larger panels (10.4″) with different screen sizes, resolutions, and mounting dimensions. Your application project file is built for a specific panel model — a PP836 project will not run on a PP845 without modification. If you want to upgrade to a larger panel, you’ll need to redevelop the HMI application in Panel Builder 800 and retest all graphics, alarms, and navigation.

What’s the difference between the PP836 and the PP836A? The PP836A (3BSE042237R2) is the step-up revision of the PP836 (3BSE042237R1). Both use a 6.5″ TFT display with 640 × 480 resolution. The PP836A typically includes updated hardware or firmware improvements. In most cases, the PP836A is backward-compatible with applications built for the original PP836, but verify with your engineering team before deploying.

The panel powers up but the touch response is inaccurate. What should I do? Run the built-in touch screen calibration routine from the panel’s system menu. Touch panels drift over time and after replacement, and calibration typically resolves accuracy issues in under a minute. If calibration doesn’t help, the touch layer itself may be damaged — in that case, the panel needs replacement.

Is this module tested before shipping? Yes. Every unit goes through incoming visual inspection, anti-counterfeit verification, live functional testing (power-on, display, touch response, communication), and static-proof packaging before it leaves our facility. We don’t ship untested legacy parts.

Do you offer warranty or return support? All modules are covered under our in-house warranty policy. If the ABB PP836 3BSE042237R1 fails to operate correctly upon installation under normal conditions, contact our support team for replacement or refund options.
