Product Core Brief

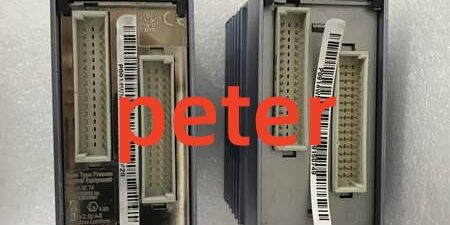

- Model: FBM241C (OEM part number P0914WM)
- Brand: FOXBORO (Schneider Electric EcoStruxure Foxboro)
- Series: I/A Series Compact 200 discrete mixed I/O FBM family
- Core Function: Capture external contact discrete input signals and drive external-powered discrete output loads for plant interlock and alarm logic
- Product Type: Rack-mount hot-swappable mixed discrete input/output fieldbus module, mates with dedicated screw terminal TA assemblies
- Key Specs: 8 isolated DI + 8 isolated DO | 15–60 VDC input range | 2 A max per output channel (external power only) | ⚠️ EOL — limited stock remaining, Condition: New Surplus Original
Product Introduction
FOXBORO is a mixed discrete I/O fieldbus module built exclusively for I/A Series and Foxboro Evo DCS to process contact inputs and switch external solenoids, motor interlocks, and alarm relays. Every input and output channel carries independent galvanic isolation to block ground loop noise near high-current MCC cabinets.This unit differs from internal-sourcing FBM241b by requiring all field power to be supplied externally, with OEM-measured MTBF of 310,000 hours at 40 °C cabinet ambient. Per-channel short-circuit foldback protection limits fault propagation to a single field circuit without backplane bus disruption.
Key Technical Specifications
| Parameter | Value |
|---|---|
| I/O Channel Layout | 8 galvanically isolated discrete inputs + 8 galvanically isolated discrete outputs |
| Discrete Input Signal Range | 15 V DC to 60 V DC contact closure sense (no internal loop power feed) |
| Discrete Output Rating | Max 2 A resistive per channel, external AC/DC field power source only |
| Supported External Load Voltages | 15–60 V DC, 120 V AC, 125 V DC, 240 V AC resistive loads |
| Channel Isolation Withstand | 1000 VAC channel-to-backplane 1-minute dielectric rating |
| Onboard Circuit Protection | Per-channel auto-resetting foldback current limiting for output shorts |
| Backplane Communication | Redundant dual A/B 2 Mbps proprietary I/A Series HDLC Fieldbus |
| Module Operating Draw | Max 7 W total power consumption from 24 V DC ±5 / -10 % backplane supply |
| Diagnostic Hardware | Front-panel LED status for each DI/DO channel, global module watchdog fault indicator |
| Operating Temperature Range | -20 °C to +70 °C operational; -40 °C to +85 °C storage |
| Environmental Coating | ISA S71.04 G3 full PCB conformal coating for corrosive refinery and chemical atmospheres |
| Hazardous Certifications | FM Class I Div.2, ATEX Ex ec IIC Gc (cabinet-only mounting enclosure) |
| Compatible Termination Hardware | Screw-clamp discrete TA assemblies with optional field circuit fusing |
| Physical Weight & Form | 284 g standard Compact 200 FBM rack slot footprint |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers printed on the P0914WM housing to OEM production batch logs; inspect aluminum heat sink fins, gold backplane edge connectors, and PCB coating for scratches or oxidation. Reject units with cracked channel isolation barriers.
- Live Functional Test: Seat the unit on a certified Compact 200 backplane, connect 48 V DC contact simulators to DI terminals and 48 V 2 A resistive load banks to DO terminals, run a 26-hour continuous cyclic switching load. Log channel heat rise and confirm redundant 2 Mbps HDLC Fieldbus handshake to an FCP280 controller.
- Electrical Parameter Test: Use a 500 V Megger to test channel-to-backplane insulation resistance (minimum pass threshold 10 MΩ); verify chassis ground continuity to DIN rail mounting lugs.
- Firmware Verification: Extract embedded discrete logic firmware revision via I/A engineering workstation diagnostic menus; photograph factory default bus baud rate DIP switch positions for post-delivery reference.
- Final QC & Packaging: Purge PCB and heat sink internal surfaces with dry nitrogen to remove industrial particulate buildup; seal the module in anti-static vacuum bag, apply QC Passed sticker stamped with full test completion date.
Replacement Pitfall Guide
❗ Firmware Mismatch: Older FCP270 controller firmware revisions lack multi-voltage discrete load scaling blocks for the module. Confirm controller firmware rev before ordering spare hardware — site DCS upgrade schedules often lag spare component stock.❗ DIP Switch / Jumper Misconfiguration: Factory default backplane jumpers disable redundant Fieldbus A/B paths. The termination assembly rear header lacks built-in field fusing; add inline fuses to each DO circuit to prevent terminal base damage during field shorts.❗ Terminal / Cable Incompatibility: Thin 18 AWG wiring on high-current DO terminals creates excessive voltage drop at full 2 A channel load. Use minimum 14 AWG stranded copper for all field load runs longer than 15 m.❗ Power Supply Mismatch: Calculate total rack DC draw with 20% headroom. Four of these modules on one Compact 200 backplane pull 28 W combined; undersized rack power supplies trigger intermittent channel switching faults under peak interlock cycling.❗ ESD Damage: Always deploy an anti-static mat in low-humidity winter cabinet environments. Static discharge to exposed gold backplane connectors destroys channel isolation circuits with no visible exterior damage to the aluminum housing.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- FCP280 Controller → : Direct drop-in replacement — no backplane or TA wiring edits required
- FCP270 Controller → : Direct drop-in replacement — requires minimum controller firmware v11.0
- FBM241B Internal-Source Discrete I/O → : Needs Adaptation — all DI/DO field excitation wiring must be reworked for external power
- FBM201 8-Channel Analog Input → : Incompatible — analog measurement vs discrete interlock switching hardware function split
- DeltaV M-Series Carrier → : Incompatible — proprietary 2 Mbps I/A HDLC Fieldbus backplane pinout mismatch
- Experion PKS I/O Chassis → : Incompatible — no native Compact 200 backplane bus support
Benchmarks
- Discrete channel scan cycle: 150 ms (simulated full load, all 16 DI/DO channels cyclic switching)
- Comms throughput: 2 Mbps (redundant proprietary I/A HDLC Fieldbus backplane protocol)
- Output short-circuit auto-recovery time: < 100 ms after field wiring fault clears
