Product Core Brief

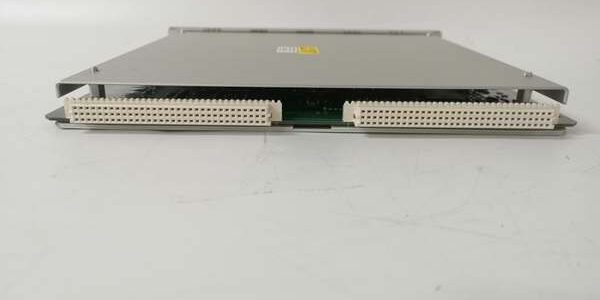

• Model: 3500/60, Front Card PWA 163179-01 (replaces legacy 133811-01)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Matching Rear I/O Bases (select per site wiring):
  1. 133827-01: RTD/TC non-isolated, external screw terminal termination
  2. 136711-01: RTD/TC non-isolated, internal integrated IS barrier termination for hazardous zones
• Core Function: Six-channel dedicated thermal monitor that reads 3/4-wire RTDs and multi-type thermocouples to track bearing metal, lube oil, stator winding, and auxiliary process temperatures for turbomachinery safety interlock logic. This variant has no per-channel 4–20 mA recorder outputs (distinguished from 3500/61 with analog recorder outputs).
• Product Type: Single full-height hot-swappable split front/rear base thermal input module, supports mixed RTD/TC mixed channel configuration
• Key Specs: 6 independent thermal channels | Mixed RTD/TC compatibility | 7 W typical backplane power draw
• Condition: New Original factory sealed with OEM lead time; fully bench-calibrated refurbished surplus stock ships within 3 working days



Key Technical Specifications

1. Channel Layout: 6 fully independent configurable thermal input channels, mix RTD and thermocouple types across slots
2. Supported Transducers
   • RTD: 100Ω Pt385/Pt392, 120Ω Ni, 10Ω Cu (3-wire / 4-wire)
   • Thermocouple: Type E, J, K, T
3. Temperature Measurement Range
   • Pt100 RTD: −200°C ~ +700°C
   • Type K TC: −18°C ~ +1370°C
4. Measurement Accuracy: ±0.2% full scale ±2 digits at 25°C ambient
5. Input Impedance: 10 MΩ per lead channel, suppresses cable leakage interference
6. Power Consumption: 7 W steady-state load from rack 24 VDC backplane bus
7. Galvanic Isolation: Channel-to-rack ground isolation via rear base variant; TC-isolated rear bases add 250 Vdc channel-to-channel separation
8. Operating Ambient: −30 °C to +65 °C standard cabinet; conformal coated variants extend to −40 °C to +85 °C offshore platforms
9. Physical Dimensions: 241.3 mm H × 24.4 mm W × 241.8 mm D; unit weight 0.80 kg
10. Compliance Standards: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nC IIC T4, SIL 2 functional safety
11. Front Panel Indicators: OK (module healthy), TX/RX (backplane communication), individual channel fault LED for open/shorted sensor wiring
12. Critical Difference vs 3500/61: 3500/60 163179-01 has no built-in analog recorder outputs for DCS local trending; all thermal data transmits over rack backplane only.



Product Introduction

Steam, gas turbines and multi-stage compressors rely on continuous bearing metal and lube oil temperature monitoring to detect bearing degradation and overheating before catastrophic machine failure. This module consolidates six thermal sensor inputs into one rack slot and delivers user-programmable Alert/Danger temperature trip states to rack relay modules for hardwired ESD shutdown logic.Its modular rear terminal base allows maintenance crews to rework RTD/TC field cabling, add intrinsic safety barriers, or repair damaged screw terminals without extracting the front measurement card during planned equipment outages. This hardware cannot process proximity probe, seismic velocity, or standalone 4–20 mA analog PV signals; dedicated 3500/40M, 3500/44M, and 3500/62 modules handle vibration and process variable measurements separately.Not recommended for sites requiring local analog 4–20 mA temperature trending to chart recorders; select the 3500/61 recorder-output variant instead.



Key Selling Points & Differentiators

1. Six-channel high-density thermal input consolidates bearing, lube oil and auxiliary winding temperature sensors, cutting rack slot consumption compared to single-channel standalone temperature converters.
2. Mixed RTD/TC channel programming enables flexible layout matching turbine multi-bearing thermal monitoring layouts without multiple separate monitor modules.
3. Native TMR triple redundant voting capability meets API 670 single-point failure elimination rules for critical high-temperature machinery emergency shutdown interlock design.
4. Two rear base options (standard external / internal IS barrier) adapt to both safe-area power plants and classified refinery/offshore hazardous zone wiring layouts.
5. Refurbished surplus units carry a 12-month functional warranty covering thermal signal conditioning, backplane communication, and channel open/short fault detection circuits; factory-new OEM assemblies ship with a full 36-month manufacturer warranty.
6. Per-channel configurable time-delay alarm suppression filters transient temperature spikes from startup load ramps to eliminate nuisance annunciations without masking sustained overheating faults.



Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM M-series production archives to filter counterfeit assemblies. Complete visual audit of PCB RTD/TC analog front-end traces, rear base screw terminals, front panel status LEDs, and rack edge gold pins; timestamp photos of connector corrosion or cracked PCB substrates.
2. Live Bench Test: Mount the front card and matched rear base (external 133827-01 or IS internal 136711-01) into a calibrated full-size test rack powered by a Fluke 115 24VDC supply. Run continuous 24-hour thermal soak test with simulated Pt100 and Type K thermocouple signals across all six channels to validate linear temperature conversion and stable backplane polling to the Slot1 TDI module.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between each thermal input terminal and rack protective ground; verify all open-circuit and short-circuit sensor fault detection trigger thresholds match OEM factory limits.
4. Firmware & Layout Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and archive a blank six-channel RTD/TC temperature threshold configuration file to offline storage. Record baseline LED behavior during TMR voting simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject full-range simulated RTD and thermocouple signals to validate linear temperature calculation across full operating range. Separate front card and rear base into anti-static foam inserts, attach serialized QC Passed tag with timestamped calibration test data, and seal inside rigid shock-resistant cardboard crates. Bench calibration logs and raw temperature readouts are available to buyers on formal written request.



Technical Risk Avoidance Section

❗ Firmware Rev Mismatch RiskMismatched rack-wide M-series firmware revisions trigger permanent TX/RX communication faults and disable TMR redundant voting and temperature fault trip logic. Export the full rack firmware stack before swapping the module; never deploy mixed legacy/M-series firmware sets across rack slots.Field anecdote: A combined-cycle power plant installed mismatched firmware and lost all turbine bearing over-temperature shutdown interlocks for 11 hours during startup commissioning.

❗ Rear Terminal Base Mismatch RiskPairing the front card with unmatched I/O base breaks six-channel RTD/TC wiring pinouts and removes built-in channel surge suppression, creating erratic temperature readings and false over-temperature fault alarms. Confirm rear base PN matches site wiring safety classification (standard external or internal IS barrier).

❗ Thermal Sensor Cable Ground Loop RiskDual-point grounding of RTD/TC shield wiring creates circulating low-frequency noise that skews temperature conversion values, triggering persistent nuisance high-temperature annunciations.Prevention: Terminate sensor cable shield at only the rack side of the wiring run, floating machine-side shield termination.

❗ ESD Damage RiskUngrounded field tools touching exposed rear base terminal pins discharge static and destroy delicate thermal ADC front-end circuits; OEM PCB repair labor costs exceed $1,550 for production M-series hardware. Prevention: Mandate grounded ESD wrist straps for all rack module insertion and removal service work while the chassis is energized.

❗ Missing Thermal Threshold Configuration Backup RiskFailing to export validated sensor type, scaling, Alert/Danger temperature limit values prior to replacement resets all machinery overheat protection logic to blank factory defaults, removing critical turbomachinery safety interlock coverage.

Quick summary: Pair only with OEM matched rear terminal base, unify rack firmware versions, implement single-point sensor cable shield grounding, and retain stored channel temperature configuration backups to eliminate nearly all common thermal measurement field failures for this component.



FAQ

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front thermal monitor card is rated for hot-swap without full rack power loss. Existing channel temperature alarm states hold their last valid condition during removal and replacement, so machinery over-temperature trip interlocks do not drop out mid-service. The rear terminal base cannot be removed while energized.

Q: What is the core difference between 3500/60 163179-01 and 3500/61 temperature modules?A: The 3500/60 variant has no per-channel 4–20 mA analog recorder outputs; all temperature data transmits only over the rack backplane bus. The 3500/61 adds dedicated analog recorder terminals for local chart recorder trending.

Q: What warranty coverage applies to refurbished surplus inventory of this thermal monitor?A: Refurbished assemblies carry a 12-month functional warranty covering RTD/TC signal conditioning circuits, backplane communication, and sensor fault detection hardware. Cosmetic surface scuffs and minor terminal screw wear are excluded from claim eligibility. Factory-new OEM units ship with a full 36-month manufacturer warranty.

Q: Will rack power cycling erase stored sensor type assignments, temperature alarm thresholds, and TMR voting configurations?A: No. All thermal linearization parameters, trip limits, and redundant voting logic write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved temperature measurement configuration data.

Q: Can proximity probes, Velomitor seismic sensors, or standalone 4–20 mA process transmitters be wired directly to this module’s input channels?A: No. This hardware exclusively processes RTD and thermocouple thermal signals. Vibration and analog process variable measurements require dedicated 3500/40M, 3500/44M, or 3500/62 monitor modules respectively.

Q: I operate an auxiliary pump rack that only requires three bearing temperature channels. Is leaving the remaining three input channels unused acceptable?A: Yes. Unused channels draw negligible backplane power and create no cross-channel temperature signal interference. Install factory blank terminal jumpers on empty channel terminals to block dust ingress inside the rear base and reduce long-term insulation degradation.

Q: Does this module locally store long-term temperature trending logs or transient over-temperature fault snapshots on its PCB?A: No. All historical thermal trending data and timestamped over-temperature fault event logs are captured and stored exclusively by the rack’s Slot1 TDI master communication module; this component only performs real-time temperature conversion and fault flag generation with no local data retention capability.
