Product Core Brief

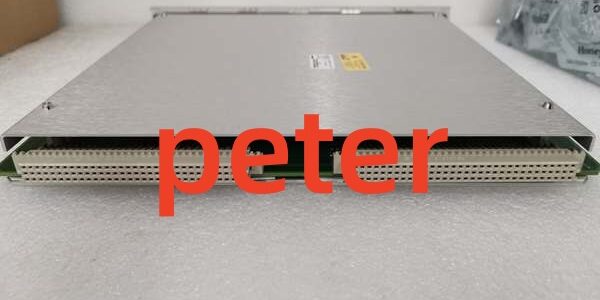

• Model: 3500/50 Tachometer Module, Front Card PWA 133388-02
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Matching Rear Terminal Base: PN 133389-01 standard external termination; PN 136712-01 internal IS barrier variant for hazardous classified zones
• Core Function: Dual-channel speed monitor that accepts proximity Keyphasor probes or magnetic pickups to measure shaft RPM, acceleration, rotation direction, zero-speed state, and overspeed trip conditions. It outputs synchronized Keyphasor timing signals to the rack backplane for all vibration monitor cards, eliminating separate 3500/25 Keyphasor modules in many rack layouts.
• Product Type: Single full-height hot-swappable split front/rear base M-series tachometer module with dual independent pulse input channels
• Key Specs: 2 isolated pulse input channels | 1–120,000 RPM measurement range | 5.8 W typical backplane power draw
• Condition: New Original factory sealed with OEM lead time; fully bench-calibrated refurbished surplus stock ships within 3 working days



Key Technical Specifications

1. Channel Layout: Two fully independent pulse input channels for primary/backup redundant speed monitoring
2. Supported Transducers: 3300 XL eddy-current Keyphasor proximity probes, variable reluctance magnetic speed pickups
3. Input Signal Range: +10 VDC to −24 VDC differential pulse input; 20 kΩ standard input impedance
4. Speed Measurement Range: 1 RPM ~ 120,000 RPM configurable via rack software
5. Measurement Accuracy: ±0.01% full scale reading; resolution down to 0.1 RPM
6. Configurable Monitoring Modes (4 selectable channel profiles)
   • Overspeed / underspeed setpoint + speed band alarm
   • Speed setpoint + zero-speed detection
   • Speed setpoint + rotor acceleration alarm
   • Speed setpoint + reverse rotation detection
7. Built-in Peak Hold Function: Stores maximum forward speed, peak reverse speed, or total reverse rotation count; user resettable for post-fault diagnostics
8. Backplane Keyphasor Distribution: Generates standardized synchronous timing pulse shared across all rack vibration monitors for orbit, polar plot, order spectrum analysis
9. Response Time: <10 ms fast pulse capture for rapid overspeed trip response
10. Power Consumption: 5.8 W steady-state load drawn from rack 24 VDC backplane bus
11. Galvanic Isolation: 1500 VAC separation barrier between each field pulse input and rack ground bus
12. Operating Ambient: −30 °C to +65 °C standard cabinet; conformal coated variants extend range to −40 °C to +85 °C offshore platforms
13. Physical Dimensions: 241.3 mm H × 24.4 mm W × 241.8 mm D; full assembly weight 0.82 kg
14. Compliance Standards: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 Ex nC IIC T4, SIL 2 functional safety for overspeed protection
15. Front Panel Indicators: OK (module health), TX/RX (backplane communication), CH FAULT (open/shorted speed sensor wiring)



Product Introduction

Steam and gas turbines, high-speed compressors and generators require redundant high-speed overspeed protection and synchronous phase reference for vibration diagnostics. This dual-channel tachometer consolidates two critical functions into one rack slot: accurate shaft speed safety monitoring and rack-wide Keyphasor timing distribution.Its dual-channel design enables primary/backup speed sensor deployment to meet API 670 single-point failure elimination rules for critical overspeed trip logic. The split rear terminal base lets maintenance crews rework Keyphasor/magnetic pickup cabling or install intrinsic safety barriers without extracting the front measurement card during planned machinery outages.This hardware cannot process RTD, thermocouple, 4–20mA process variable, or raw seismic vibration signals; dedicated 3500/60, 3500/62, and 3500/44M modules handle thermal, analog PV and casing vibration measurements separately.Not recommended for racks requiring dedicated independent Keyphasor redundancy separate from speed protection; deploy standalone 3500/25 half-height Keyphasor modules for fully isolated phase reference layouts.



Key Selling Points & Differentiators

1. Dual-channel redundant speed input eliminates single-sensor failure risk, supporting TMR triple redundant overspeed voting for critical turbomachinery safety interlocks.
2. Integrated rack-wide Keyphasor signal generation removes the need for a separate 3500/25 Keyphasor half-height module, saving valuable rack slot space.
3. Multi-function programmable logic covers overspeed, zero-speed, acceleration and reverse rotation detection in a single module without external PLC logic.
4. Two rear base options (standard safe-area external termination / internal IS barrier) adapt to power plant control rooms and classified refinery/offshore hazardous zone wiring layouts.
5. Refurbished surplus units carry a 12-month functional warranty covering pulse signal conditioning, backplane Keyphasor generation, and channel fault detection circuits; factory-new OEM assemblies ship with a full 36-month manufacturer warranty.
6. Peak hold maximum speed memory retains critical pre-trip rotation data for root-cause analysis after machinery shutdown events.



Quality Transparency SOP

1. Incoming Verification: Cross-reference serial numbers against OEM M-series production archives to filter counterfeit assemblies. Complete visual audit of PCB pulse conditioning traces, rear base screw terminals, front panel BNC pulse ports and status LEDs, and rack edge gold pins; timestamp photos of connector corrosion or cracked PCB substrates.
2. Live Bench Test: Mount the front card and matched rear base (standard PN 133389-01 or IS barrier PN 136712-01) into a calibrated full-size test rack powered by a Fluke 115 24VDC supply. Run continuous 24-hour thermal soak test with simulated Keyphasor pulse signals across both channels to validate RPM linearity, stable backplane Keyphasor timing output and consistent polling to the Slot1 TDI module.
3. Electrical Tests: 500 V megohmmeter insulation test confirms resistance >10 MΩ between each pulse input terminal and rack protective ground; verify all open-circuit and overvoltage sensor fault detection trigger thresholds match OEM factory limits.
4. Firmware & Layout Backup: Flash the latest OEM M-series compatible firmware revision, log exact version numbers, and archive a blank dual-channel speed alarm and Keyphasor configuration file to offline storage. Record baseline LED behavior during overspeed TMR voting simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject full-range simulated pulse signals to validate linear RPM conversion and clean backplane Keyphasor square-wave output. Separate front card and rear base into anti-static foam inserts, attach serialized QC Passed tag with timestamped speed linearity test data, and seal inside rigid shock-resistant cardboard crates. Bench calibration logs and raw RPM readouts are available to buyers on formal written request.



Technical Risk Avoidance Section

❗ Firmware Rev Mismatch RiskMismatched rack-wide M-series firmware revisions break backplane Keyphasor timing distribution and disable overspeed TMR voting logic, leading to missing orbit diagnostics and disabled turbine overspeed trip protection. Unify all rack module firmware versions before replacement; never mix legacy/M-series firmware across slots.Field anecdote: A combined-cycle power plant installed mismatched firmware and lost all turbine overspeed protection and shaft orbit diagnostic data for 10 hours during startup commissioning.

❗ Rear Terminal Base Mismatch RiskPairing the front card with unmatched I/O base breaks dual pulse channel wiring pinouts and removes built-in channel surge suppression, creating erratic RPM readings and false overspeed fault annunciations. Confirm rear base PN matches site wiring safety classification (standard external or internal IS barrier).

❗ Dual-End Ground Loop Wiring RiskGrounding Keyphasor/magnetic pickup coaxial cable shielding at both the rear terminal base and machinery mounting boss creates circulating low-frequency ground loop noise that distorts pulse zero-crossing timing, skewing RPM values and corrupting orbit plots.Prevention: Terminate cable shield at only the rack side of the wiring run, floating machine-side shield termination.

❗ ESD Damage RiskUngrounded field tools touching exposed rear base terminal pins or front BNC pulse ports discharge static and destroy delicate pulse conditioning ADC front-end circuits; OEM PCB repair labor costs exceed $1,550 for production M-series hardware. Mandate grounded ESD wrist straps for all energized rack module service work.

❗ Missing Speed & Keyphasor Configuration Backup RiskFailing to export channel pulse count scaling, overspeed Alert/Danger limits, and Keyphasor timing parameters prior to replacement resets all machinery speed protection and vibration diagnostic logic to blank factory defaults, removing critical turbomachinery safety interlock coverage.

Quick summary: Pair only with OEM matched rear terminal base, unify rack firmware versions, implement single-point sensor cable shield grounding, and retain stored speed/Keyphasor configuration backups to eliminate nearly all common speed measurement and phase reference field failures for this component.



FAQ

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the front tachometer card supports hot-swap without full rack power loss. Existing overspeed alarm states hold their last valid value during swap, so machinery overspeed trip interlocks do not drop out mid-service. The rear terminal base cannot be removed while energized.

Q: Can this module replace standalone 3500/25 Keyphasor modules to reduce rack slot consumption?A: Yes, when configured to distribute backplane Keyphasor timing pulses, it eliminates the requirement for separate half-height 3500/25 Keyphasor cards, freeing half-height slots for auxiliary monitoring hardware.

Q: What warranty coverage applies to refurbished surplus inventory of this dual-channel tachometer module?A: Refurbished assemblies carry a 12-month functional warranty covering pulse signal conditioning circuits, backplane Keyphasor generation, and channel fault detection hardware. Cosmetic surface scratches and minor terminal screw wear are excluded from warranty coverage. Factory-new OEM units carry a full 36-month manufacturer performance warranty.

Q: Will rack power cycling erase stored pulse count scaling, overspeed alarm thresholds, and Keyphasor timing configurations?A: No. All RPM linearization parameters, trip limits and phase reference settings write to non-volatile onboard flash memory; power loss or full rack shutdown will not clear saved speed measurement configuration data.

Q: Can RTD temperature sensors, 4–20mA process transmitters or Velomitor seismic vibration sensors be wired directly to this module’s input channels?A: No. This hardware exclusively processes pulse signals from proximity Keyphasor probes and magnetic speed pickups. Thermal, analog process variable and casing vibration measurements require dedicated 3500/60, 3500/62 or 3500/44M monitor modules respectively.

Q: I operate an auxiliary pump rack that only requires one speed sensor channel. Is leaving the second pulse input channel unused acceptable?A: Yes. Unused channels draw negligible backplane power and create no cross-channel timing interference. Install factory blank terminal jumpers on empty pulse terminals to block dust ingress inside the rear base and reduce long-term insulation degradation.

Q: Does this module locally store transient overspeed fault snapshots or long-term RPM trending logs on its PCB?A: No. All historical speed trending data and timestamped overspeed fault event logs are captured and stored exclusively by the rack’s Slot1 TDI master communication module; this component only performs real-time RPM calculation and backplane Keyphasor signal distribution with no local data retention capability.
