Product Core Brief

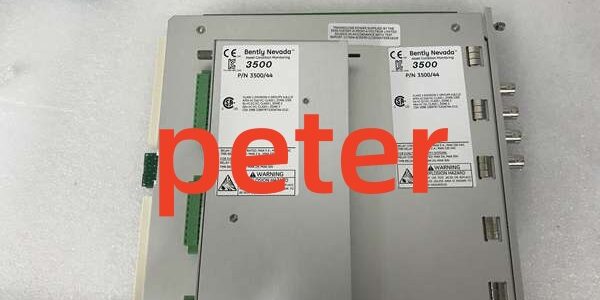

• Model: 3500/44-01-00 (front card PN 140734-03, integrated internal terminal I/O)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Four-channel aeroderivative gas turbine seismic monitor with built-in terminal termination, dual Keyphasor inputs for synchronous 1X vibration tracking
• Product Type: Single-slot hot-swappable Aero GT monitor with internal screw terminals (no separate rear base)
• Key Specs: 4 seismic measurement channels | Dual Keyphasor pulse inputs | 7.7W typical power draw
• Note: OEM discontinued; only refurbished and limited new surplus inventory available, replaced by split front+base variant 3500/44M 176449-03.

Key Technical Specifications

• Channel count: 4 independent seismic signal channels with integrated internal screw terminal termination
• Supported transducers: Velomitor velocity sensors, industrial accelerometers paired with interface modules 86517 / 86497
• Keyphasor capacity: 2 dedicated pulse input circuits for independent per-channel-pair 1X tracking filters
• Frequency response range: 4 Hz to 30 kHz (-3dB); configurable high-pass filters (25/75/100 Hz), fixed 10-pole 200 Hz low-pass rolloff
• Transducer excitation: 23 VDC nominal supply, max 43 mA drive current per active channel
• Analog recorder output: Isolated proportional 4–20 mA per channel, 550 Ω output load impedance limit
• Power consumption: 7.7 W typical continuous draw from 24 VDC rack backplane bus
• Galvanic isolation: 1500 VAC channel-to-backplane isolation, per-channel TVS overvoltage surge protection
• Operating temperature: -30°C to +65°C standard ambient; conformal coated variant rated -40°C to +85°C for offshore cabinets
• Alarm logic: Multi-mode Alert/Danger threshold sets with user-configurable time delay for startup/base-load turbine operating profiles
• Compliance certifications: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 hazardous cabinet rated
• Physical form factor: Standard single 3500 rack slot, fully hot-swap compatible without full rack de-energization

Product Introduction

This legacy Aero GT monitor integrates signal termination hardware directly onto the front card PCB, eliminating the separate rear terminal base required on the updated 44M variant. It processes high-frequency casing velocity and acceleration signals unique to lightweight aeroderivative gas turbines and uses dual Keyphasor references to isolate synchronous rotor imbalance vibration signatures.Its primary field drawback is fixed internal terminal layout. Field wiring rewrites are required for rack upgrades, and integrated terminals cannot be isolated or barrier-modified for hazardous zone wiring without full module replacement.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against OEM discontinued production logs to screen counterfeit hardware. Complete physical audit of PCB traces, internal terminal screw blocks, front buffered coaxial jacks, and channel status LEDs; capture timestamped photos of all connector wear or corrosion.
2. Live Power-On Testing: Mount the unit into a calibrated test 3500 rack fed by a Fluke 115 24VDC supply. Execute a continuous 24-hour load test with simulated Velomitor and Keyphasor pulse signals to validate stable power draw and consistent backplane data polling to the rack Slot1 TDI module.
3. Electrical Isolation Testing: Use a megohmmeter to verify insulation resistance >10 MΩ between all signal terminal circuits and rack protective ground; confirm zero leakage current across isolation barriers during full signal swing simulation.
4. Firmware & Config Backup: Flash the last OEM-compatible firmware revision, log exact version numbers, and archive a blank multi-mode alarm configuration file to offline storage. Record baseline LED behavior during 1X tracking filter activation for post-replacement fault comparison.
5. Final QC & Packaging: Inject calibrated velocity test signals across all four channels to validate linear 4–20 mA recorder output scaling. Place the unit in anti-static foam, attach serialized QC test tag with full test timestamp, and seal inside ESD shielding packaging for transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide firmware revisions trigger permanent TX/RX communication faults and disable dual Keyphasor 1X tracking logic. Export the full rack firmware stack before swapping the unit; never deploy mixed-revision firmware sets across rack slots.❗ Terminal Layout Incompatibility Risk: This integrated-terminal unit cannot be directly swapped with split front+base 44M hardware. Existing rear base wiring harnesses will not mate, requiring full field transducer cable re-termination and layout redesign.❗ Dual-End Ground Loop Wiring Risk: Grounding Velomitor cable shielding at both the card’s internal screw terminals and turbine junction boxes creates circulating ground loop current that distorts casing velocity signals, triggering random nuisance Danger shutdown trips during turbine startup VFD transients.❗ ESD Damage Risk: Ungrounded field tools discharge static through exposed internal terminal pins, destroying high-frequency ADC front-end circuits; OEM PCB repair costs exceed $1,800 for obsolete discontinued hardware.❗ Missing Multi-Mode Alarm Backup Risk: Failing to export startup/load-specific vibration threshold sets prior to replacement resets all protection limits to factory defaults, leaving aeroderivative turbine transient operating states unprotected from unfiltered alarm logic.

4-Step Replacement Guide

1. Pre-install: Attach ESD wrist strap, photograph internal terminal transducer wiring layout, export full rack multi-mode alarm configuration, and record active rack firmware revision set. Capture front LED channel status baseline for post-swap validation.
2. Removal: Unlatch front panel lock levers to disengage backplane pins, slide the unit straight out of its assigned rack slot without bending PCB edge connectors; label each field wire to match terminal positions from pre-install photos.
3. Install: Align the replacement unit’s backplane pins with the rack bus, slide fully into the slot, squeeze extraction levers to lock contact pins, and re-terminate Velomitor/Keyphasor wiring strictly matching the photographed terminal layout.
4. Power-on Test: Restore rack power, upload saved multi-mode rack configuration, inject calibrated velocity test signals to all four seismic channels, confirm accurate 1X tracking via Keyphasor input, validate linear 4–20mA DCS trending and functional Alert/Danger alarm state triggers before returning the aeroderivative turbine to automatic operation.

FAQ (Frequently Asked Questions)

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the hardware is rated for hot-swap without full rack power loss. Hardwired channel alarm relay trip logic remains active during removal and replacement, so turbine machinery protection interlocks do not drop out mid-swap.

Q: Can this assembly be a direct drop-in replacement for the split-base 3500/44M variant?A: No direct swap possible. This unit uses fully integrated internal terminals with no separate rear I/O base; existing wiring harnesses for the newer 44M model cannot connect, requiring complete cable re-termination and rack wiring redesign.

Q: What warranty coverage applies to refurbished surplus inventory?A: Refurbished stock carries a 12-month functional warranty covering PCB signal conditioning, backplane communication, and analog output circuits; cosmetic scratches and terminal screw wear are excluded from claims. No factory-new OEM stock is available for this discontinued part number.

Q: Will rack power cycling erase stored multi-mode alarm threshold configurations?A: No. All mode-based vibration limits, filter settings, and Keyphasor tracking parameters write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved measurement configuration data.

Q: Does this module independently store transient vibration waveform snapshots on its own PCB?A: No. High-resolution post-fault waveform capture functionality is managed exclusively by the rack’s Slot1 TDI master module; this hardware only processes steady-state seismic measurements and mode-based threshold alarm logic.

Q: Can proximity eddy-current probes be wired directly to this monitor’s signal channels?A: No. This card is designed exclusively for Velomitor velocity and accelerometer seismic inputs; it lacks the oscillator excitation circuitry required to drive 3300 XL proximity probes. Proximity measurements require a separate 3500/42M monitor slot.

Q: What happens if one seismic channel suffers an open or shorted transducer fault?A: The faulty channel triggers a front-panel OK LED fault state and logs the error to rack memory. Remaining three fully functional seismic channels and both Keyphasor tracking inputs continue normal measurement and alarm operation without cross-channel signal interference.
