Product Core Brief

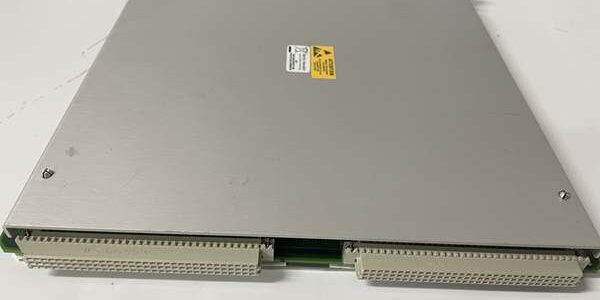

• Model: 3500/53 133388-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection TSI Rack System
• Core Function: Single-channel electronic overspeed monitor that processes pulse signals from proximity Keyphasors or magnetic pickups for machinery overspeed safety shutdown protection
• Product Type: Single-slot hot-swappable legacy overspeed card with integrated internal screw terminals (no separate rear barrier base)
• Key Specs: 1 speed input channel | <30ms overspeed trip latency | 8W typical power draw
• Note: Discontinued legacy design, replaced by split front/base 3500/53M variants; factory-refurbished and limited surplus stock only.

Key Technical Specifications

• Input channel count: 1 dedicated speed measurement channel with integrated onboard screw terminal termination
• Supported transducers: 3300 XL proximity Keyphasor probes, variable reluctance magnetic speed pickups
• Input signal range: +10 VDC to -24 VDC pulse input, internal overvoltage clamping protection
• Input impedance: 20 kΩ differential signal impedance
• RPM measurement range: 0–99,999 RPM, up to 20 kHz maximum input pulse frequency
• Speed accuracy: ±0.1 RPM below 10,000 RPM; ±0.01% full scale above 10,000 RPM
• Trip response latency: <30 ms for signal frequencies exceeding 300 Hz
• Power consumption: 8 W typical continuous draw from rack 24 VDC backplane supply
• Analog recorder output: Isolated 4–20 mA proportional RPM signal for DCS/historian trending
• Relay contact rating: SPDT 5 A @ 250 VAC, configurable normally energized / de-energized logic
• Galvanic isolation: 1500 VAC channel-to-backplane isolation, per-input TVS surge suppression
• Operating temperature: -30°C to +65°C standard; conformal coated variant rated -40°C to +85°C offshore service
• Safety compliance: API 670, API 612, CE EMC, UL Class I Div 2, ATEX Zone 2 hazardous cabinet rated
• Physical form factor: Standard single 3500 rack slot, fully hot-swap capable without full rack de-energization

Product Introduction

This legacy single-channel overspeed safety monitor converts pulse frequency signals from shaft speed sensors into calibrated RPM values and executes software-configurable Alert and Danger overspeed threshold trip logic. It operates independently of rack master communication to maintain hardwired shutdown relay functionality during network outages.Its core field limitation is single-channel hardware architecture. SIL3-compliant 2oo3 redundant voting schemes require three separate slots populated with matching units, consuming extra rack space compared to multi-channel successor hardware.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers against OEM discontinued production archives to reject counterfeit hardware. Complete physical audit of PCB traces, internal terminal screw blocks, front panel status LEDs, and relay terminal contacts; capture timestamped photos of corrosion or connector wear.
2. Live Power-On Testing: Install the device in a calibrated test 3500 rack powered by a Fluke 115 24VDC supply. Run a continuous 24-hour load test with variable frequency pulse signal simulation to validate stable power draw and consistent backplane data polling to the rack Slot1 TDI.
3. Electrical Isolation Testing: Use a megohmmeter to confirm insulation resistance >10 MΩ between all speed signal terminals and rack protective ground; verify zero leakage current across isolation barriers during full pulse swing simulation.
4. Firmware & Config Backup: Flash the last OEM-compatible firmware revision, log exact version numbers, and archive a blank overspeed threshold configuration file to offline storage. Record baseline LED behavior during overspeed trip trigger simulation for post-replacement fault comparison.
5. Final QC & Packaging: Inject calibrated pulse frequencies across full RPM operating range to validate linear 4–20 mA recorder output scaling. Place the unit in anti-static foam, attach serialized QC test tag with full test timestamp, and seal inside ESD shielding packaging for transit.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware Rev Mismatch Risk: Mismatched rack-wide firmware revisions trigger permanent TX/RX communication faults and disable overspeed trip logic. Export the full rack firmware stack before swapping the unit; never deploy mixed-revision firmware sets across rack slots.❗ Terminal Layout Incompatibility Risk: This integrated-terminal unit cannot be directly swapped with split front+base 53M hardware. Existing rear barrier base wiring harnesses will not mate, requiring full field speed sensor cable re-termination.❗ Dual-End Ground Loop Wiring Risk: Grounding speed transducer coaxial cable shielding at both the card’s internal screw terminals and machinery junction boxes creates circulating ground loop current that distorts pulse waveform integrity, triggering random nuisance overspeed Danger shutdown trips during turbine startup VFD transients.❗ ESD Damage Risk: Ungrounded field tools discharge static through exposed internal terminal pins, destroying pulse conditioning ADC front-end circuits; OEM PCB repair costs exceed $1,700 for obsolete discontinued hardware.❗ Missing Overspeed Setpoint Backup Risk: Failing to export validated Alert/Danger RPM threshold values prior to replacement resets all safety trip limits to factory defaults, leaving rotating machinery unprotected from catastrophic overspeed failure.

4-Step Replacement Guide

1. Pre-install: Attach ESD wrist strap, photograph internal terminal speed sensor wiring layout, export full rack overspeed configuration, and record active rack firmware revision set. Capture front LED channel status baseline for post-swap validation.
2. Removal: Unlatch front panel lock levers to disengage backplane pins, slide the unit straight out of its assigned rack slot without bending PCB edge connectors; label each field wire to match terminal positions from pre-install photos.
3. Install: Align the replacement unit’s backplane pins with the rack bus, slide fully into the slot, squeeze extraction levers to lock contact pins, and re-terminate Keyphasor/magnetic pickup wiring strictly matching the photographed terminal layout.
4. Power-on Test: Restore rack power, upload saved overspeed rack configuration, inject calibrated pulse test signals across full RPM range, validate linear 4–20mA DCS trending and functional Alert/Danger relay trip actuation before returning the turbine/compressor to automatic operation.

FAQ (Frequently Asked Questions)

Q: Does this unit support live hot-swap operation with the rack energized?A: Yes, the hardware is rated for hot-swap without full rack power loss. Hardwired overspeed alarm relay trip logic remains active during removal and replacement, so machinery emergency shutdown interlocks do not drop out mid-swap.

Q: Can this assembly be a direct drop-in replacement for the split-base 3500/53M variant?A: No direct swap possible. This unit uses fully integrated internal terminals with no separate rear I/O base; existing wiring harnesses for the newer 53M model cannot connect, requiring complete cable re-termination and rack wiring redesign.

Q: What warranty coverage applies to refurbished surplus inventory?A: Refurbished stock carries a 12-month functional warranty covering PCB pulse conditioning, backplane communication, analog output, and relay circuits; cosmetic scratches and terminal screw wear are excluded from claims. No factory-new OEM stock is available for this discontinued part number.

Q: Will rack power cycling erase stored overspeed threshold configurations?A: No. All RPM trip limits, pulse count scaling, and relay logic parameters write to non-volatile onboard flash memory; power loss or full rack shutdown does not clear saved safety configuration data.

Q: Does this module independently store transient speed waveform snapshots on its own PCB?A: No. High-resolution post-fault pulse waveform capture functionality is managed exclusively by the rack’s Slot1 TDI master module; this hardware only processes steady-state RPM measurements and overspeed threshold alarm logic.

Q: Can multiple speed probes be wired in parallel to this single-channel input?A: No. The single input circuit cannot support parallel transducer wiring; parallel pulse signals create waveform distortion and false RPM readings. Redundant speed monitoring requires separate units in independent rack slots.

Q: What happens if the single speed channel suffers an open or shorted transducer fault?A: The faulty channel triggers a front-panel OK LED fault state and logs the error to rack memory. No active speed measurement or overspeed protection remains available until the transducer fault is cleared or the unit is replaced.
